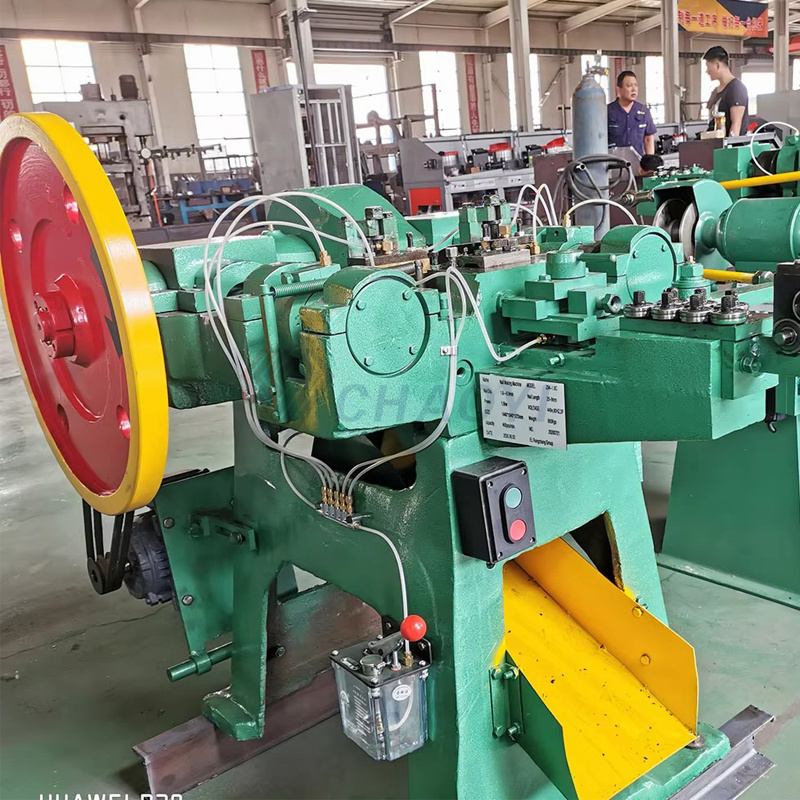

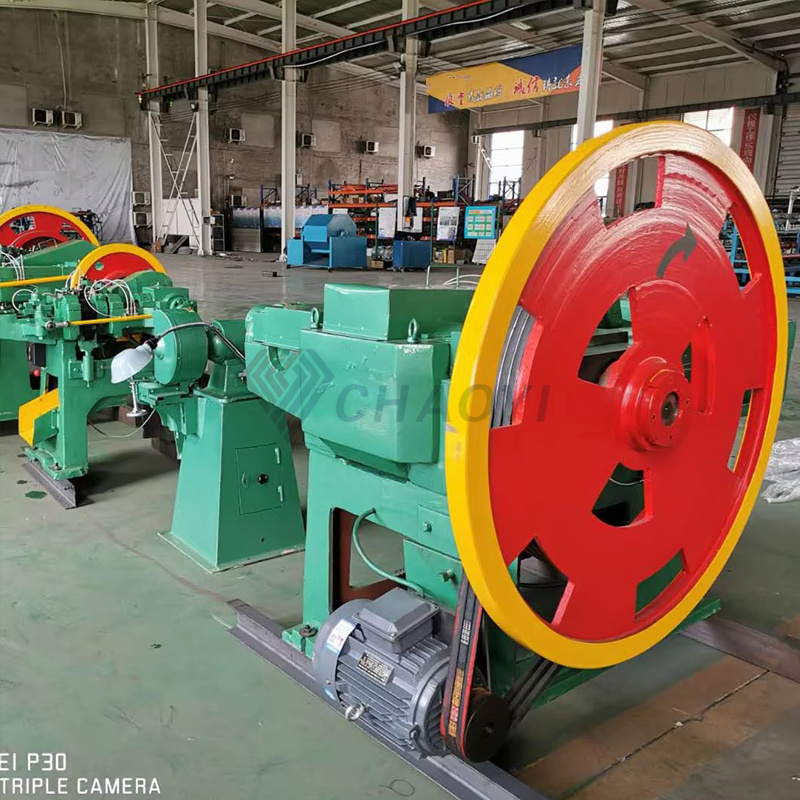

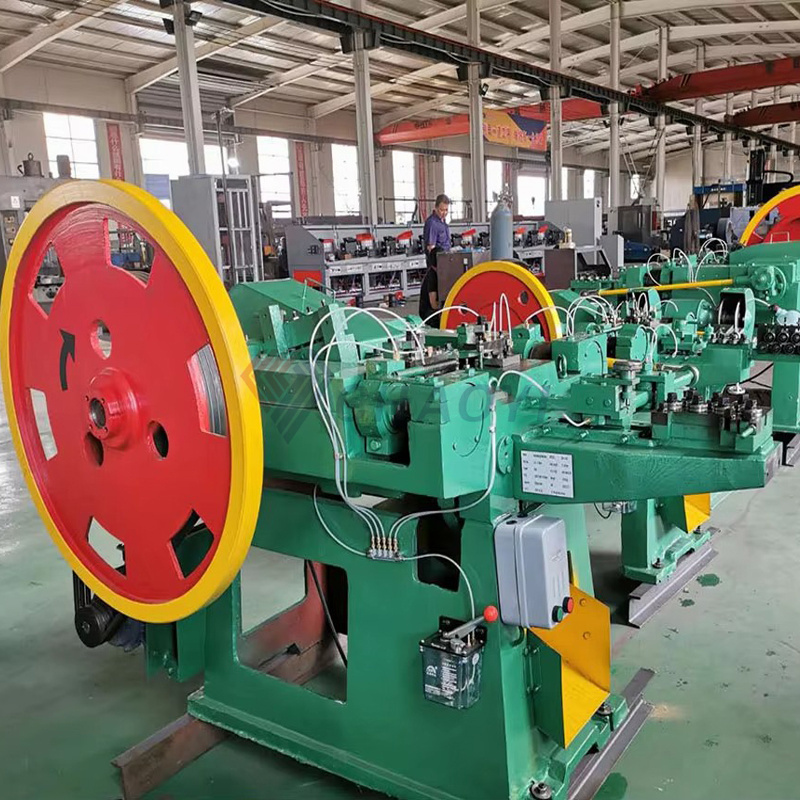

Traditional nail making machine Z94
Still deciding? Get samples first, Contact US !
View similar products
- Product description
-
Fully Automatic Operation: This steel wire high speed nail making machine is designed to operate automatically, allowing for increased efficiency and reduced labor costs. It is ideal for users seeking to streamline their manufacturing process.
Versatile Nail Length Options: The machine can produce nails of varying lengths, ranging from 1 inch to 6 inches, catering to diverse customer requirements.
Durable and Reliable Components: The machine features high-quality core components, including an engine, bearing, gearbox, motor, pressure vessel, gear, and pump, ensuring a long-lasting and trouble-free operation.
Global Support and Warranty: As a China supplier, we provide after-sales service from engineers available to service machinery overseas, along with a 1-year warranty on core components, giving customers peace of mind.
Compliance with International Standards: The machine is certified to ISO 9001:2008, guaranteeing its adherence to international quality standards and ensuring a high level of performance and reliability.
Machine Features
● Common wire nail making machine adopts plunger type structure and oil pipe lubricating structure to ensure the high working speed, low noise and less impact.
● Making Machine can produce a variety of ordinary nails, rivets, cement nails and other round nails, In particular, it is possible to manufacture oil felt nails and other profiled nails for high quality welding machines and nail guns.
● The machine load is small, stable and reliable operation.Automatic refueling system, the use of are design, the strength of long life and so on. The aircraft design is advanced, compact structure, beautiful appearance .
Technical Parameter
Model Z94-1C Z94-2C Z94-3C Z94-4C Z94-5.5C Max. dia. of nail 2.0mm 2.8mm 3.4mm 4.5mm 5.5mm Min. dia. of nail 0.8mm 1.2mm 1.8mm 2.8mm 3.7mm Max. Length of nail 25mm 50mm 75mm 100mm 150mm Min. length of nail 10mm 16mm 30mm 50mm 80mm Motor power 1.5kw 2.2kw 3kw 4kw 5.5kw Nail making speed 500-550pcs/min 360-400pcs/min 320pcs/min 260pcs/min 180pcs/min L*W*H 1300*900*1100mm 1700*1000*1200mm 1830*1300*1470mm 2050*1560*1420mm 2500*1600*1700mm Weight 0.6tons 0.8tons 1.15tons 1.95tons 2.05tons Product Details

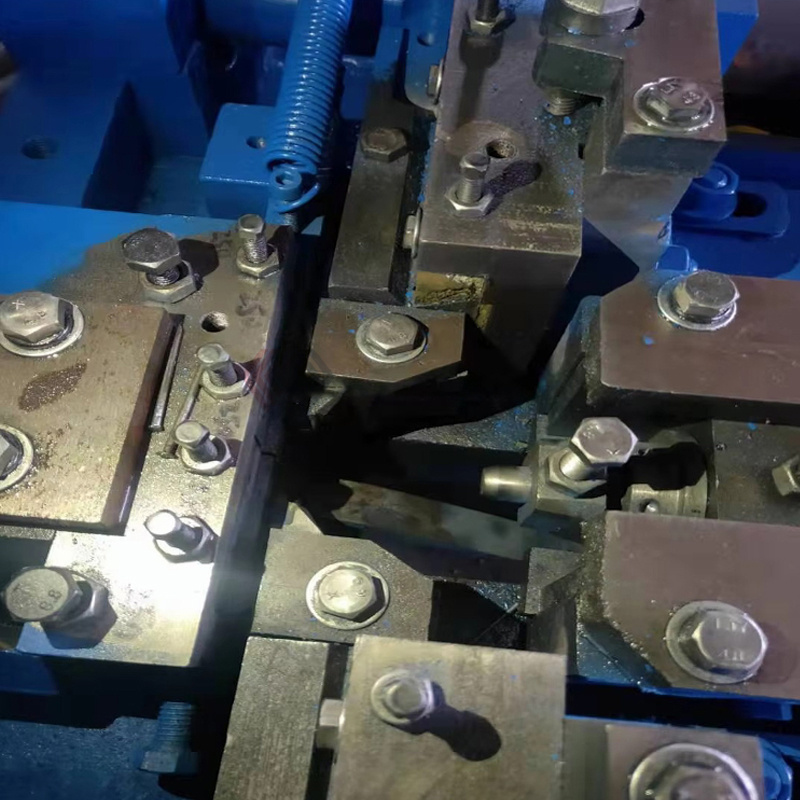

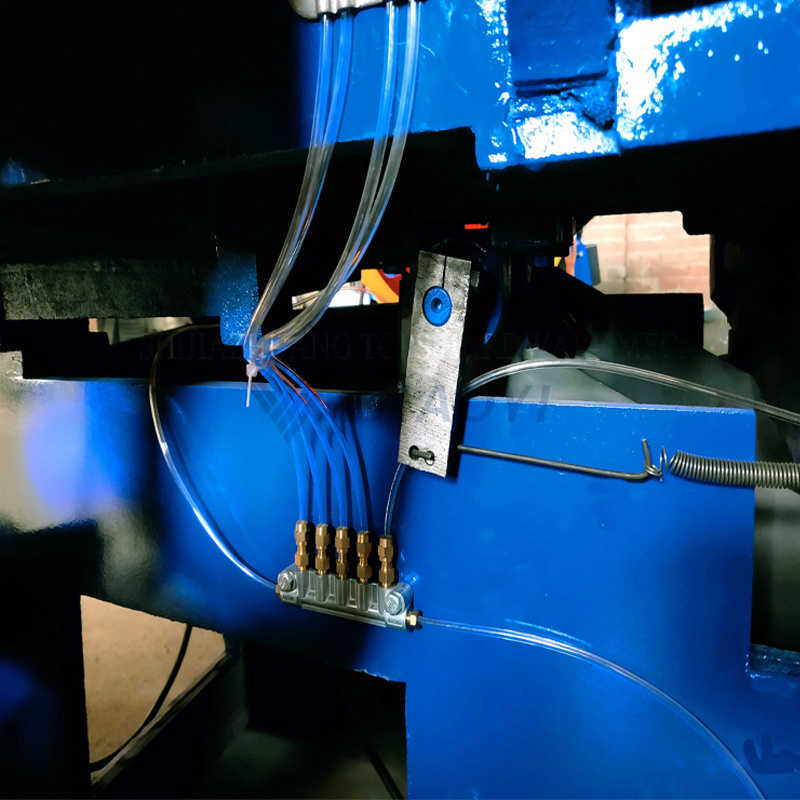

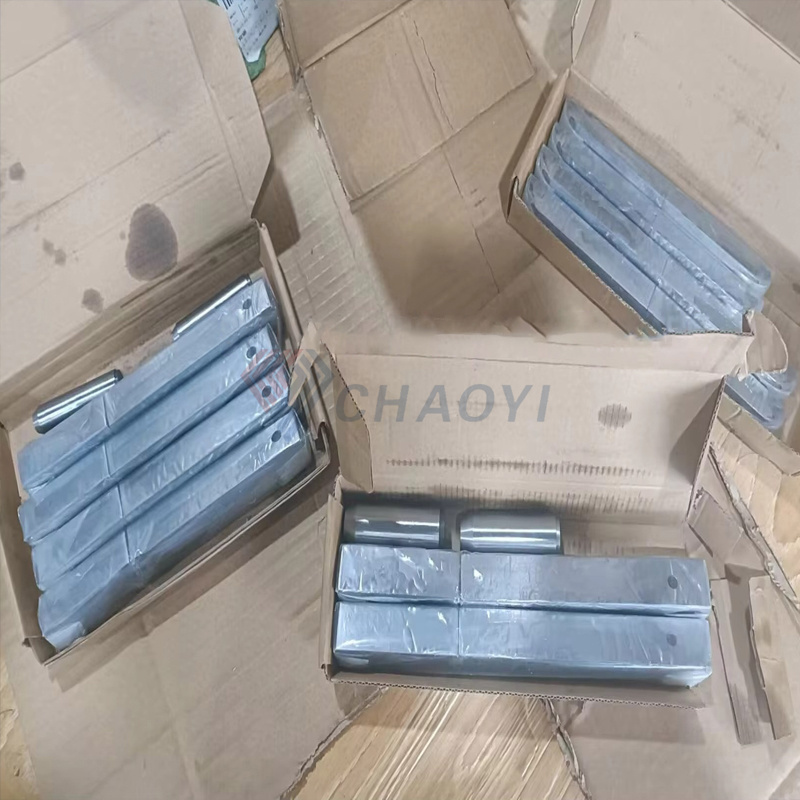

Cutting knife, mold and punch pin Machine cutting,punch,mold Oil circuit Processing of nail making machine

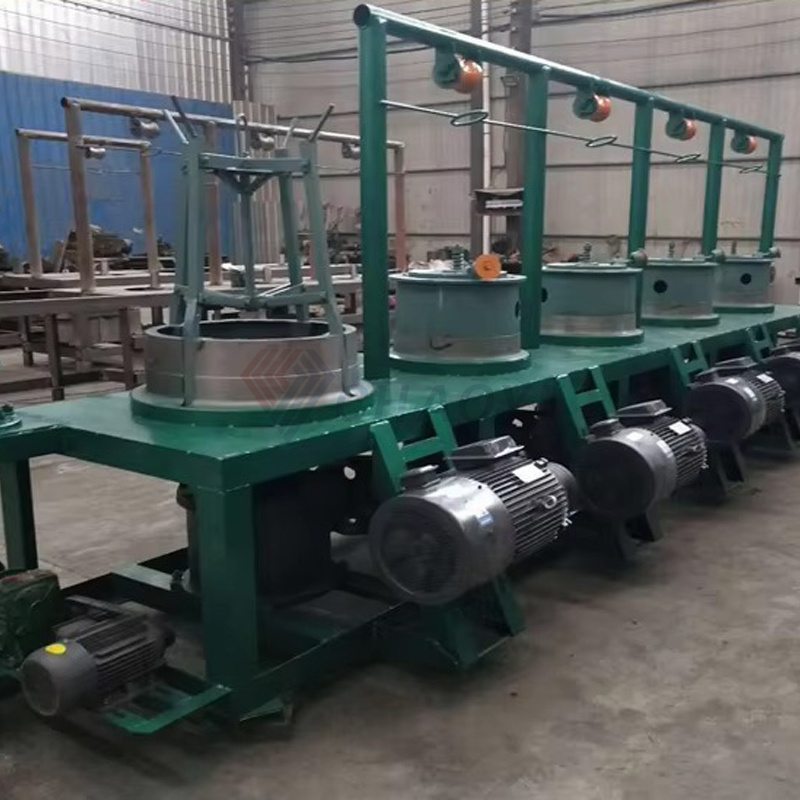

Scrap or new steel wire→ wire drawing machine→nail making → polishing → finishing nails
1.Brushed - to buy after the nail to determine what kind of bar after the use of nails, such as new steel bars, scrap steel, etc.
Waste bar drawing more trouble, as new steel so fast, but the cost of waste steel it is very ，The finished wire is brushed and the speed is quicker, eliminating some of the manpower. The speed of the nail is also very fast.
2.Nail Making - the wire after a good, through the automatic wire head, and then pull the wire and then send the head inside the machine to produce a good semi-finished product nails.
3.Polished - put the finished semi-finished nail into the polishing machine inside the polishing, polishing machine into the sawdust, paraffin, gasoline and some chemical raw materials, after the impact of friction.
4.Packaging - the above three are important, the packaging can be based on the user's own needs from the tailored.
