  • Product description

  • ◆ The grassland fence machine is also called field fence machine,cattle fence machine or farm fence machine.

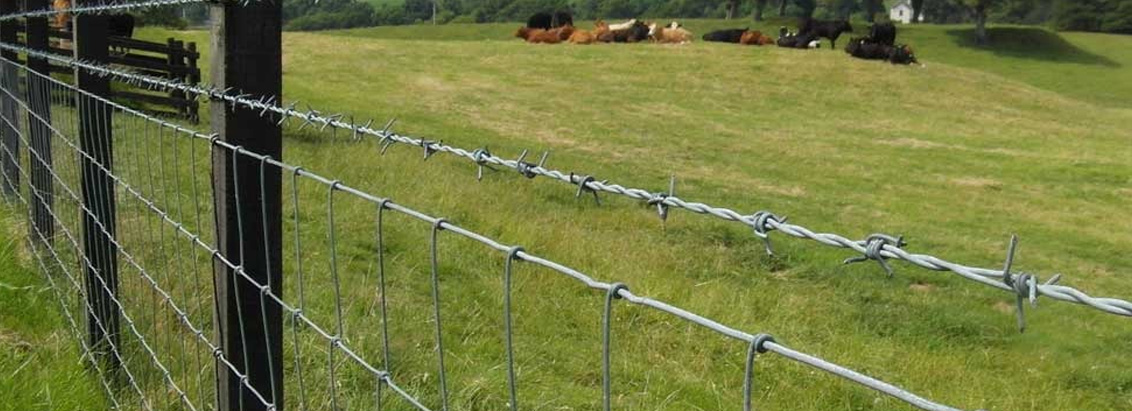

    ◆ This machine can produce grassland fence which is widely used for preventing environmental balance,preventing landslide and used as livestock fence.

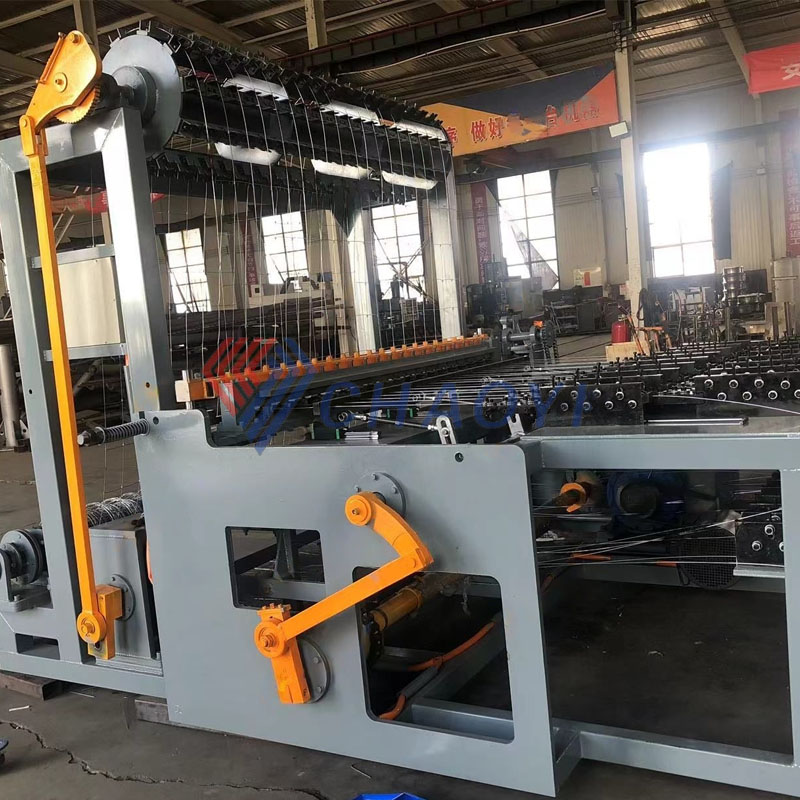

    ◆ Our machine adopts sophisticated computer control,advanced production technology.It can weave the weft and warp wire automatically together to form the field fences.It have the features of reliable property, high efficiency, simple operation, low-cost maintenance.The finished fence products enjoy innovative structure, firm and precise weaving, neat and beautiful and diverse specifications.



    Main features

    1 .Hinge joint field fence machine Adopts sophisticated computer control, advanced production technology.It can weave the weft and warp wire automatically together to form the field fences.

    2.Reliable property, high efficient, simple operation, low-cost maintenance.

    3.The finished products enjoy innovative structure, firm and precise weaving,neat and beautiful and diverse

    4.Specifications: Hinge Joint:savings worth the worth the price to have.

    5.Material:  galvanized wire, low-carbon steel wire, steel wire, iron wire

    Technical Parameter

     Parameter

    CY-1422

    CY-1652

    CY-1880

    CY-2000

    CY-2400

    Inner wire diameter

    1.8mm-2.5mm

    1.8mm-2.5mm

    1.8mm-2.5mm

    1.8mm-2.5mm

    1.8mm-2.5mm

    Edge wire diameter

    2.0mm-3.5mm

    2.0mm-3.5mm

    2.0mm-3.5mm

    2.0mm-3.5mm

    2.0mm-3.5mm

    Fence height

    1422mm

    1652mm

    1880mm

    2000mm

    2400mm

    Efficiency

    45row/min

    45row/min

    45row/min

    45row/min

    45row/min

    Motor

    5.5KW

    5.5KW

    7.5KW

    7.5KW

    11KW

    Voltage

    Can choose

    Can choose

    Can choose

    Can choose

    Can choose

    Distance of
    weft wires(mm)

    5cm-60cm

    5cm-60cm

    5cm-60cm

    5cm-60cm

    5cm-60cm

    Distance of
    warp wires(mm)

    89+89+101
    +114+127
    +140+153
    +178+203+229

    89+89+101
    +114+127
    +140+153
    +178+203
    +229+229

    89+89+101+114
    +127+140+153
    +178+203
    +229+229+229

    13x100
    +2x150
    +2x200

    15x100
    +2x150
    +3x200

    Weight

    3.2T

    3.4T

    3.9T

    4.1T

    4.9T

    Dimensions(m)

    2.9x3.0x2.4

    3.2x3.0x2.4

    3.4x3.0x2.4

    3.5x3.0x2.4

    3.9x3.0x2.4
    Note: Special type can be made China factory Security Construction Wire Mesh Fence Machine  according to client's requirement.

    Detail

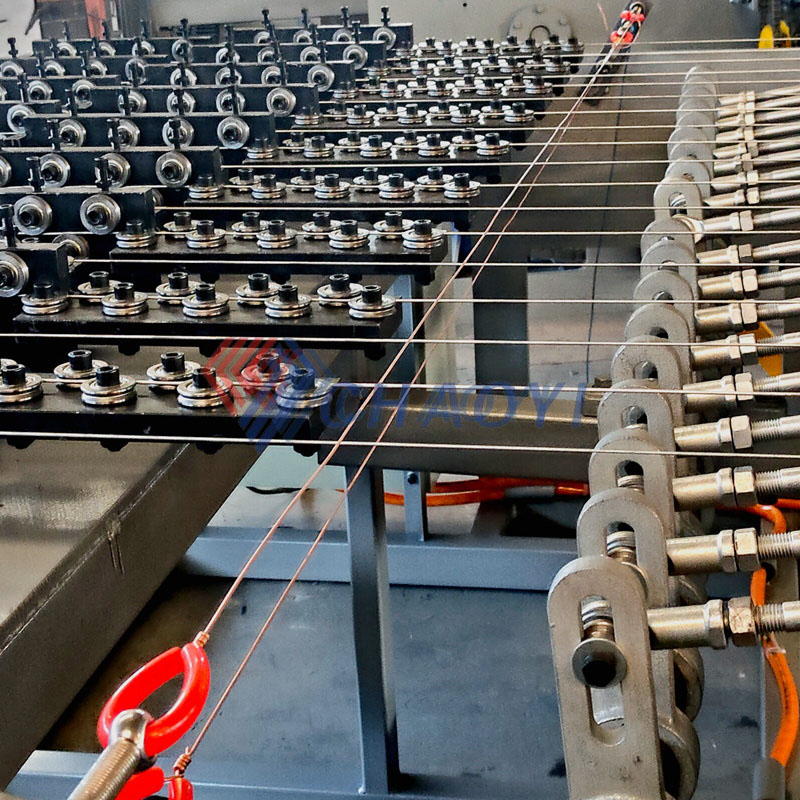

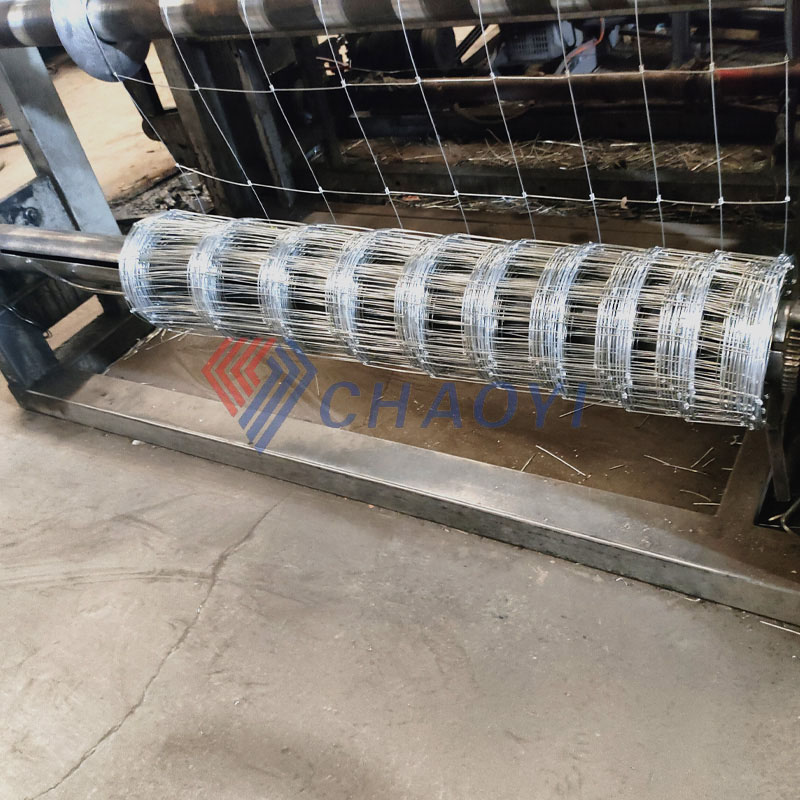

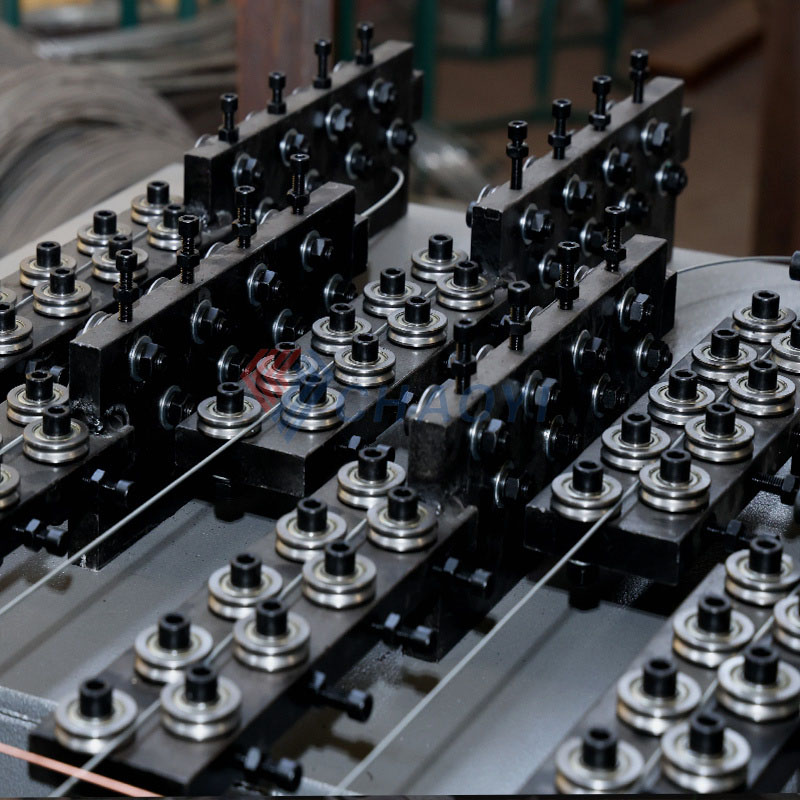

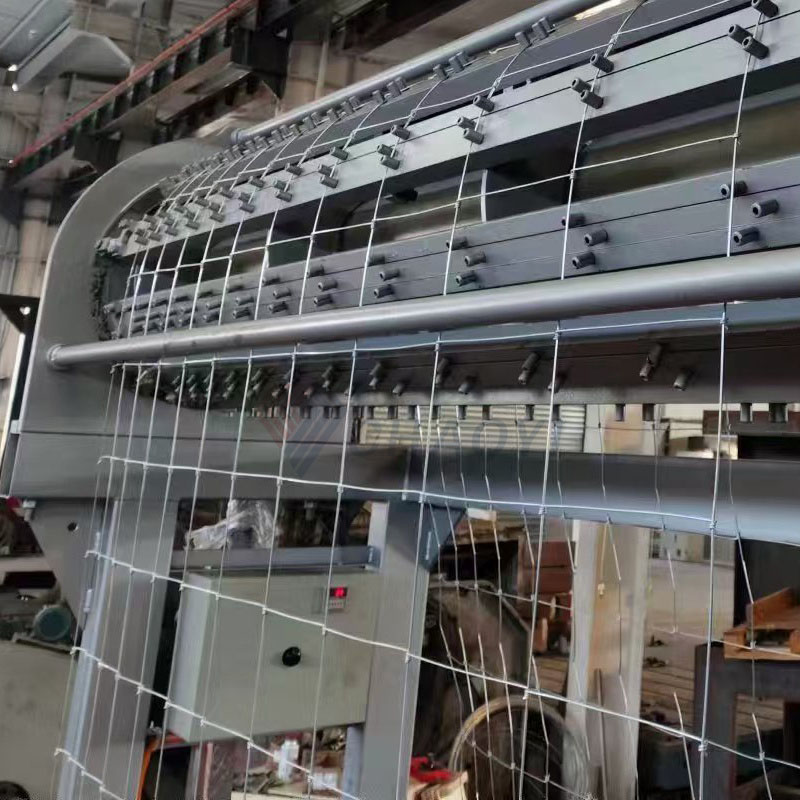

    Straightening rollers Wire feeding part    Rolling Fence Part

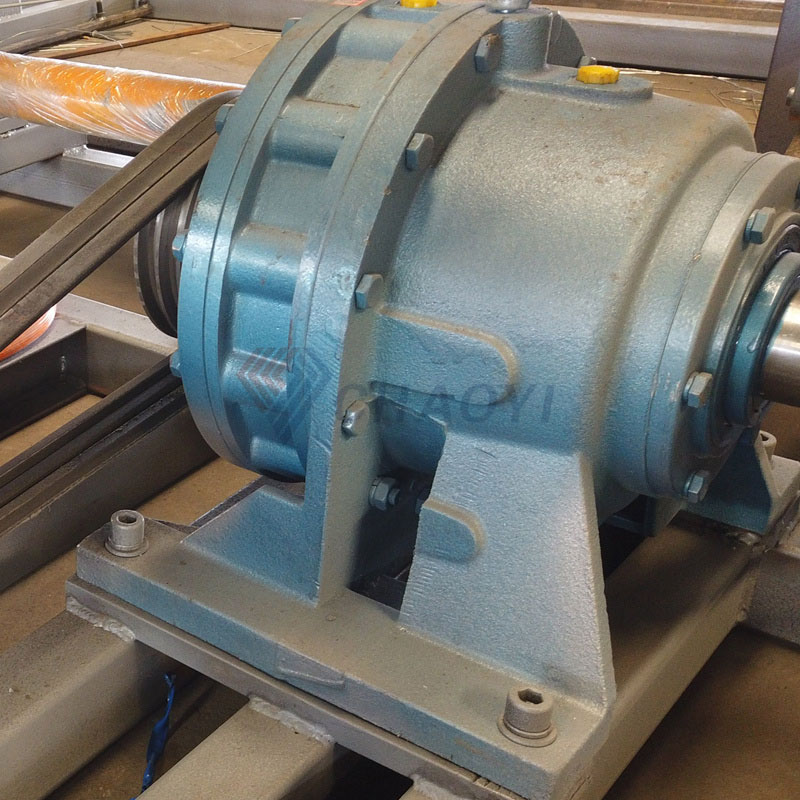

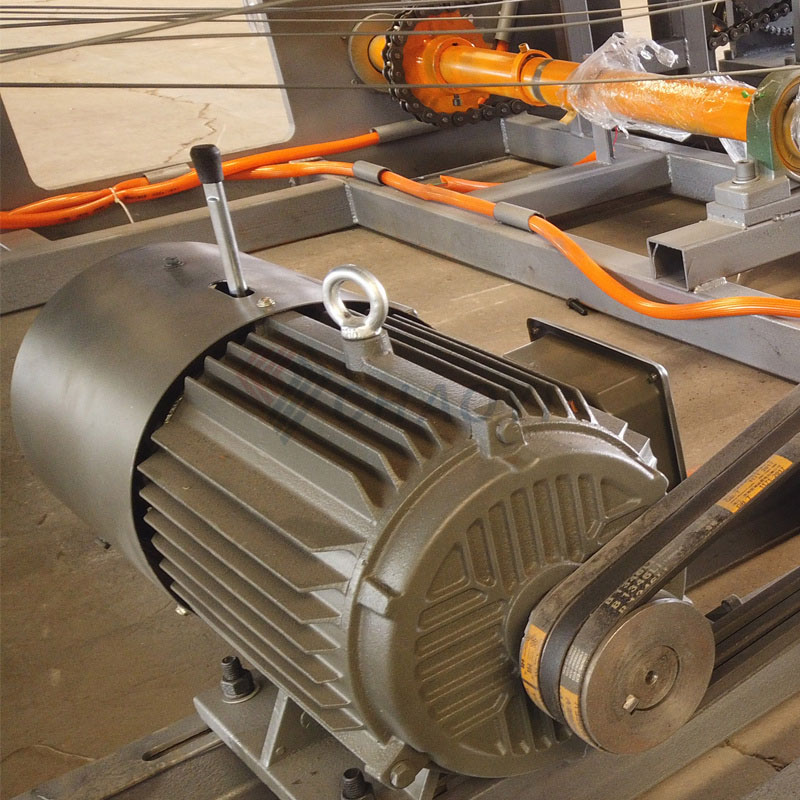

    Special sensors motor Reducer

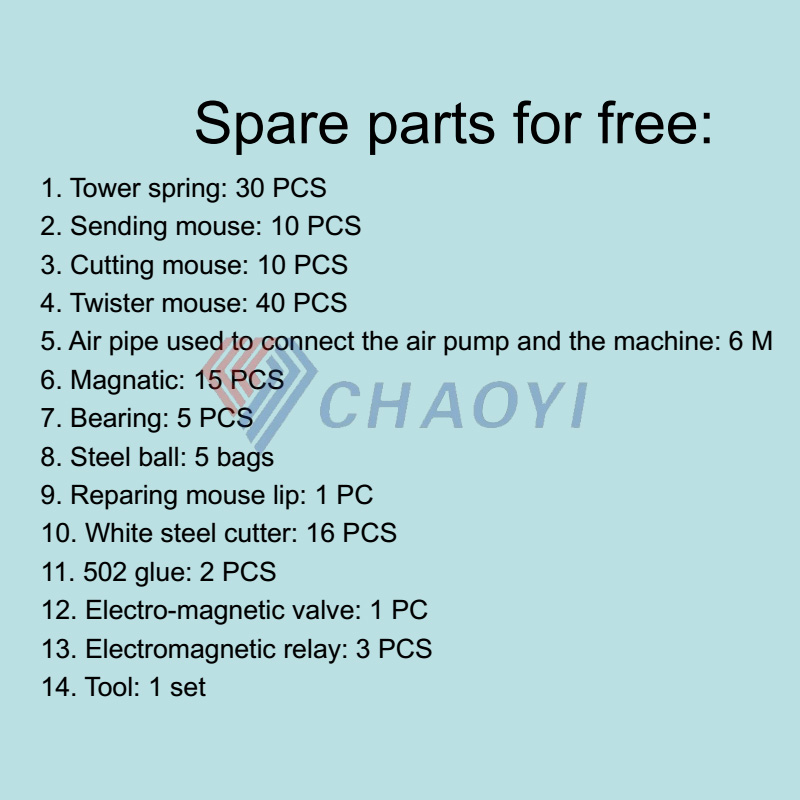

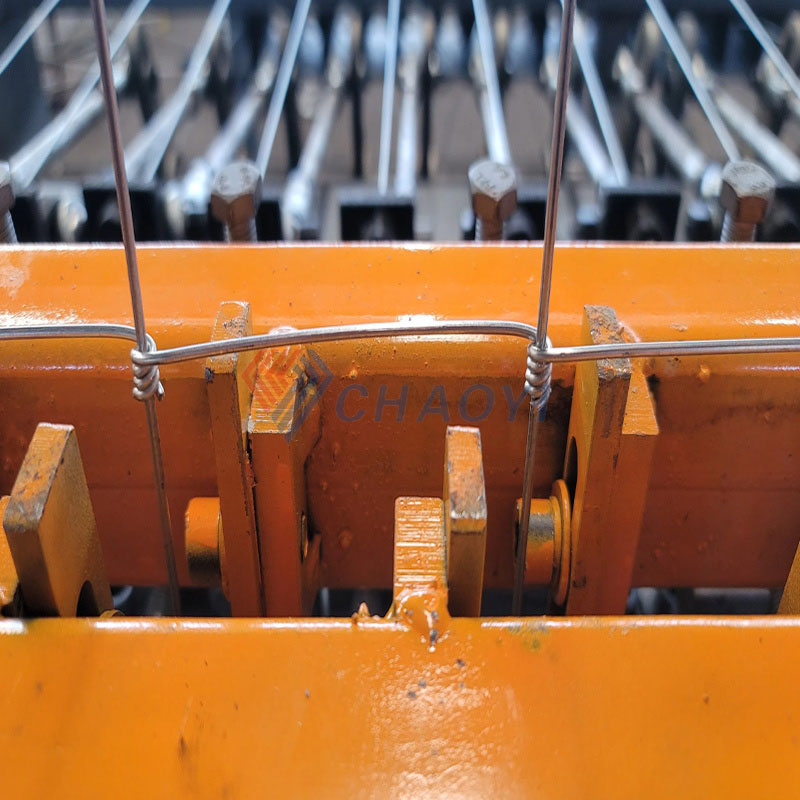

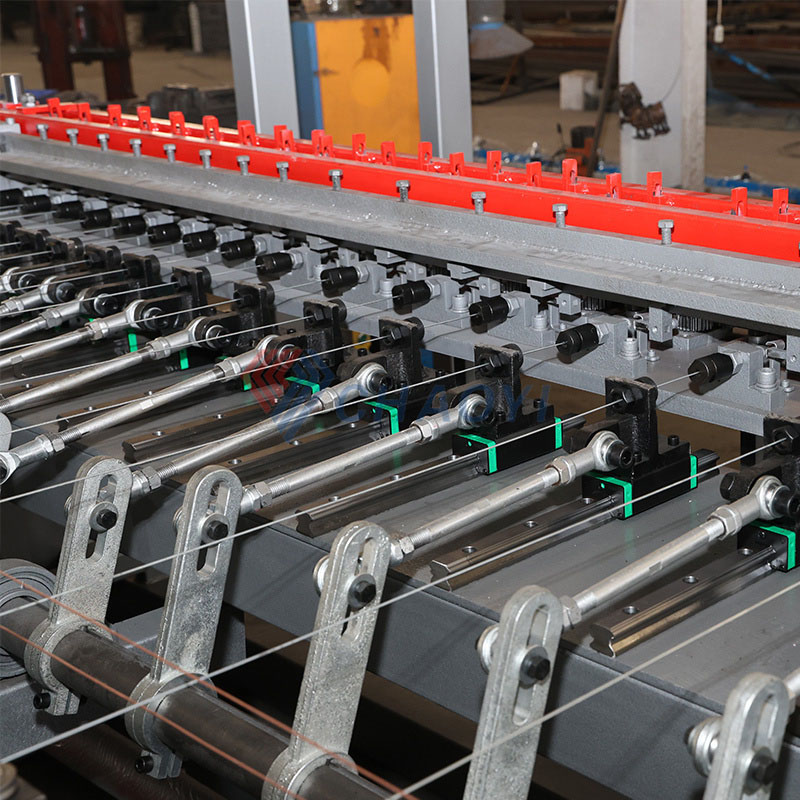

    Weaving Mesh Parts sparts parts     Can be customized according to your requirements
