- Product description
-
◆ Razor barbed wire fence is mainly used in the key project, which and razor wire concertina are the majority of our products. Razor barbed wire fence is general made of stainless steel blade or galvanized steel blade. Two pieces of stainless steel razor wire or zinc-coated razor wire can be bounded together by clips to make it stronger. The fence is mainly composed of very sharp points and arranged at intervals along the strands with beautiful outlook and practical property.
◆ The multiple blades of a razor wire fence are designed to inflict serious cuts on anyone attempting to climb through and therefore have a strong psychological deterrent effect. In many high-security applications, barbed tape supplanted barbed wire, which could be circumvented relatively quickly by humans with tools, while penetrating razor wire barriers without tools is very slow and difficult, giving security forces more time to respond. Razor wire contains a core hardened steel strip that is often under tension, so if cut, the recoil could cause the wire to unfurl and lash out, striking the cutter.
The razor wire fence adopts galvanized raw material will have a long service life. Besides, it has stainless steel blade and other materials.
Features: It has the characteristics like good deterrence effect, beautiful appearance, easily constructed, practical, corrosion resistance, anti-ageing and durable.The products offer good frightening result, sharp blades coming in the form of concertina by buckles bring very good result of frightening and stopping to the aggressive perimeter intruders.

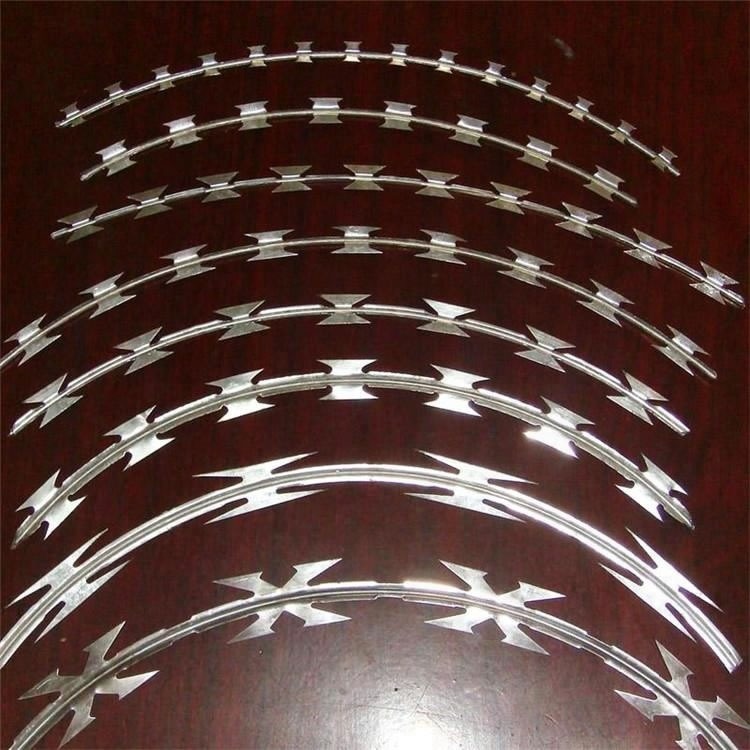

Process: The Razor Barbed Wire is consisted by the core wire and blades. Galvanized steel plate or stainless steel plate punched into certain forms then attached to the core wire in sharp angle to form the blades.
Technical Note: Razor barbed wire fence can be made according to the actual dimension of customer; the special specification is manufactured according to the drawing.
Technical Parameter
Standard Production Type Outside Diameter No. Of Loops Standard Length Per Coil Type Notes 450mm 33 7-8m CBT-60, 65 Single coil 500mm 56 12-13m CBT-60, 65 Single coil 700mm 56 13-14m CBT-60, 65 Single coil 960mm 56 14-15m BOT-12,22, 30 Single coil 450mm 56 8-9m BOT-12,22, 30 Cross type 500mm 56 9-10m BOT-12,22, 30 Cross type 600mm 56 10-11m BOT-12,22, 30 Cross type 600mm 56 8-10m BOT-12,22, 30 Cross type 700mm 56 10-12m BOT-12,22, 30 Cross type 800mm 56 11-13m BOT-12,22, 30 Cross type 900mm 56 12-14m BOT-12,22, 30 Cross type 960mm 56 13-15m BOT-12,22, 30 Cross type 980mm 56 14-16m BOT-12,22, 30 Cross type Reference Number
Blade Style
Thickness
Wire Dia
Barb
Barb
Barb
Length
Width
spacing
BTO-12
0.5±0.05
2.5±0.1
12±1
15±1
26±1
BTO-15
0.5±0.05
2.5±0.1
15±1
15±1
33±1
BTO-22
0.5±0.05
2.5±0.1
22±1
15±1
34±1
BTO-25
0.5±0.05
2.5±0.1
25±1
16±1
40±1
BTO-30
0.5±0.05
2.5±0.1
30±1
18±1
45±1
CBT-60
0.6±0.05
2.5±0.1
60±2
32±1
100±2
CBT-65
0.6±0.05
2.5±0.1
65±2
21±1
100±2
Applications
Razor wire fencing is widely used in government agencies, prisons, and military areas, etc. Especially in prisons, the unique structure of sharp blades. It often can be used with barbed wire together installed on the top of chain link fence and palisade fence for high security.

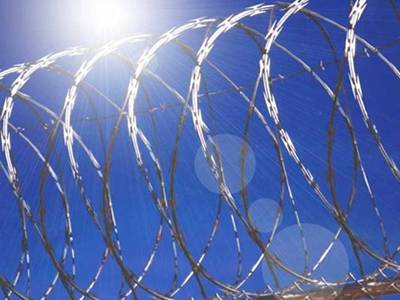

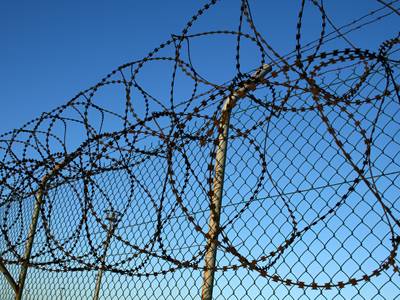

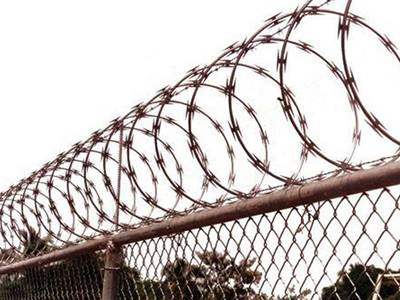

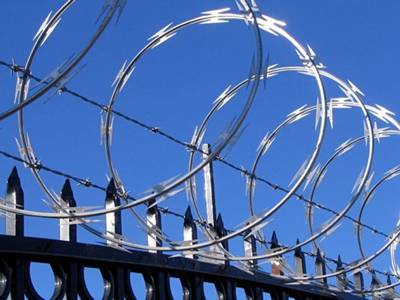

Spiral razor wire fence and barbed wire installed on the top of chain link fence form security fencing Cross concertina wire fence Galvanized razor wire coil fence with barbed wire fence through it, installed on palisade fence Razor barbed wire-chain link fence used as sports fence
