Fixed Knot Fence Machine LW3
Still deciding? Get samples first, Contact US !
View similar products
- Product description
-

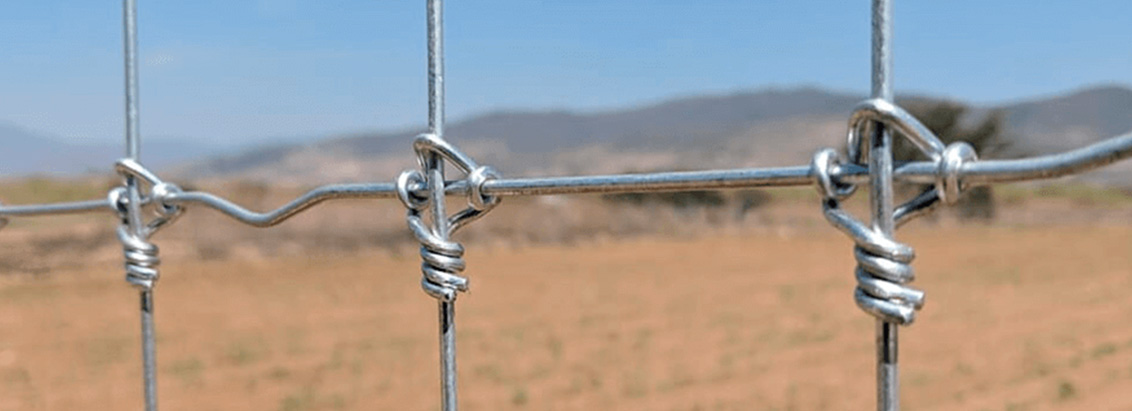

◆ Fixed Knot field fence machine is used to weave wrap-around fence. it can weave the diameter wire and weft wire together automatically. lt is developed after many years since our company has independent intellectual property rights, self-made.lt uses sophisticated computer control, advanced production technology.With novelty, high degree of automation, operational safety and reliability
Product Description
Model Parameters
18-2080
20-2438
Maximum Fence width
2080mm(82")
2438mm(96")
Maximum number of Line Wires
18
20
Line Wire Spacing
76mm(3")x6+100mm(4")x2+127mm(5")x2
+152mm(6")x3+178mm(7")x4
76mm(3")x6+100mm(4")x2+127mm(5")x2
+152mm(6")x3+178mm(7")x6
Line Wire Spacing
Min. 76mm (3’’). It can be increased by a multiple of 25mm (1'')
Stay Wire Spacing
75mm.150mm.225mm.300mm.450mm
Edge Wire Size
ф2.5mm-3.0mm
Line Wire Size
$2.50mm
Stay Wire Size
ф2.5mm
Knot Wire Size
ф2.0mm,$2.2mm
Line Wire Tensile Range
850-1350N/mm2
Stay Wire Tensile Range
525-850N/mm2
Knot Wire Tensile Range
400-525N/mm2
Max Length of roll
100m/roll
No.Strokes (Stay Wires) Per Minute
25row/min
Control system
servo motor,PLC
Total Machine weight
8T
10T
Approximate Floor Area Required
10mx22m
11mx22m
Machine Features
1 .Solid steel plate and gear boxes ensure levels of vibration are kept to a minimum in operation.
2.Precision running gear in all critical areas maintains reliability and quiet operation
3.Comprehensive level of sensing equipment in the tie feed, back frame, stay-feed and through-process sensors.These sensors pick up faults and missing wire which allows the machine to be confidently run with minimal supervision.
4.Auto Wire-Stripping-Table releases finished rolls to the pickup zone and re-sets for windup allows for the easy removal of any type of roll.
5.Setup allows minimum line wire spacing of 3" and produces a tight strong fence highly suitable for security,horse and pig fencing applications with the Fixed Knot, through to 48" for economy fences.
6.Replacement components available on request, with an extensive range of parts stocked and ready for direct shipment.
7.Automated Crimp Drum and Dual Stay Wire feed allows for rapid changeovers where frequent specification changes are required
8.Fixed knot fence machine specification ( Special specifications can be made by your requests)

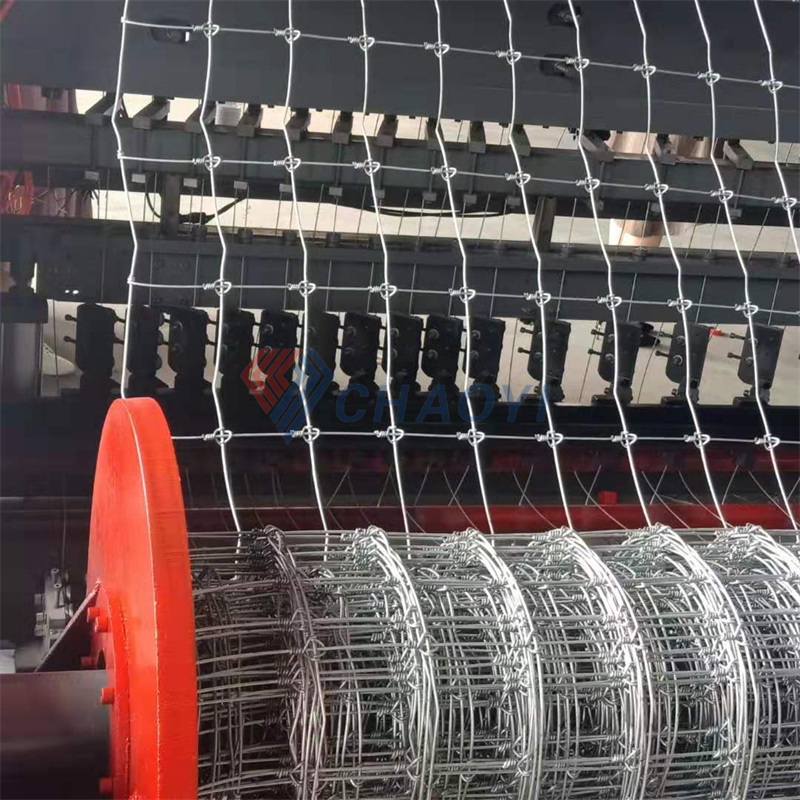

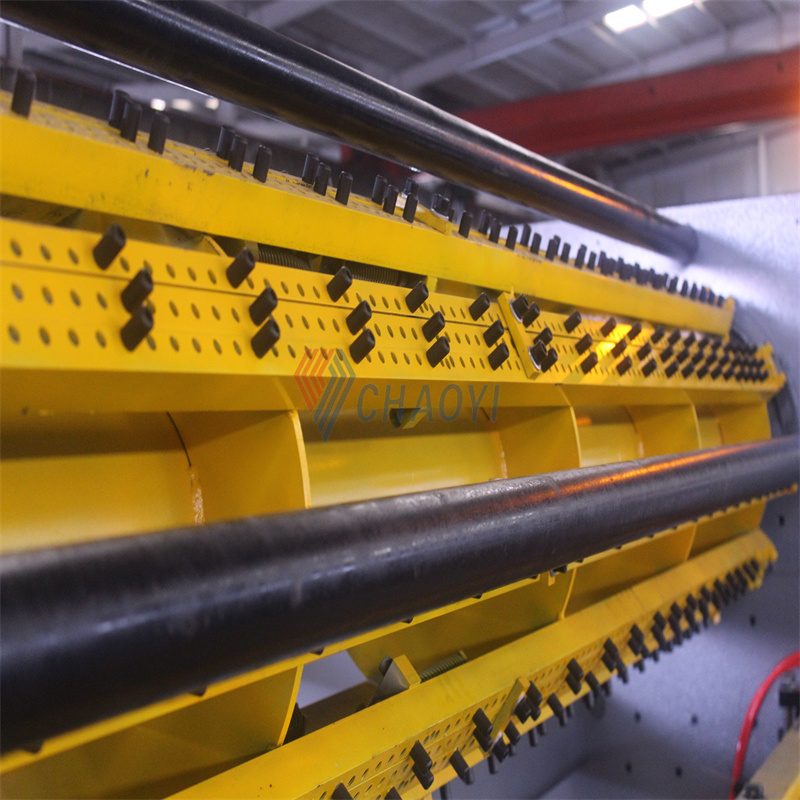

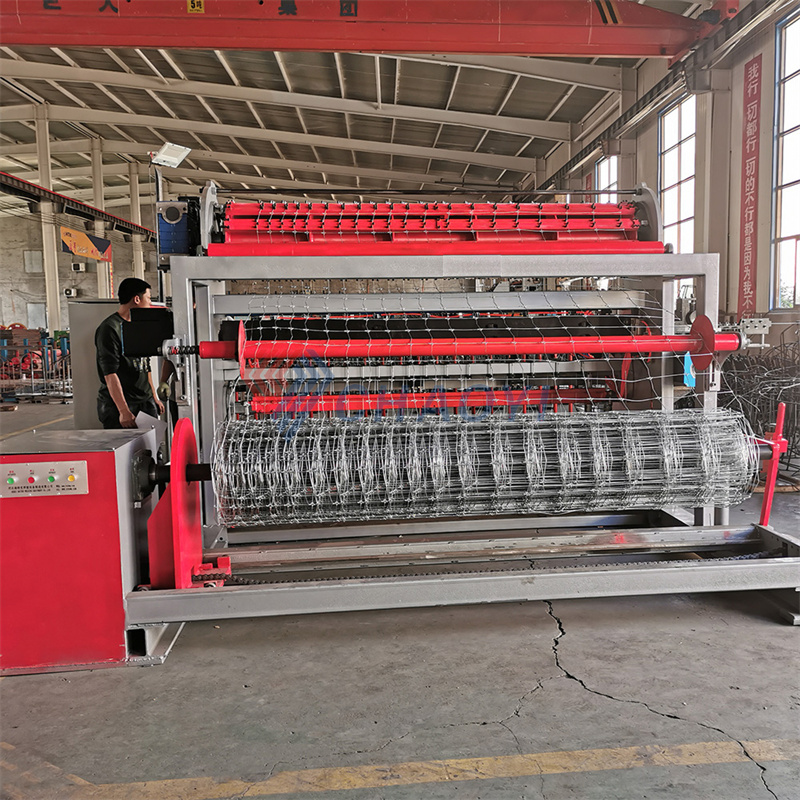

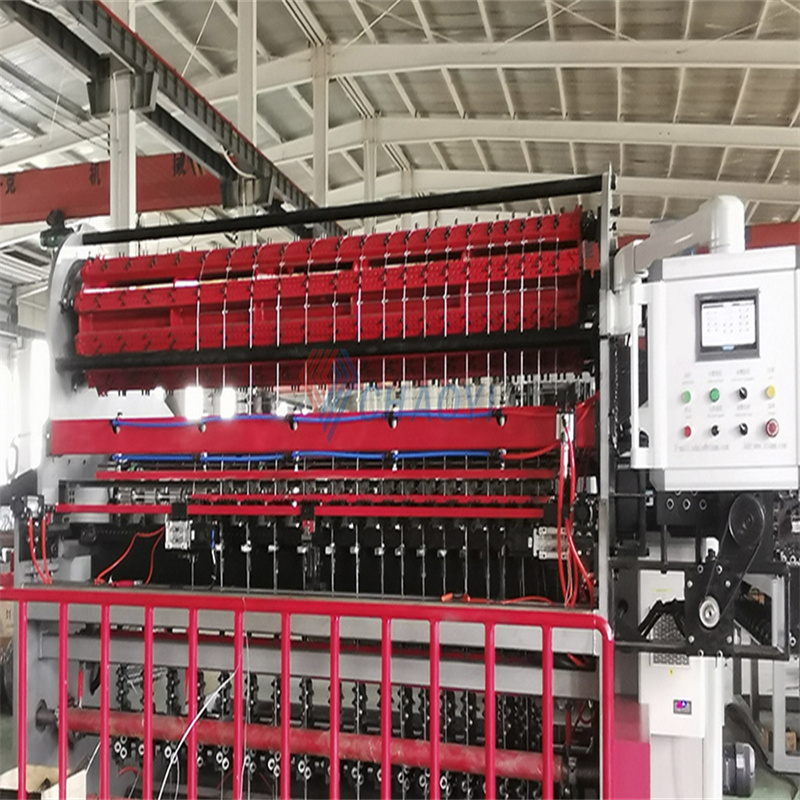

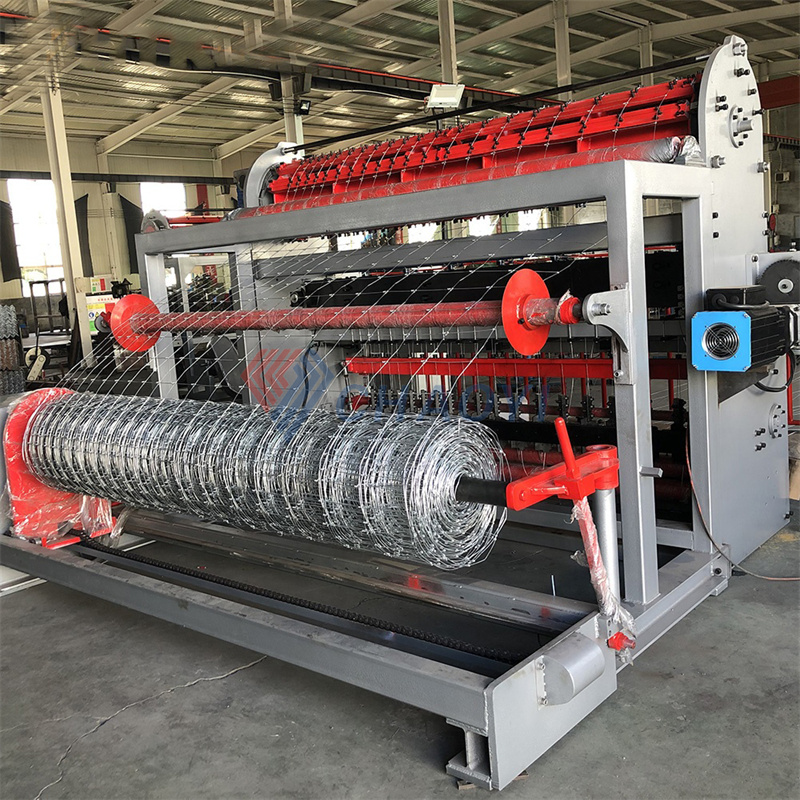

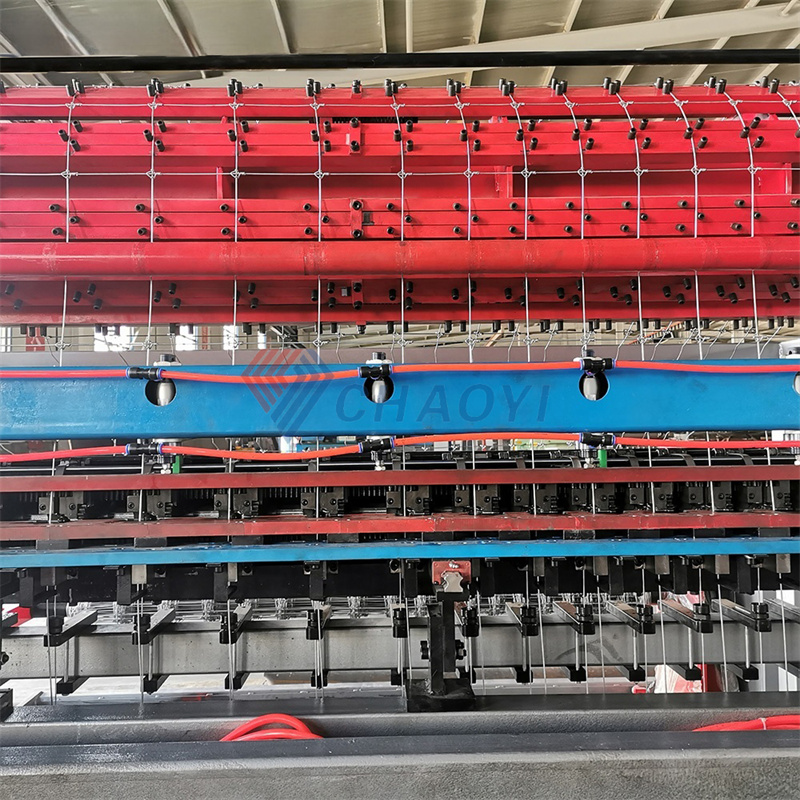

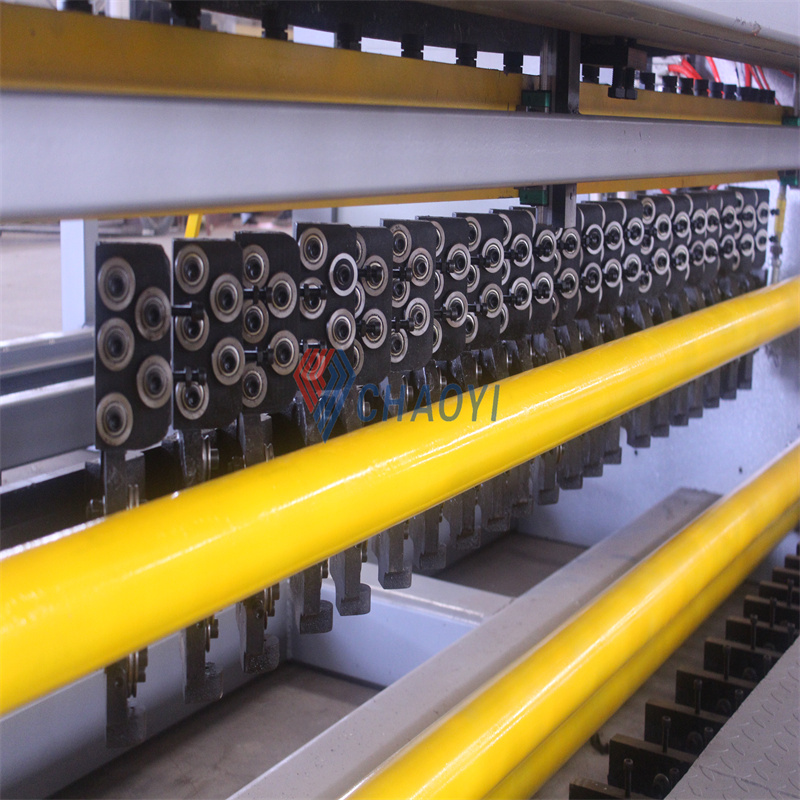

Product Details
