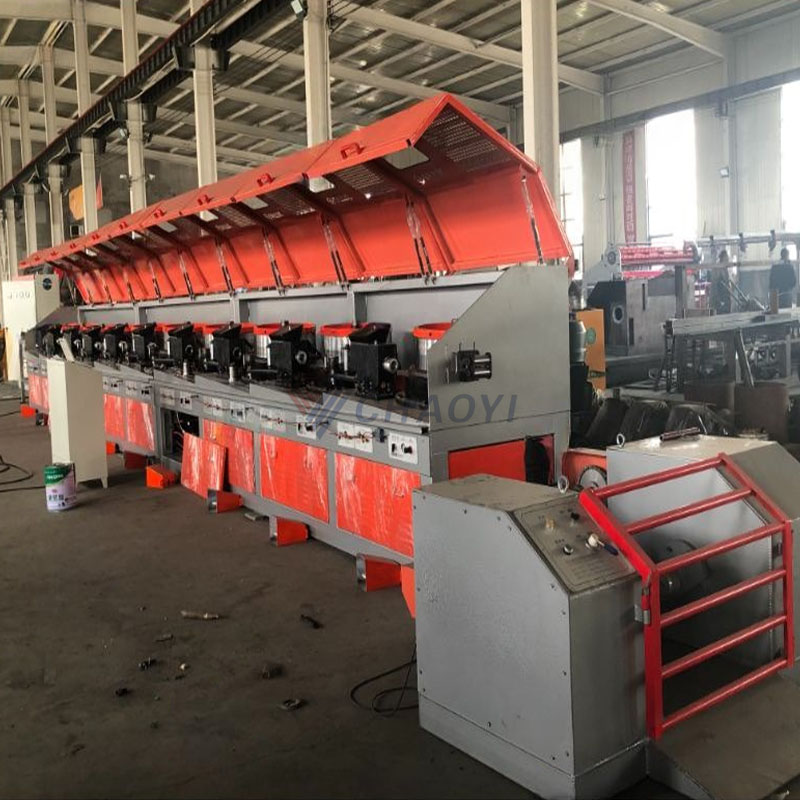

Straight Line Wire Drawing Machine

Upgrade your wire production process with our top-quality straight line wire drawing machine. Designed for precision and efficiency, our machine ensures flawless wire drawing for all your manufacturing needs Durable and reliable, this machine is perfect for enhancing your wire production capabilities

Email:

anna@chaoyimachine.com

WhatsApp:

+86 173 3181 6366

Inquire
Product Catalog

Still deciding? Get samples first,  Contact US !

View similar products

Straight Line Wire Drawing Machine

Tag list

Share to

Wire drawing machine

Wire Drawing Machine Production Line

  • Product description

  • ◆ Upgrade your wire production process with our top-quality straight line wire drawing machine. Designed for precision and efficiency, our machine ensures flawless wire drawing for all your manufacturing needs Durable and reliable, this machine is perfect for enhancing your wire production capabilities





    Technical Parameter



    Type
    CY-1/800
    CY-1-6/560
    CY-1-7/450
    CY-1-6/350
    Max dia of material
    10.0-14.0mm
    6.5mm
    3.4mm
    2.5mm
    Min dia of material
    6.0mm
    2.0mm
    1.0mm
    0.75mm
    Diam of block
    1-800
    1-6/560
    1-7/450
    1-6/350
    Max average condensation
    25%
    30%
    20%
    21%
    Total condensation

    78.5%
    77.9%
    78%
    Max. speed of block
    60m/min
    200m/min
    260m/min
    200m/min
    Power
    80KW
    18.5-30KW
    7.5-11KW
    7.5-11KW
    Weight
    4500kg
    2000kg
    1500kg
    1000kg
    Overal size
    9.73x33.4x2.02m
    1.7x1.15x1.75m
    1.52x0.81x1.7m
    1.4x0.8x1.5m



    Product Description



    1. This machine adopts programmable logic controller (PLC) for control., and adjustment is simple, stable and reliable

    2. Usina touch screen operation, simple, convenient and natural human-computer interaction.

    3. Rotary die box for extending drawing die life and make the wire more round.

    4. ZG45 cast steel drum with 80mm height tungsten carbide coating, 22000hours working life

    5. Water cooling inside the drawing drums to cooling down the temp.

    6. Drawing blocks adopts reducer&synchronous belt, working speed is higher.

    7.With cold rolling ribbing cassette, you can make both smooth wire and ribbed wire8.Wire drawing machines make the big wire diameter to small wire diameter for the wires Firstly.



    Details

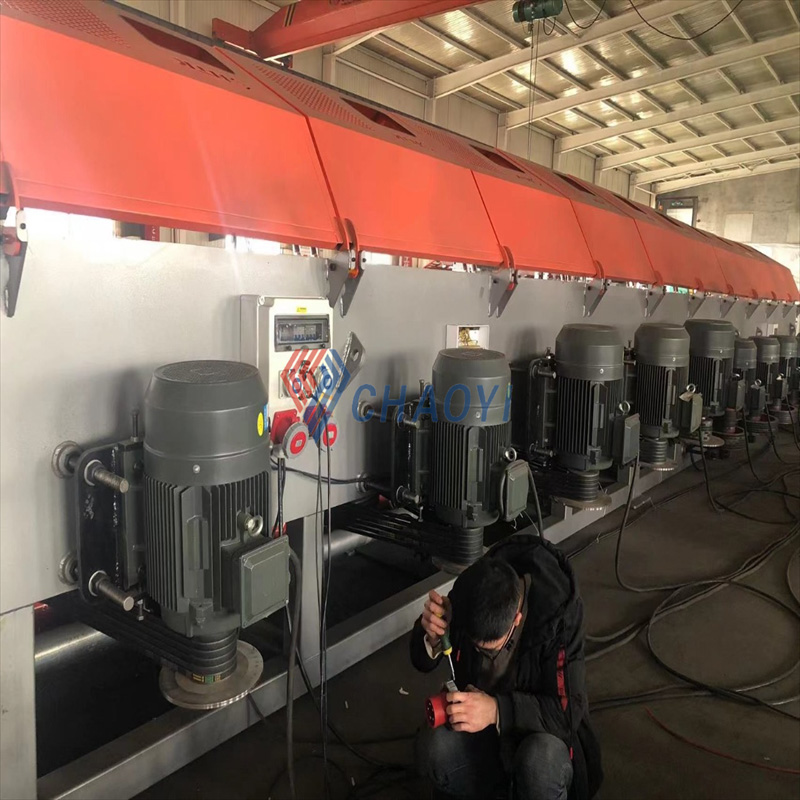

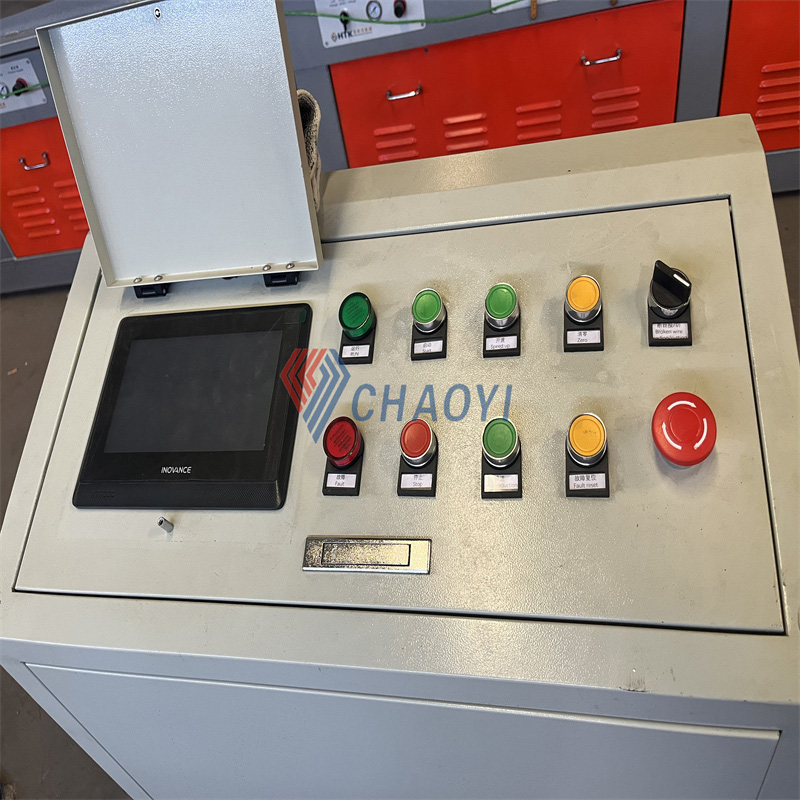

    PLC contorl Motors Descaling machine

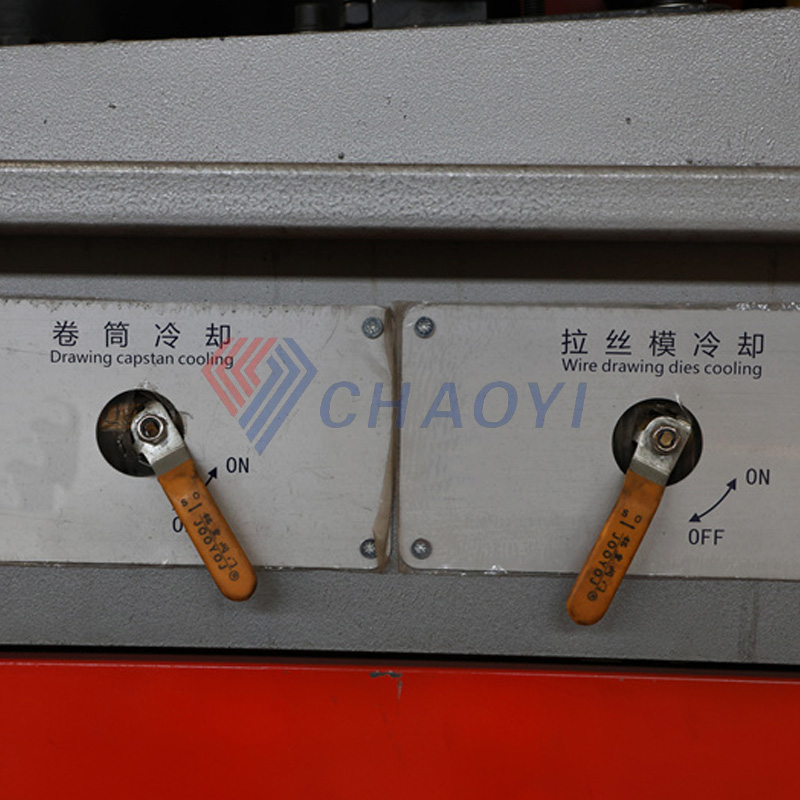

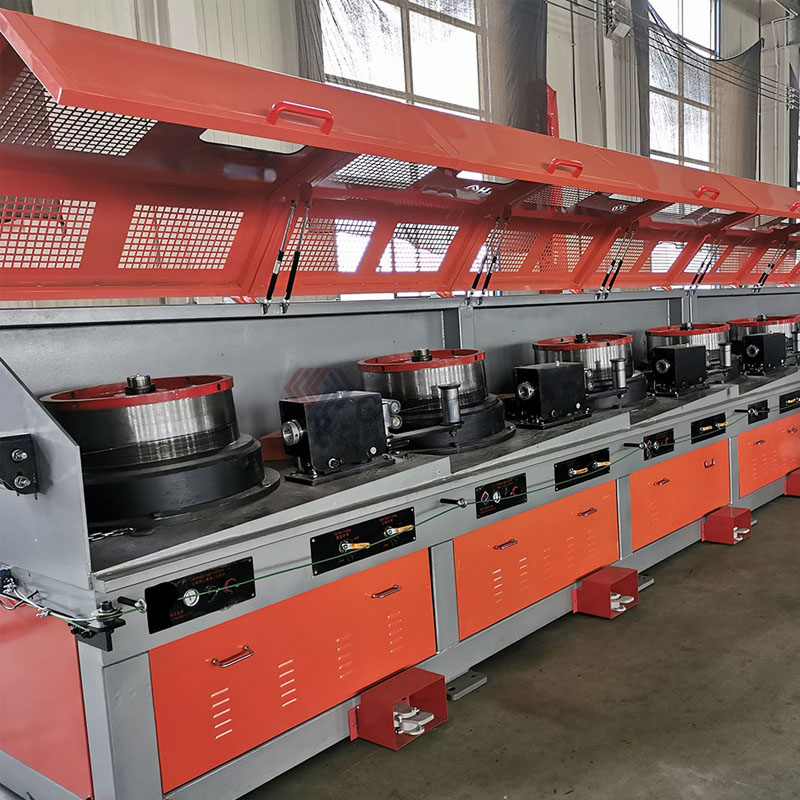

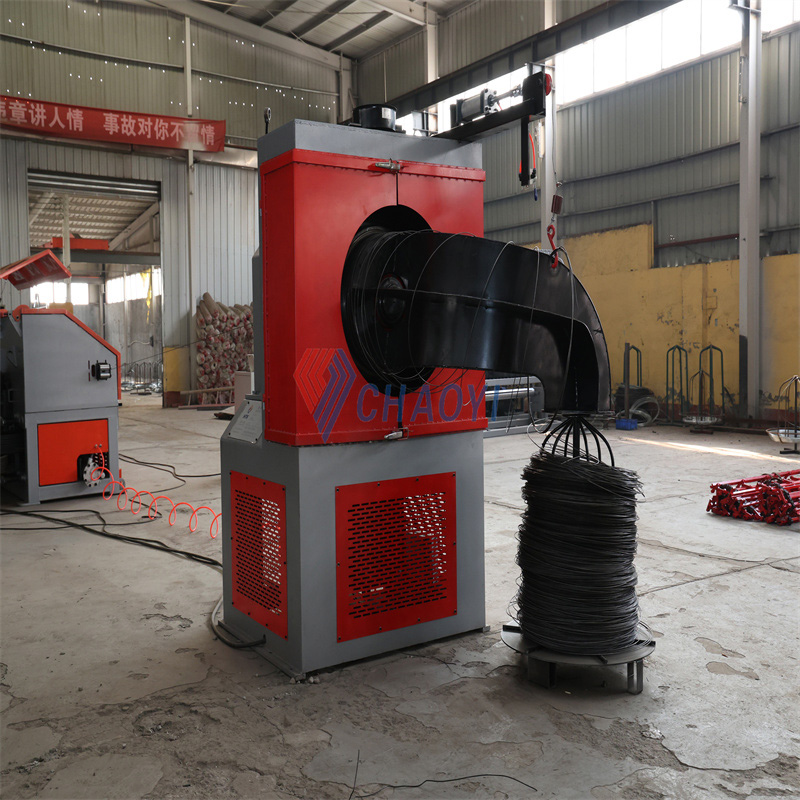

    Capstan " Elephant nose " shape wire take-up machine Water cooling system and water cooling moulds
