- Product description
-
◆ Fixed knot fence, also calledTightlock Fence.The fixed-knot woven wire fence is ideal for any area that faces a lot of rough weather. Fences secured by cross lock knots can withstand heavy snow, as well as extreme force from your animals and local wildlife.
◆ The Fixed knot fence is a livestock fence widely used in grassland areas to protect the ecological balance and prevent landslides.
Features
● This product is made of 45 # steel, and its radial wire is not cut off, the advantage is that after the impact of large beasts and livestock, it will automatically bounce back, and the net hole is not easily broken down, minimizing the degree of deformation of the fence and ensuring the enduring durability of the barrier.

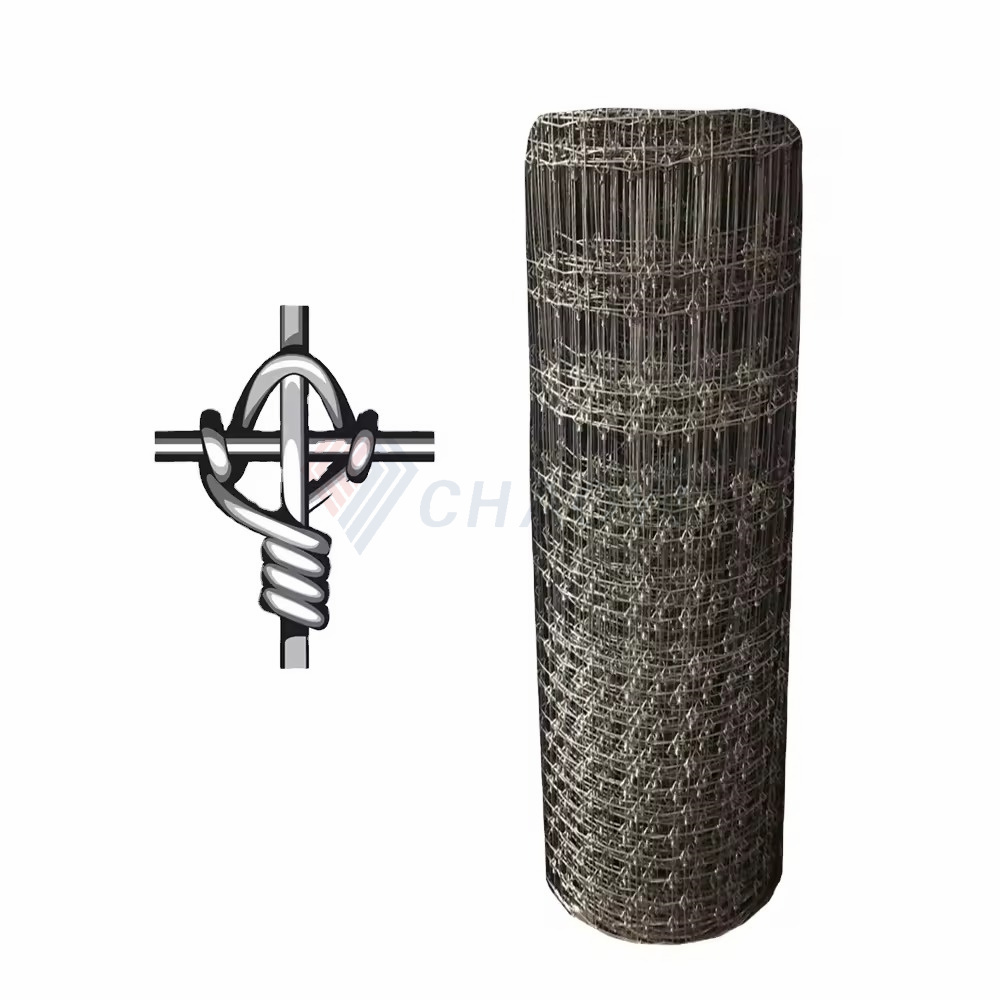

● The product's warp and weft wire node by wire around the tight, This ringing method makes the junction not easily loose, the net pores are not easier to deform, and the tail of the ringing wire is all directed to the outside of the fence, so as to minimize the scratching of animal fur by the fence and play a role in protecting animal fur.
● For the fence whose weft hole distance is more than 20cm, it can be treated by silk bending, which can ensure the level up degree of the fence and facilitate construction, and solve the stress and deformation of the fence caused by the temperature difference.
Product Name
Fixed knot deer fence
Maximum fence width
2072mm(82'), 2438mm(96'')

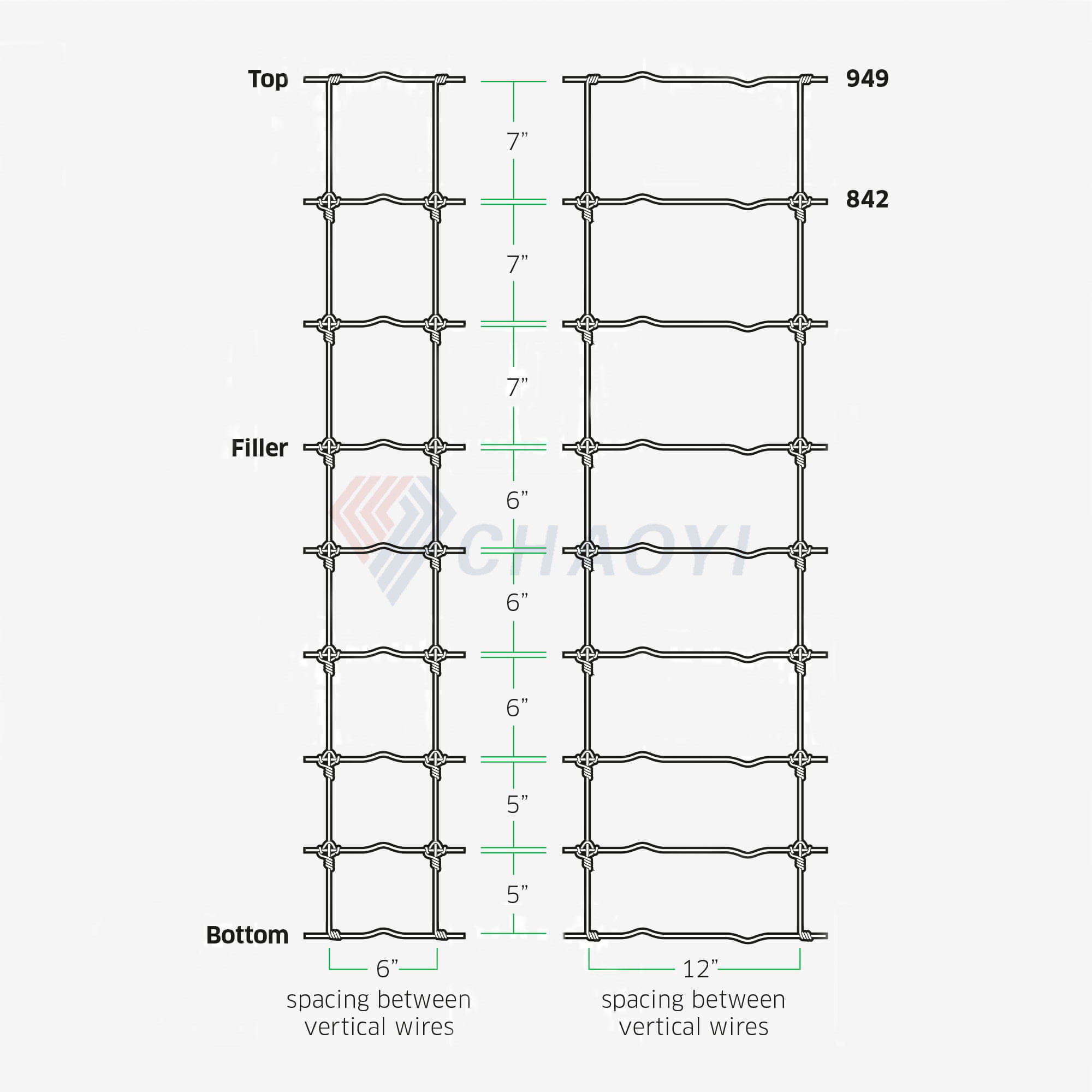

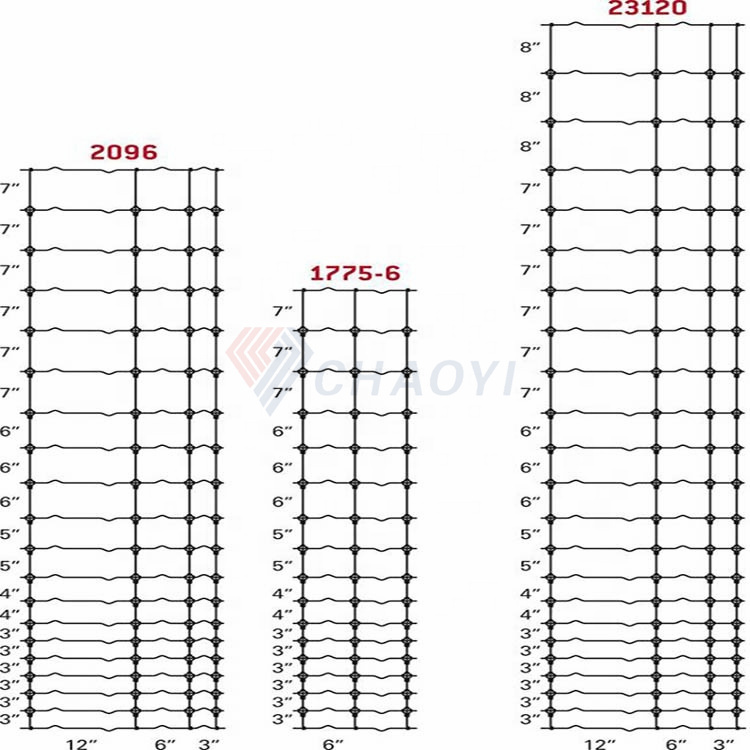

Line wire spacings
Height:2072mm(82''): 18 line wires: 76mm(3'')*6+100mm(4'')*2+127mm(5'')*2+152mm(6'')*3+178mm(7'')*4
Height:2438mm(96''): 20 line wires:76mm(3'')*6+100mm(4'')*2+127mm(5'')*2+152mm(6'')*3+178mm(7'')*6
Stay wire spacings
75mm,150mm,225mm,300mm,450mm
Material
low carbon steel wire,middle carbon steel wire
Surface Treatment
Hot dipped galvanized(zinc coated:220-260 g/m2)
Hot dipped galvanized(zinc coated:60-70 g/m2)
Electro galvanized(zinc coated:15-20 g/m2)
Wire diameter
Bottom/top wire diameter: 2.5mm-3.0mm
Stay/line wire diameter: 2.0mm-2.5mm
Knot wire diameter: 2.0mm,2.2mm
Tensile range
Line wire tensile:850-1350N/mm2
Stay wire tensile:525-850N/mm2
Knot wire tensile:400-525N/mm2
Max length of roll
100m/roll
Application
deer fence, sheep fence, cattle fence, horse fence
Feature
Eco-friendly, Corrosion resistant, easy-installing, Long service life, strong structure, precise surface, High tensile, beautiful and good safety performance
Product Details
Cost Effective
● More cost effective to install due to less labour and material cost versus a post & rail fence.
● Hollow inner core is free of centre wires allowing for easy lifting with materials handling equipment.
Flexible
● Tension curves allows the fence to flex under pressure but still retain its form.
● Tied knot allows for movement and impact absorption.
● Will follow contour in undulating ground.
Choice
● A range of sizes in horizontal line wires, fence heights, stay spacing and roll lengths to suit any application.
Durable
● Manufactured using a medium coat weight of Zinc-Aluminium wire
Application

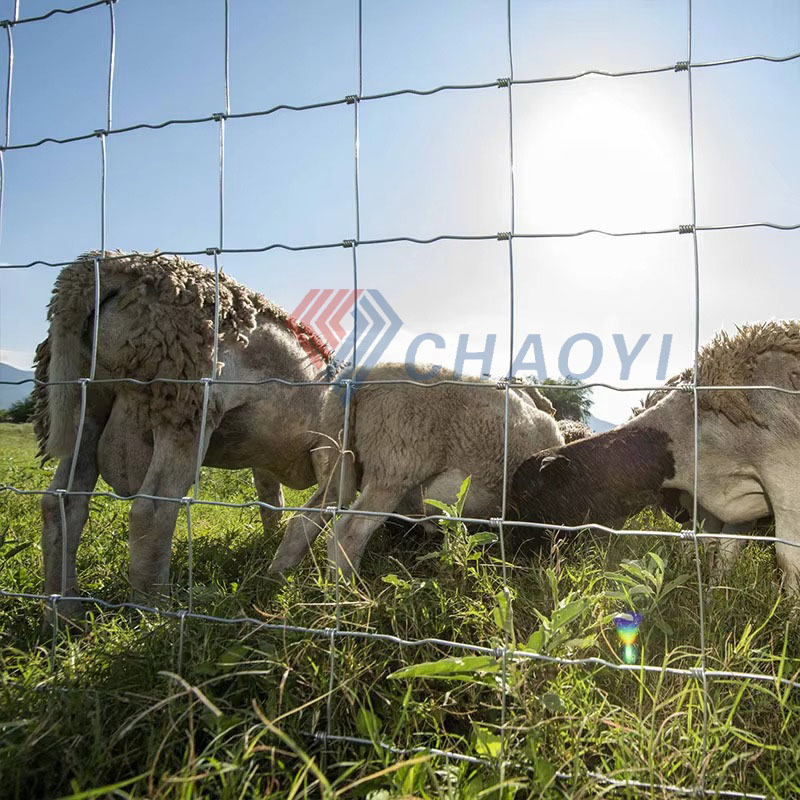

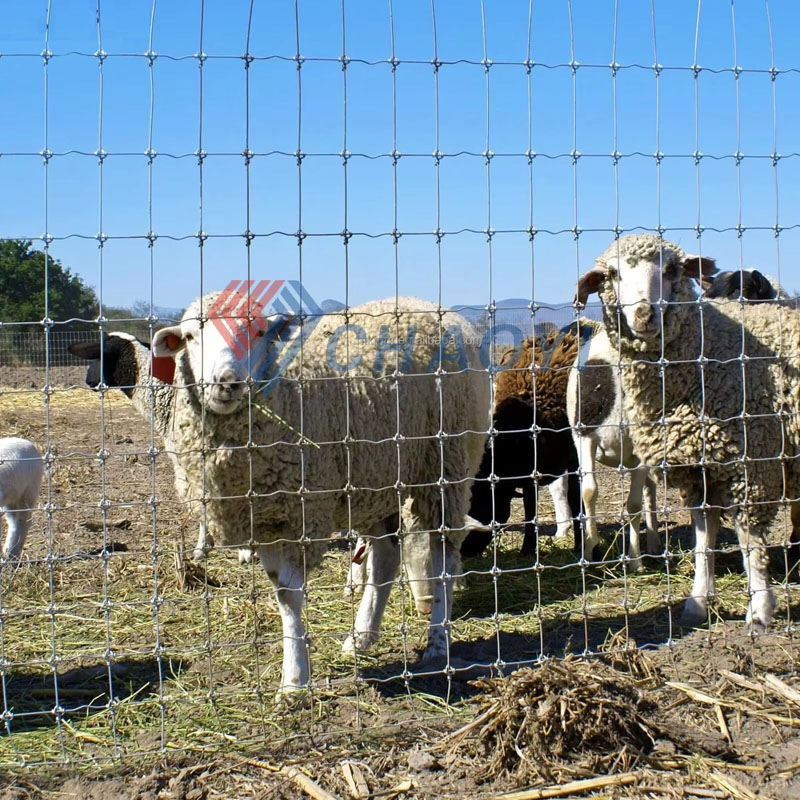

1.Agricultural side fence is used in captivity for cattle, sheep, deer, horses, etc.
2.Road protection, used for roadside protection in provincial, county and rural areas.
3.Protection of animals and plants, for the isolation of wildlife in natural conservation areas.
