- Product description
-

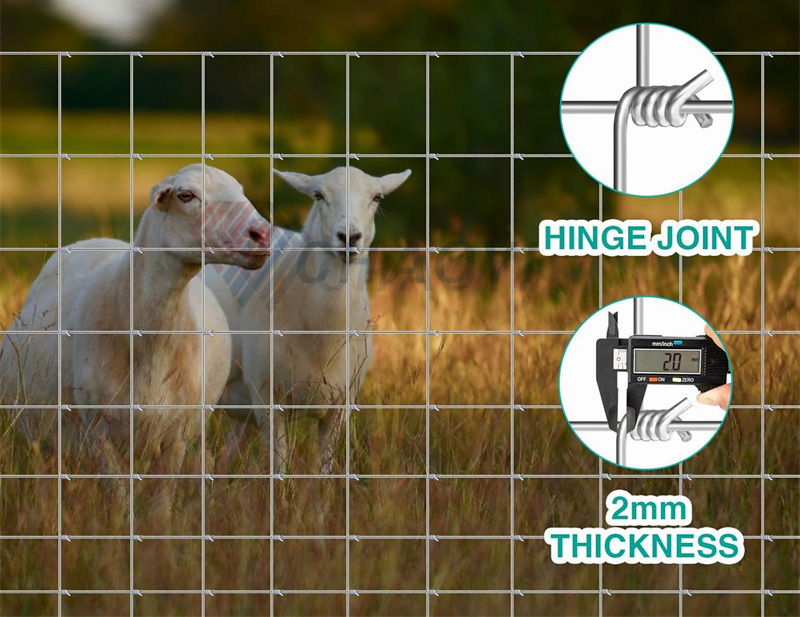

◆ Hinged Joint Fence is the most popular pre-fabricated fence used globally. The tightly wrapped knot resists livestock pressure while remaining flexible enough to retain its structure. The hinged joint “knot” allows the fence to flex under stock pressure, absorbing the impact of livestock so the fence regains its shape. All wires are galvanised for extended life.
Technical Parameter
No. Item Specification Top & bottom Middle Roll wires diameter wire diameter diameter (mm) (mm) (mm) 1 7/150/813/50 102+114+127+140+152+178 2.5 2 280 2 8/150/813/50 89(75)+89+102+114+127+140+152 2.5 2 280 3 8/150/902/50 89+102+114+127+140+152+178 2.5 2 280 4 8/150/1016/50 102+114+127+140+152+178+203 2.5 2 280 5 8/150/1143/50 114+127+140+152+178+203+229 2.5 2 280 6 9/150/991/50 89(75)+89+102+114+127+140+152+178 2.5 2 280 7 9/150/1245/50 102+114+127+140+152+178+203+229 2.5 2 280 8 10/150/1194/50 89(75)+89+102+114+127+140+152+178+203 2.5 2 280 9 10/150/1334/50 89+102+114+127+140+152+178+203+229 2.5 2 280 10 11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229 2.5 2 280 Item number means: the number of wire of width/distance of horizontal wires (mm)/ the height of mesh(mm)/ length of mesh(m) OTHER SIZES ARE ALSO AVAILABLE. If you need another technical specification not described in the table, please feel free to reach us and our team of experts will be ready to help you and propose a feasible solution to your individualized requirements!
DURABLE AND STURDY
Our Livestock fence mesh is made of 2mm diameter thicknesshigh quality galvanized wire, which wovened by specialmachines.Good hardness, sturdy and durable,good molding of farm fence mesh, strong flexibility.
OURS
Anti-rust
strong and sturdy
Easy installation
long service life
MULTIFUNCTIONAL DESIGN

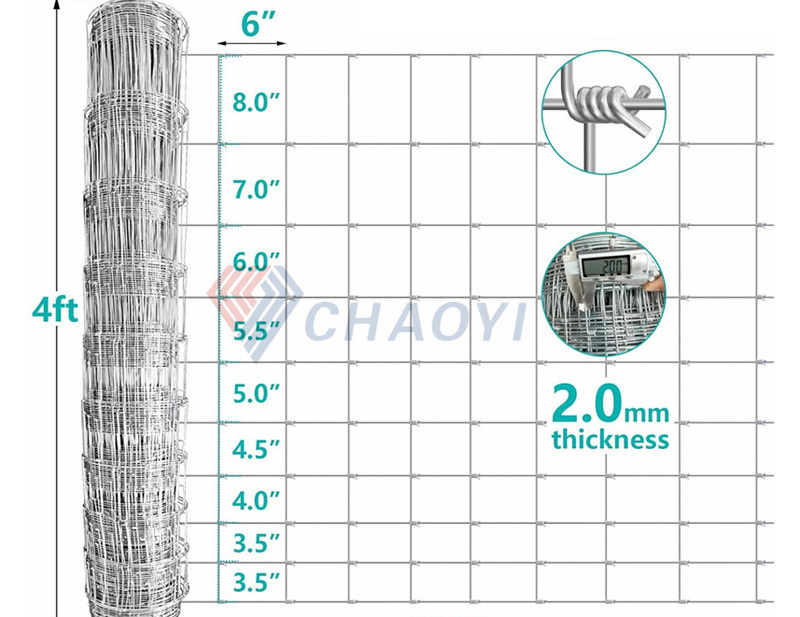

Our farm fence features a gradient spacing design, with smaller meshnear the bottom to prevent smaller animals from getting through.Utilizing advanced twisting and anti-welding technology, our livestockfence effectively solves issues like welding failure and rusting.
EASY TO INSTALL
The simple design of our galvanized livestock fence allows foreasy installation, disassembly, and relocation. Providing asecure space for animals, it facilitates flexible managementand operation in animal husbandry.
ldeal for outdoor fences
High Quality Low-carbon Steel inside Galvanized Hot-dipped Outside
Application
1.Agricultural side fence is used in captivity for cattle, sheep, deer, horses, etc.
2.Road protection, used for roadside protection in provincial, county and rural areas.
3.Protection of animals and plants, for the isolation of wildlife in natural conservation areas.
