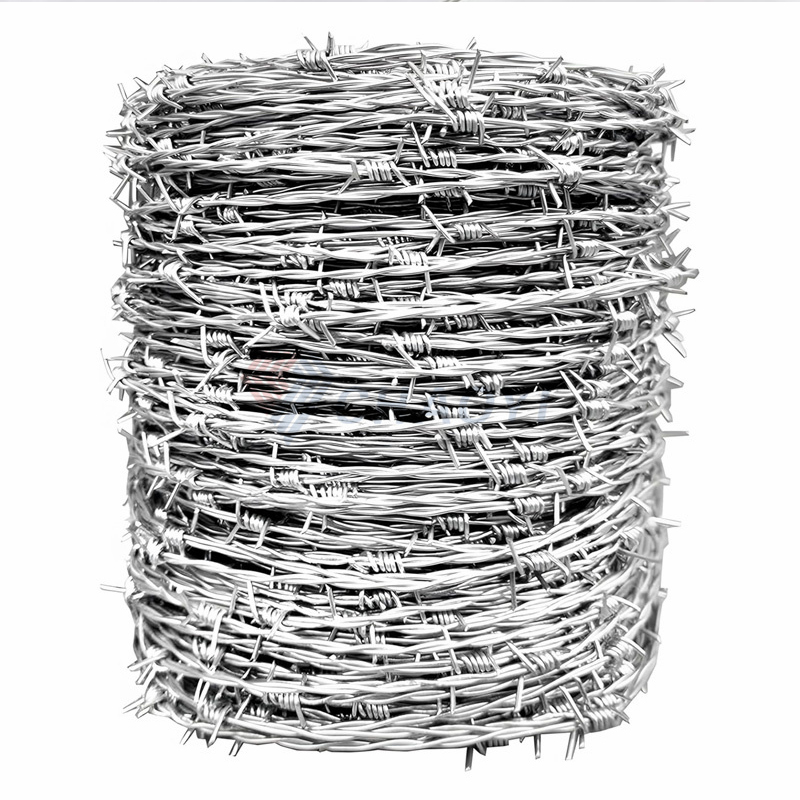

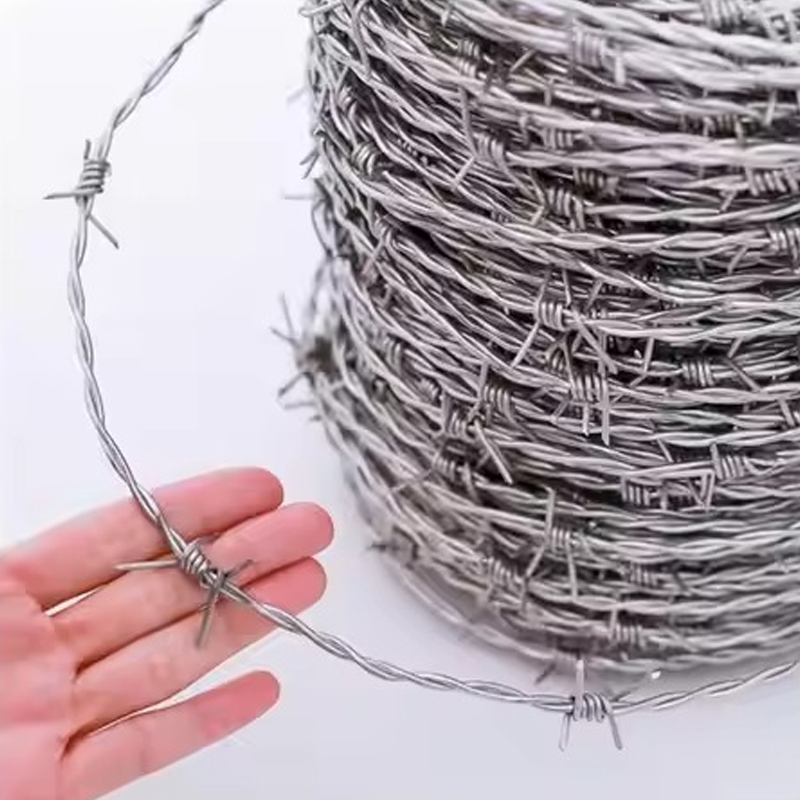

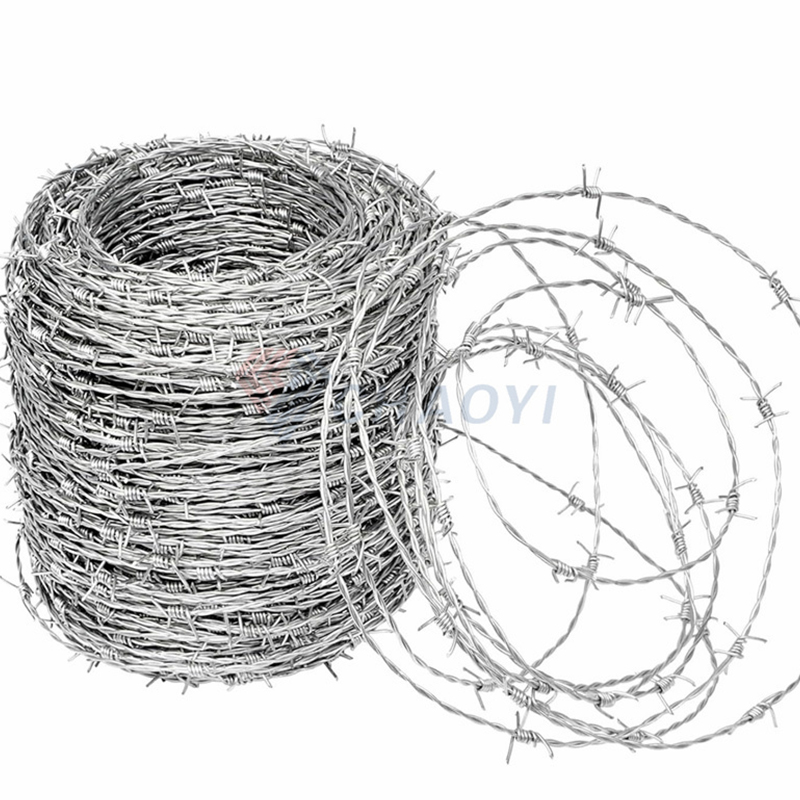

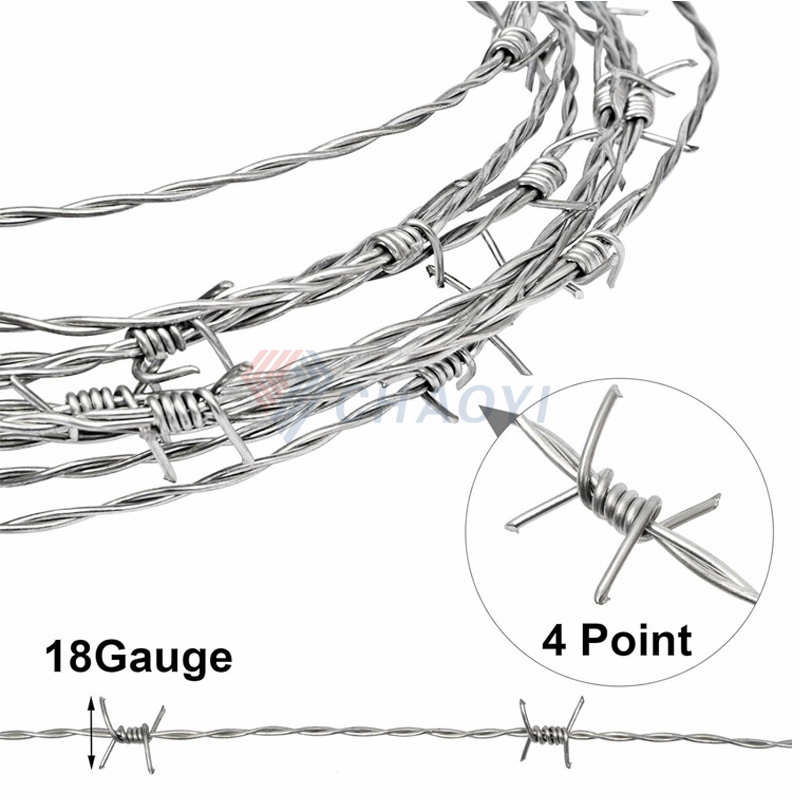

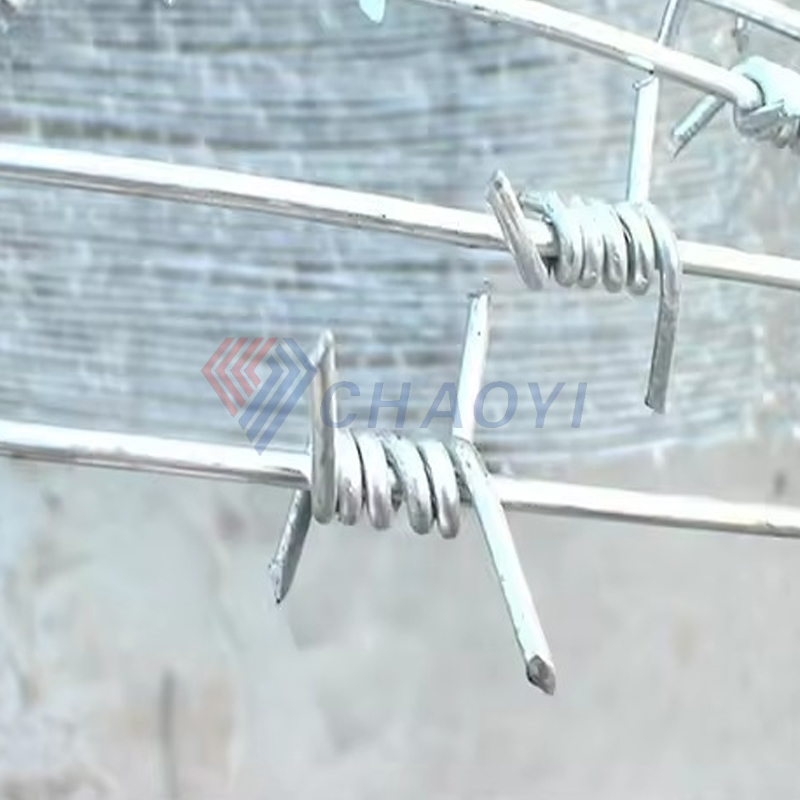

REVERSE twist barbed wire making machine (CS-B/C) is composed of two parts: wire twist and wire winding. It could produce both single strand（CS-B） and double strands barbed wire (CS-C).

Email:

anna@chaoyimachine.com

WhatsApp:

+86 173 3181 6366

Inquire
Product Catalog

Still deciding? Get samples first,  Contact US !

View similar products

Barbed Wire Machine （CS-B）

Tag list

Share to

Barbed Wire Machine

  • Product description

  • ◆ The barbed wire making machine is divided into double strand barbed wire making machine (CS-A), single strand barbed wire making machine (CS-B), Positive and negative twist barbed wire making machine （CS-C）, blade razor barbed wire machine.

    ◆ REVERSE twist barbed wire making machine (CS-B/C) is composed of two parts: wire twist and wire winding. It could produce both single strand and double strands barbed wire.

    ◆ It is equipped with three wire placing discs and adopts advanced electronic counting control. It is the only equipment in China to produce single strand barbed wire netting machine.

    ◆ The advantages of easy operation, smooth movement, low noise and low energy consumption.

    ◆ The products produced by this machine are widely used in national defense, railways, highways, farming and animal husbandry for protection and fencing.





    Single strand wire twisted barbed wire making machine （CS-B)
    Model B
    Wire diameter 1.6-3.2mm
    Barb diameter 1.6-2.6mm
    Wire tensile strength 400-600N/mm²
    Barb separation distance 3'(75mm) 4'(100mm) 5'(125mm) 6'(150mm)
    Producing speed 540m/h 720m/h 900m/h 1080m/h
    Capacity 60kg/h
    Power 3KW 380V customized
    Dimension 3100*1000*1150mm
    Weight 1000kg



    Reverse twist barbed wire machine (CS-C)
    Wire diameter 1.6-2.8mm
    Barb diameter 1.6-2.4mm
    Main drive shaft speed 355r/min
    Twist number 7
    Theoretical output 50kg/h
    Wire tensile strength 1100-1200N/mm²(Diameter 1.6-1.8mm)
    800-900N/mm²(Diameter 1.8-2.6mm)
    400-500N/mm²(Diameter 2.7-2.8mm)
    Barb separation distance 4'(100mm) 5'(125mm)
    Producing speed 600m/h 750m/h
    Capacity 50kg/h
    Power 3KW 380V customized
    Dimension 3150*1000*1280mm
    Weight 800kg

    Machine Features

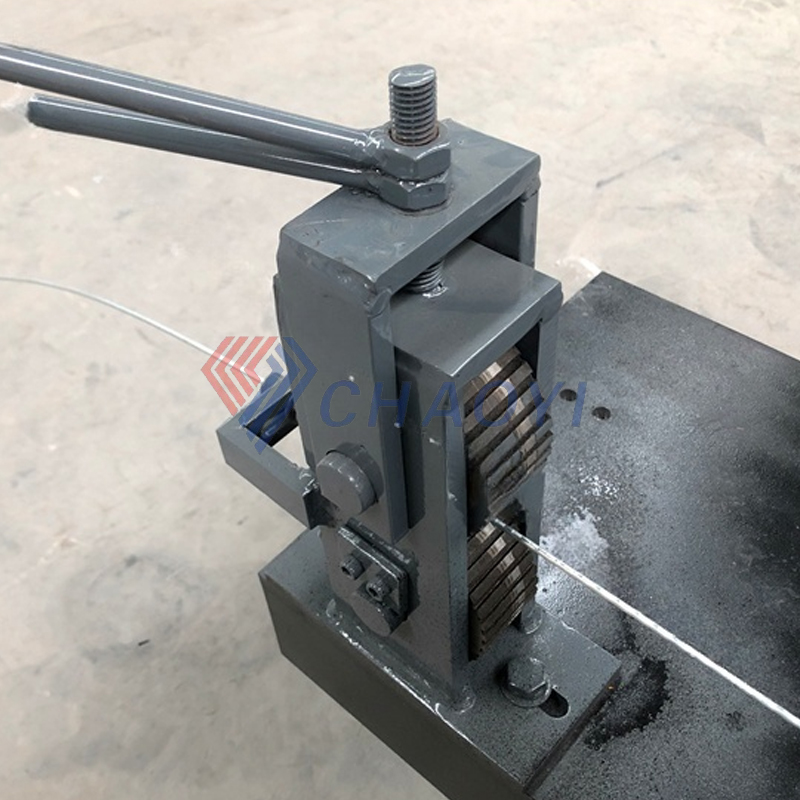

    Feeding wheel

    The surface of the feeding wheel has been specially treated, which is durable. It can smooth the wire and reduce faults.

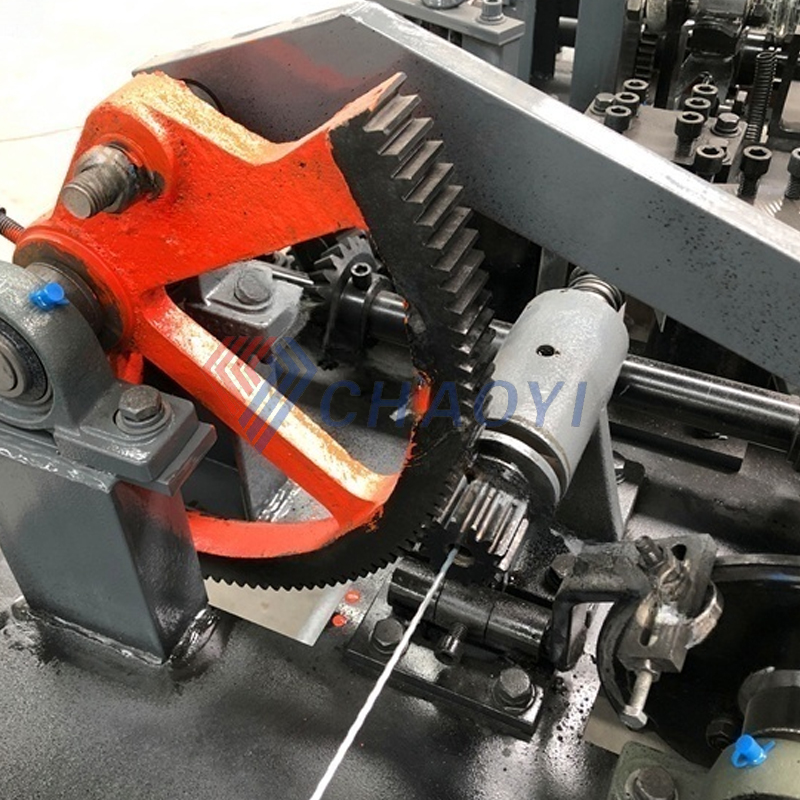

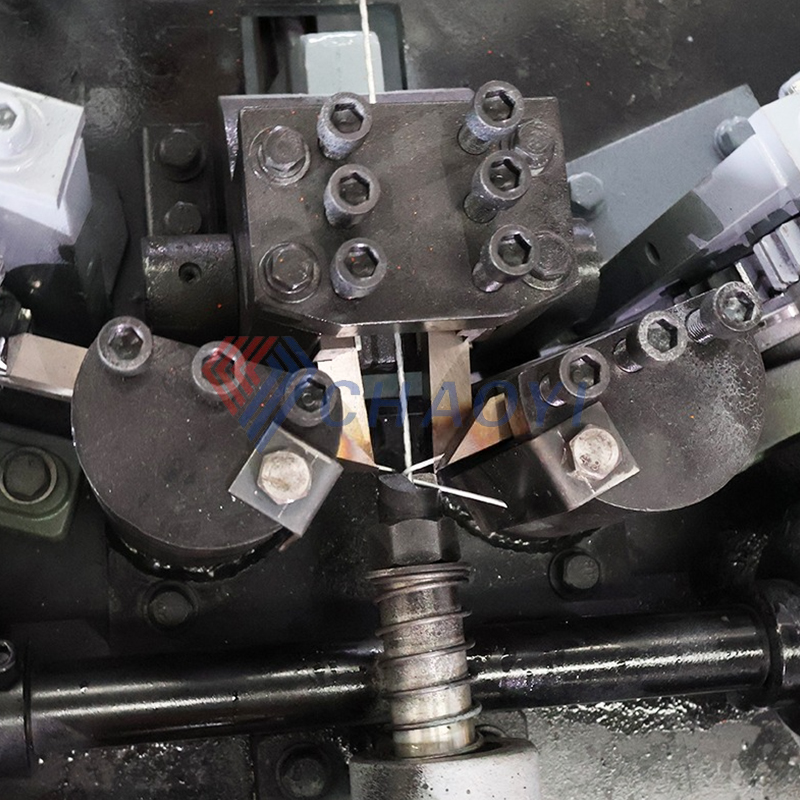

    		 Twisted head
    The screw thread system has the advantages
    of simple structure, convenient operation

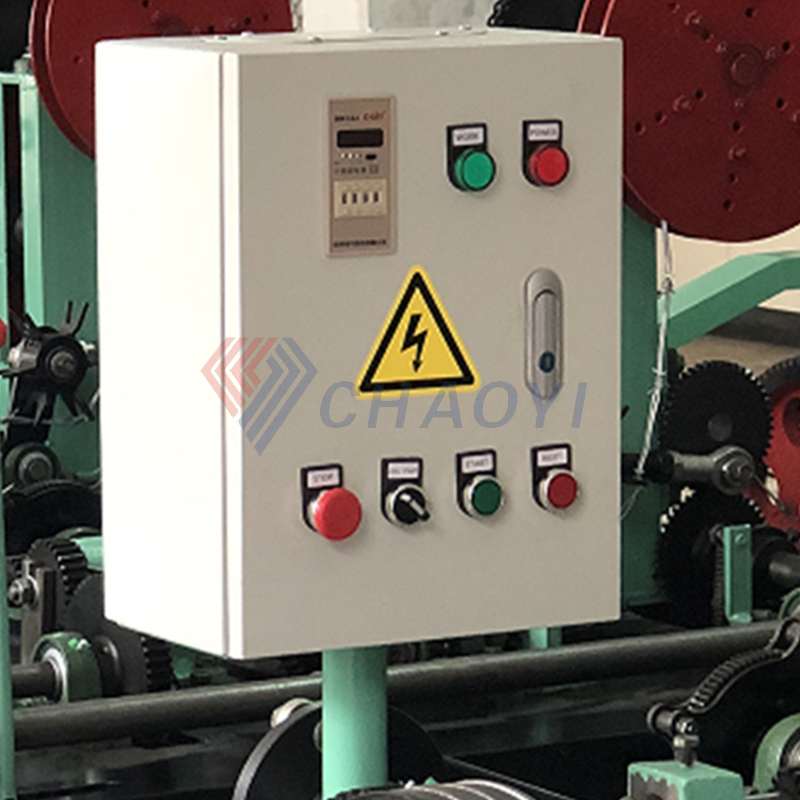

    and easy replacement of twisted head.    		 Electric box
    There are start button, stop button and emergency
    stop button on the electric box. The counter
    can set the output automatically.
    Mechanical parts
    The mechanical parts are made of alloy steel
    to ensure the long-term operation and overall

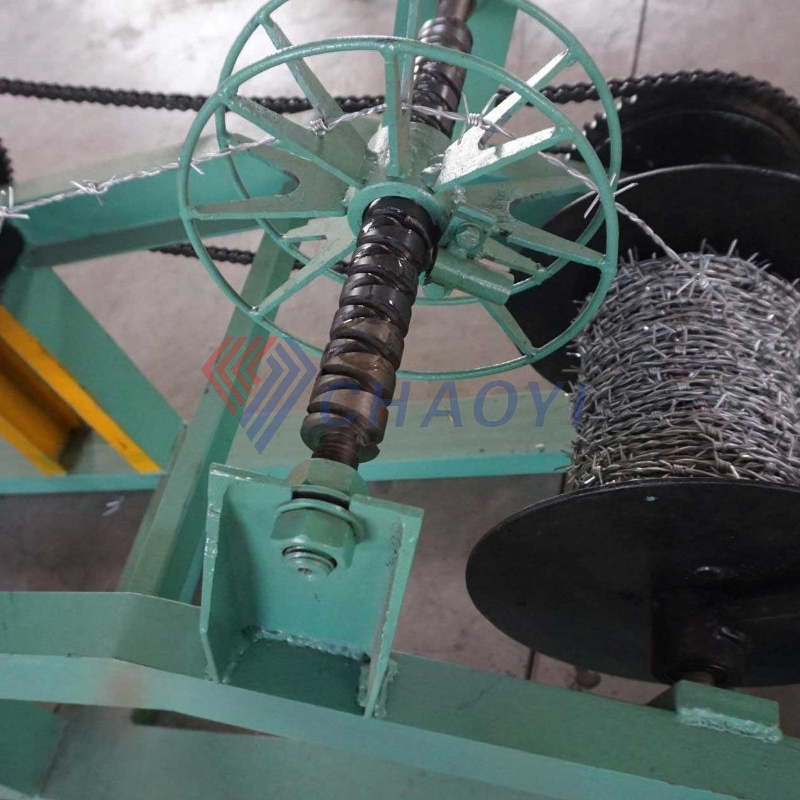

    service life of the machine.    		 Traverse device
    Traverse device can automatically move the
    position to make the take-up more
    uniform and beautiful.    		 Take up reel
    Take up reel can be customized according
    to customer requirements, including the size
    and diameter of the reel.
