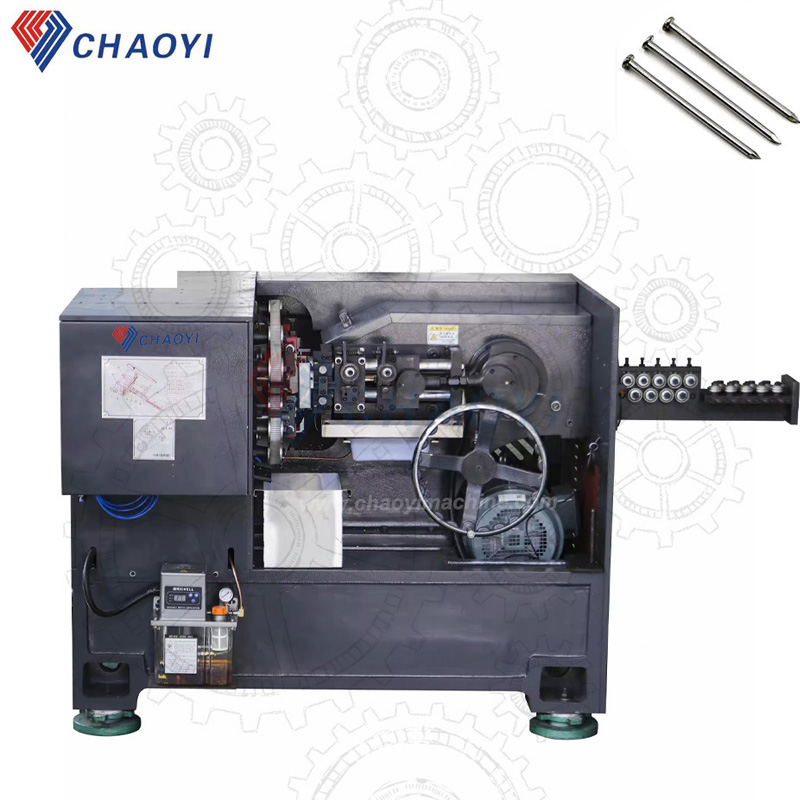

High speed nail making machine
Still deciding? Get samples first, Contact US !
View similar products
- Product description
-
◆ The unique setting structure makes the stability of the hat good, and the 100% guarantee that the hat is round and positive, the first tail, the bent nail and so on.completely solves the problem of small proportion of long and short nails, partial caps.
◆ making it an ideal choice for large-scale industrial applications, such as building material shops, machinery repair shops, and manufacturing plants.
Our advantages
-- High productive: 760pcs/min
-- Defective rate: No defective nails, every nail is a good product
-- Labor cost down by 50%--70% on nail making
-- Labor cost down by 35%--45% on nail coiling; Because of no defective nails, there is no break off during nail coiling.
-- 1 worker can operate 10 machines
-- Easy to operate: A common worker can operate this machine after a simple demo
-- Easy maintenance: No longer relying on experienced skillful workers
-- Our high speed nail making machine is of tantamount quality with the Germany famous nail making machine N90, but price is only about 1/5
-- Spare parts are with long lifetime and cheap price; Very low use-costTechnical Parameter
Technical Parameter X50 X90 X100A X130B X150 Nail Product Common Nails,
Coil Nails and Plastic Strip NailsCommon Nails,Coil Nails
and Plastic Strip NailsCommon Nails,
Coil Nails and
Plastic Strip Nails,and EPAL nailsCommon Nails, Coil Nails,
Plastic Strip Nails and Concrete NailsCommon Nails,Coil Nails,Plastic Strip Nails,
Spike Nails, and EPAL nailsNail Head Round Head Round Head Round Head/No Head Round Head/No Head Round Head/No Head Naill Head Diameter ≤ 8 mm ≤ 8 mm ≤ 8 mm ≤ 10 mm ≤ 10 mm Nail Point Diamond Cut Point,Clinch Point,
No Point,Chisel PointNail Diameter 2.0-2.5 mm 2.0-3.5 mm 2.0-3.8 mm 2.5-5.2mm 2.5-5.0 mm Nail Length 32-50 mm 45-90 mm 25 -100 mm 50-130 mm 70-150 mm Wire Grade SAE 1008-1010 SAE 1008-1010 SAE1006-1018 SAE1006-1060MAX4.5MM FOR CONCRETE NAILS SAE1006-1018 Max Output 800pcs/min 760pcs/min 860 pcs/min 500-600pcs/min 550pcs/min Power 7 KW 5.5KW+1.5KW 5.5KW+1.5KW 7.5 KW+2.2KW 11 KW+2.2KW Weight 2500 Kg 2800 Kg 2800 Kg 4200 Kg 4200 Kg Voltage 380 V-3 phrases-
50 HZ380 V-3 phrases-
50 HZ380 V-3 phrases-
50 HZ380 V-3 phrases-
50 HZ380 V-3 phrases-
50 HZProduct Details
DOUBLE NAIL DIES---double punches design and nail rod transferring belt structure
1.Bigger nail heads can be easily gotten
2.Even if nail pole is crooked, the nail cap is still well-punched
3.After proper setting, nearly no bad nail head.
4. Nail head thickness is neat ,without knock marks, consistent and good looking.
5.Debossed nail dies designed nail mould,no small cap, no blocked dust, no blocked scraps, no crack, don't need to frequently dismantle the mouldSpecial designed cutter shelf structure ----Nail knife holder swing arm structure
1. -Short stroke, high efficiency, low mechanical abrasion
2.High precision, no touch 2 nail cutter blades during cutting, longer lifespan of nail cutter.
3.More than 10 million nail cutting times, and easy to replace.Feeding and thread return structure
1.High precision feeding device, can control nail length tolerance within 0.3mm.
2. wire feeding and 3 wire rewinding structure , undergoes three mechanical actions of thread feeding, cutting, and thread return, completely separating nail shavings from the rod,it will ensure stable and qualified rate.

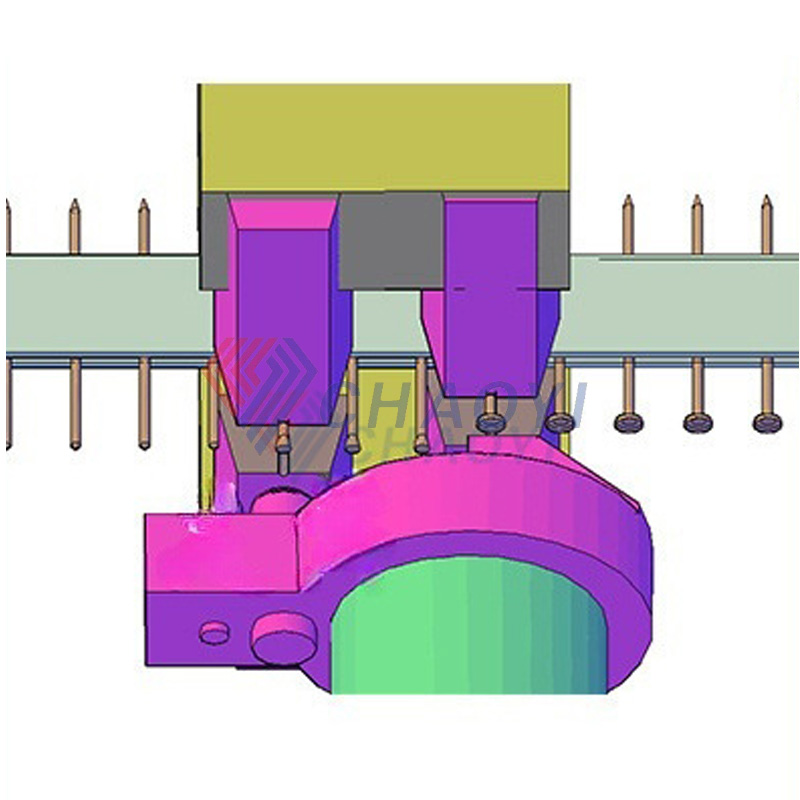

DOUBLE NAIL DIES

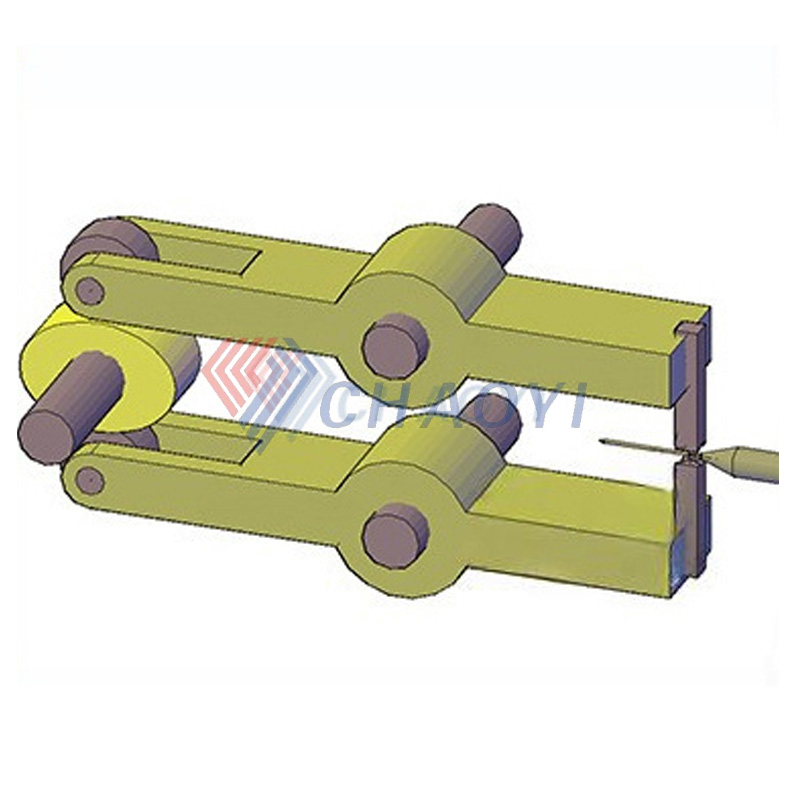

Special designed cutter shelf structure
Feeding and thread return structure
