- Product description
-

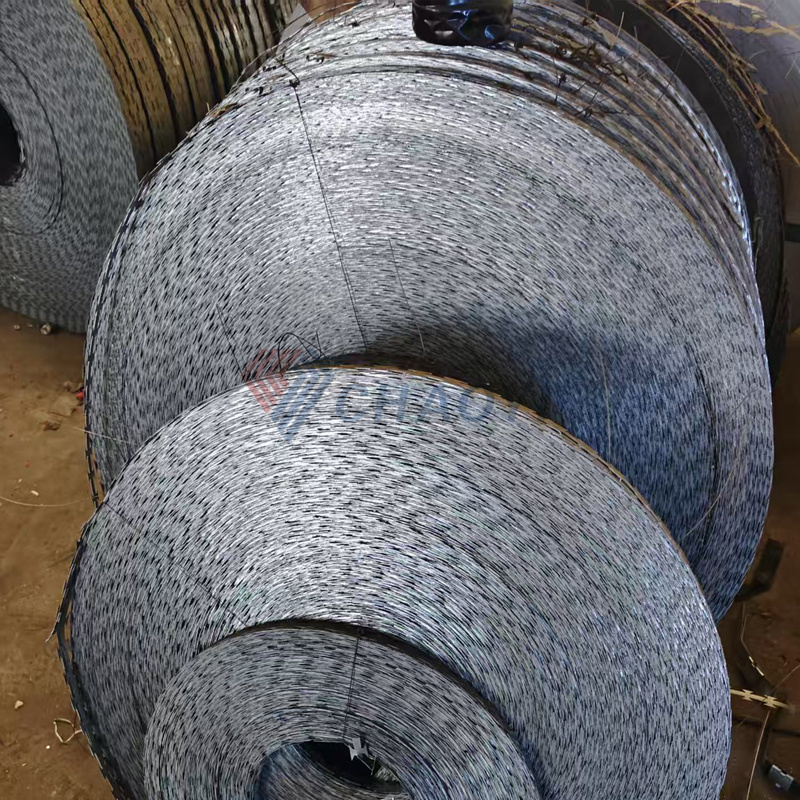

◆ Make Razor barbed wire Also called the razor blade barbed wire making machine ,razor wire machine.special production with high efficiency,good quality characteristics
◆ Structure is compact,small size. easy operation ,easy maintenance and low energy.
◆ Suitable for the production of various styles of the razor barbed wire
stamping forming（the main machine producing strip plates） wrapping forming（the coiling machine that coils the wire into the strip plate） Product Description

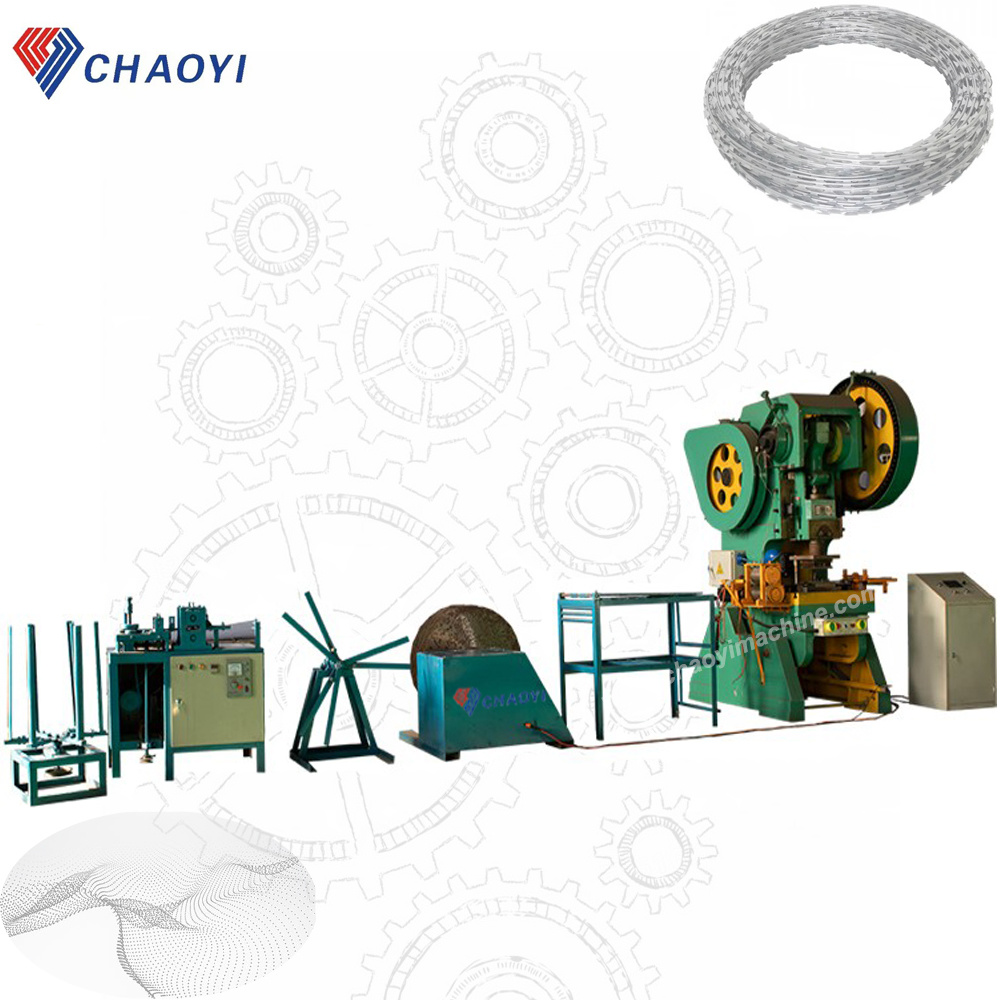

The principle of razor barbed wire machine is stamping forming（the main machine producing strip plates） and wrapping forming（the coiling machine that coils the wire into the strip plate）,

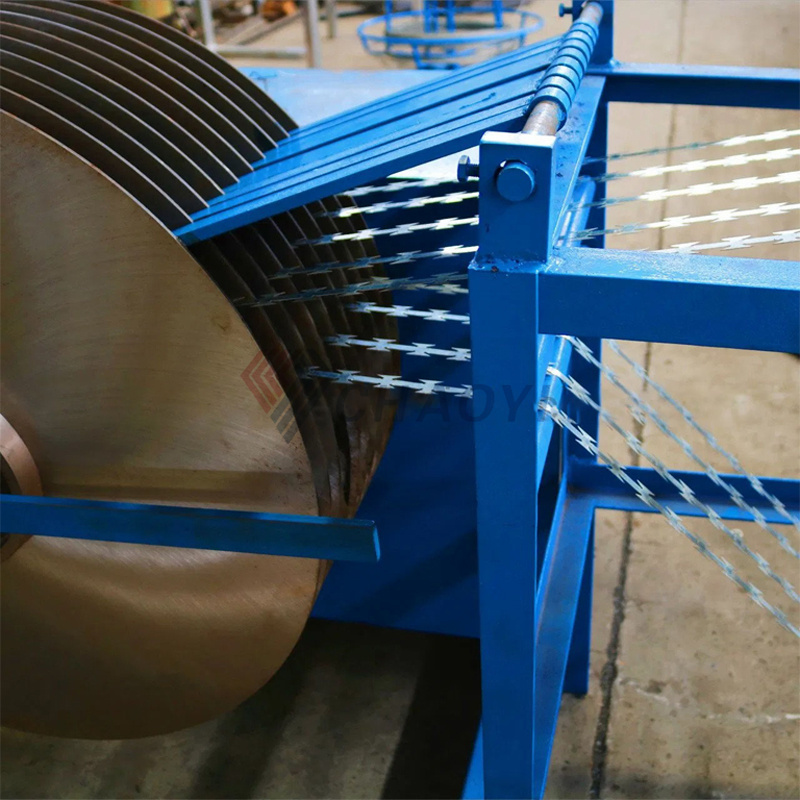

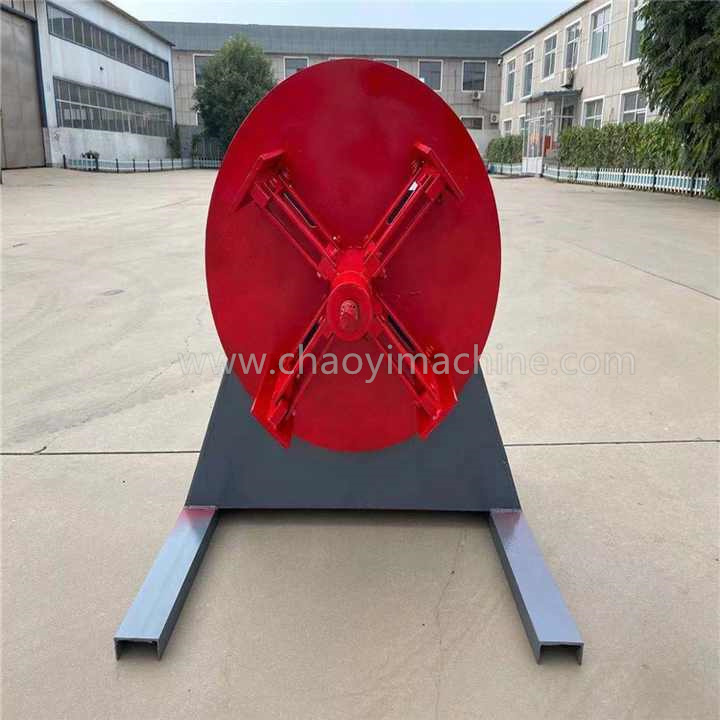

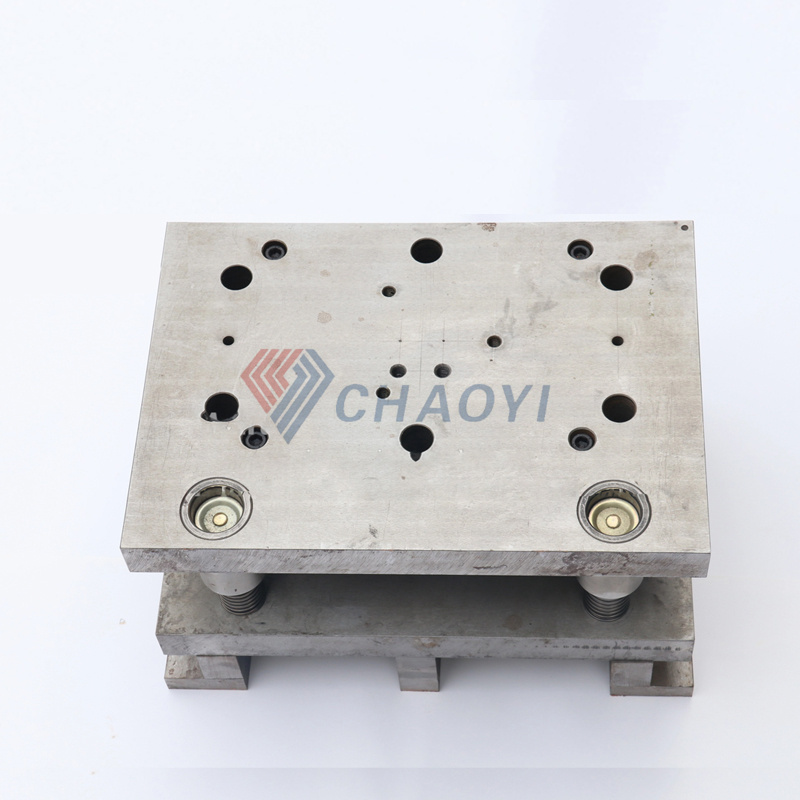

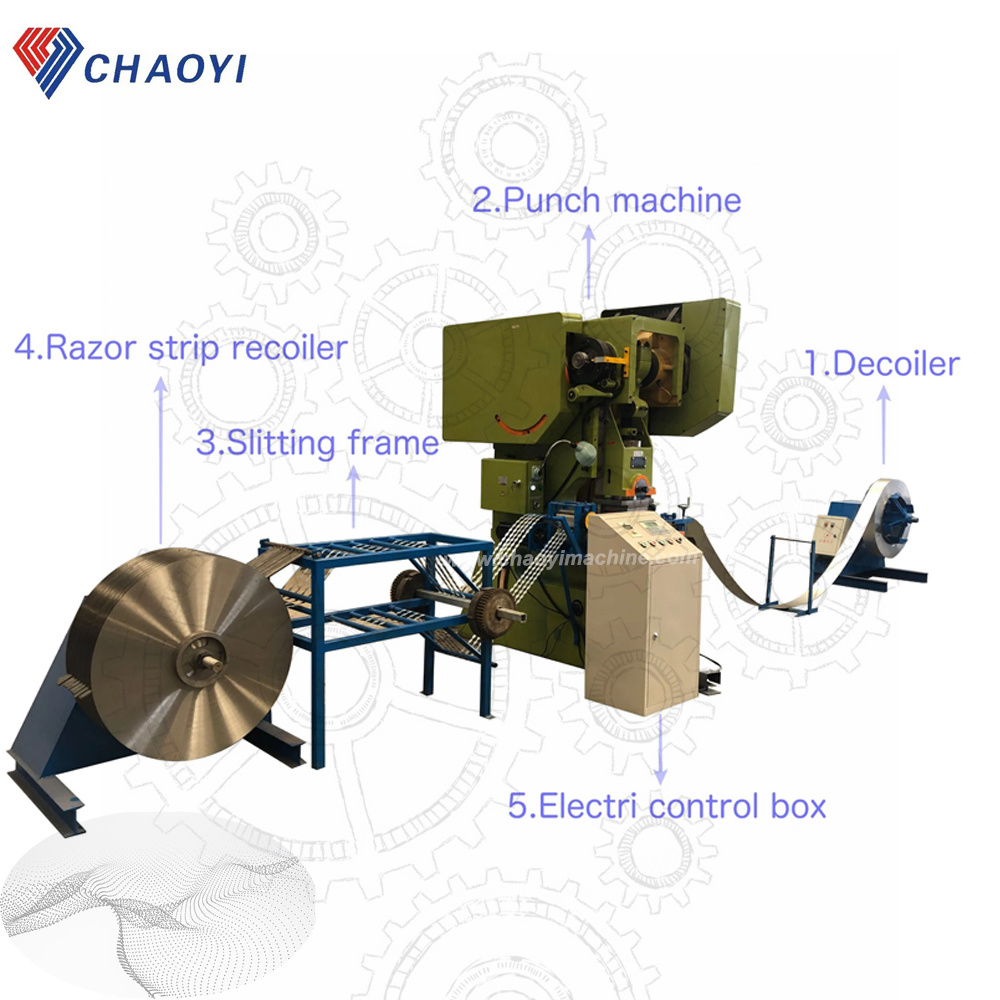

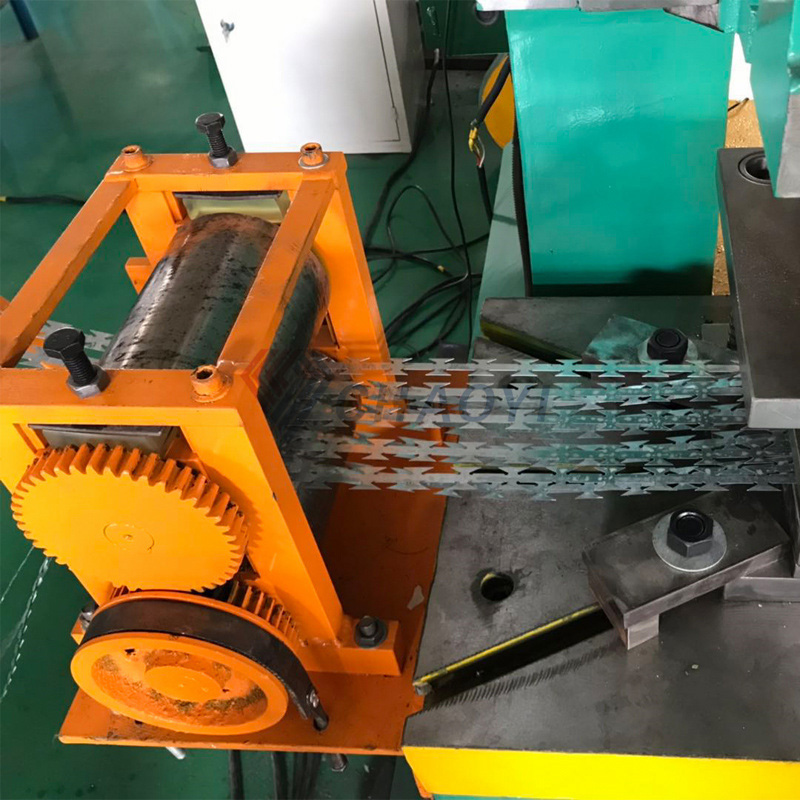

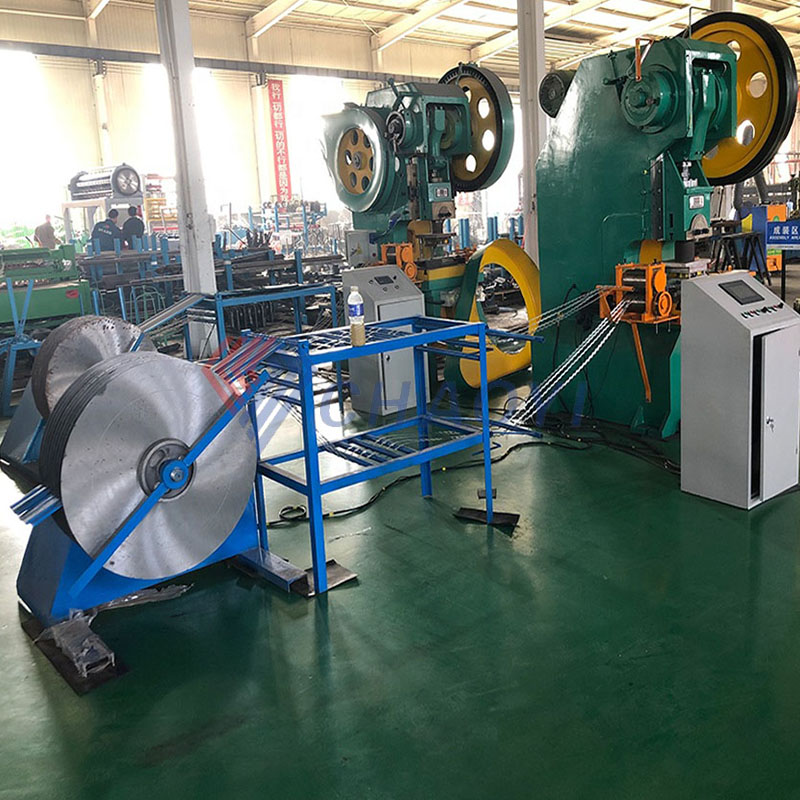

LINE1.stamping forming（the main machine producing strip plates） includes:De-colier （sheet uncoiler）----Automatic discharging machine，Punching Machine，Slitting frame---razor wire mould and Tension frame，Razor strip recoiler --Automatic feeder，electrical control box

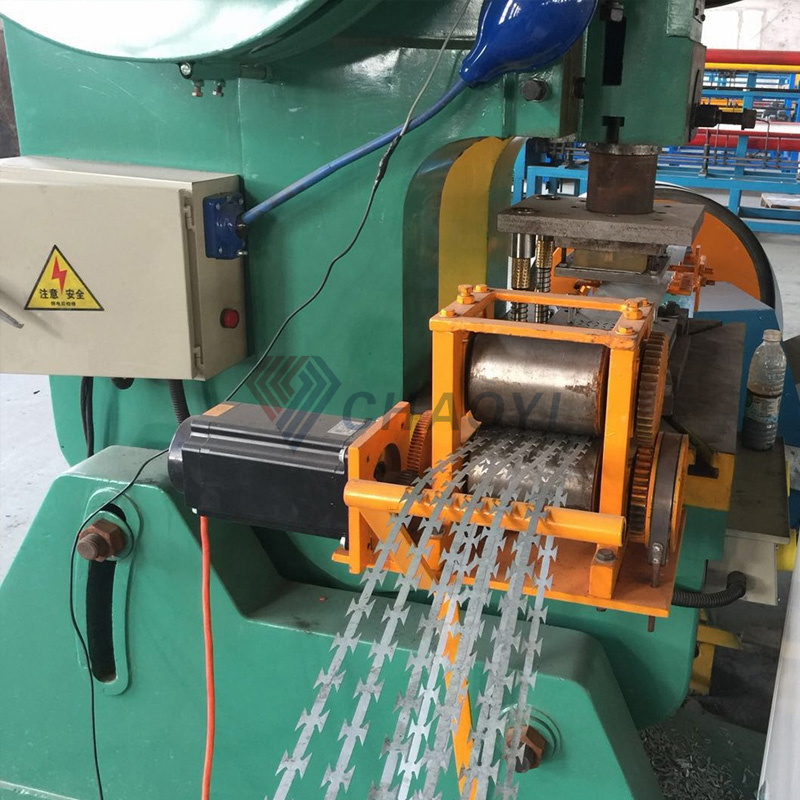

punching razor strip machine is used as punching the outside razor strip of razor wire.

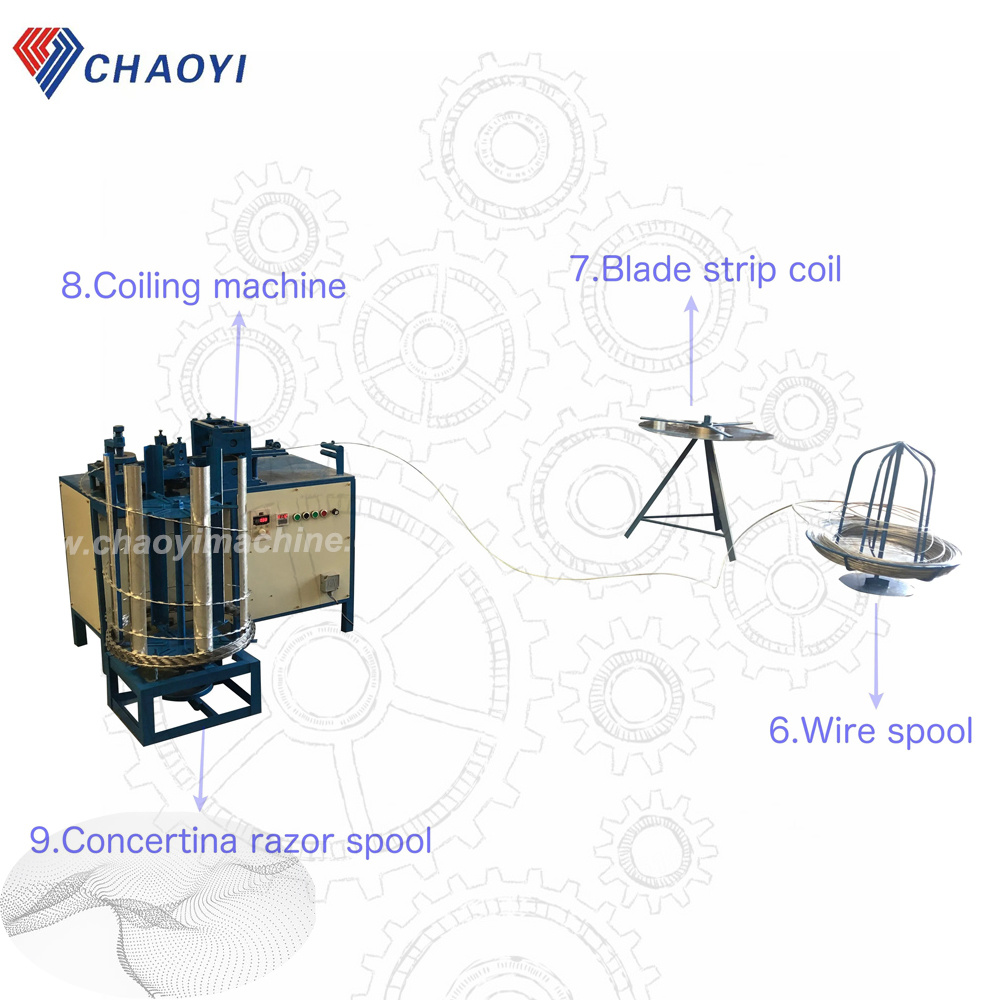

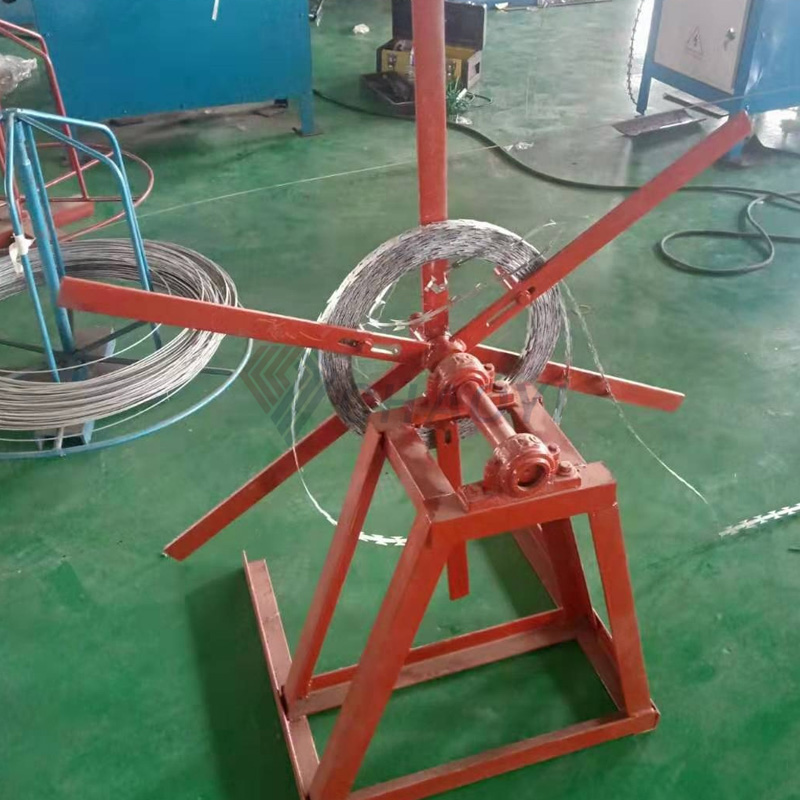

LINE 2.wrapping forming（the coiling machine that coils the wire into the strip plate）:wire spool （wire laying frame），blade strip coil （plate frame），Coiling machine---wrapping machine,concertina razor spool（forming frame）.coiling machine is used as coiling the wire into the razor strip to form the finished razor wire.LINE1..stamping forming（the main machine producing strip plates）

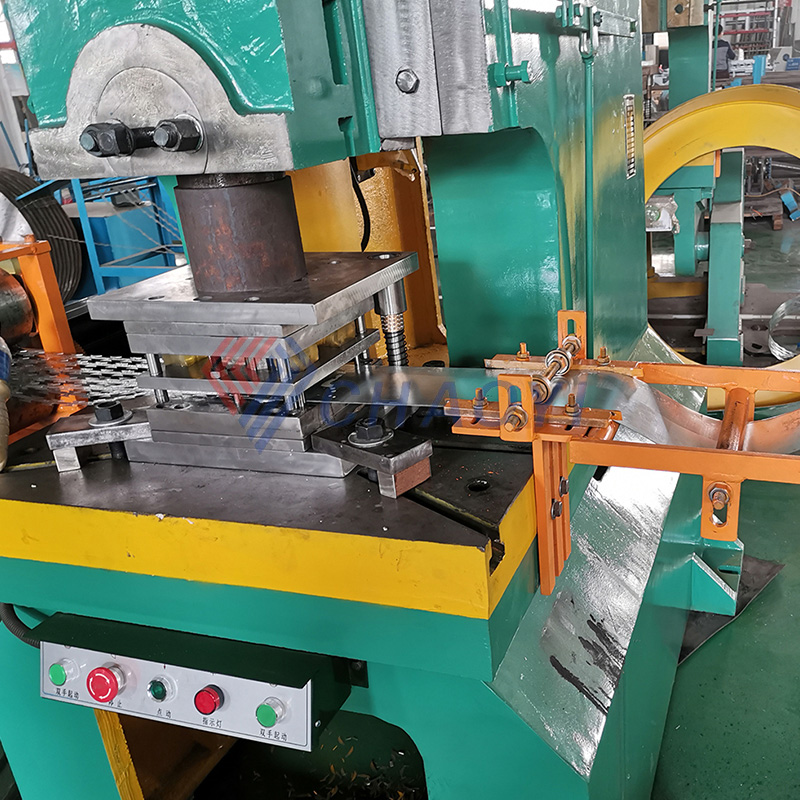

Punching machine Technique Parameter
Type Unit 5 strips 9 strips 11strips 40t punching press 63t punching press 63t punching press Producing Speed m/h 220-280*5 220-280*9 220-280*11 Power kw 2.2 3 5 Rated Voltage V2 HZ 380V 50HZ 380V 50HZ 380V 50HZ Weight t 1.9 3.2 4.5 Dimention mm 1325X990X2140 1600X1180X2310 1600x1180X2310
Technical Parameter
Reference Number
Blade Style
Thickness
Wire Dia
Barb
Barb
Barb
Length
Width
spacing
BTO-12
0.5±0.05
2.5±0.1
12±1
15±1
26±1
BTO-15
0.5±0.05
2.5±0.1
15±1
15±1
33±1
BTO-22
0.5±0.05
2.5±0.1
22±1
15±1
34±1
BTO-25
0.5±0.05
2.5±0.1
25±1
16±1
40±1
BTO-30
0.5±0.05
2.5±0.1
30±1
18±1
45±1
CBT-60
0.6±0.05
2.5±0.1
60±2
32±1
100±2
CBT-65
0.6±0.05
2.5±0.1
65±2
21±1
100±2

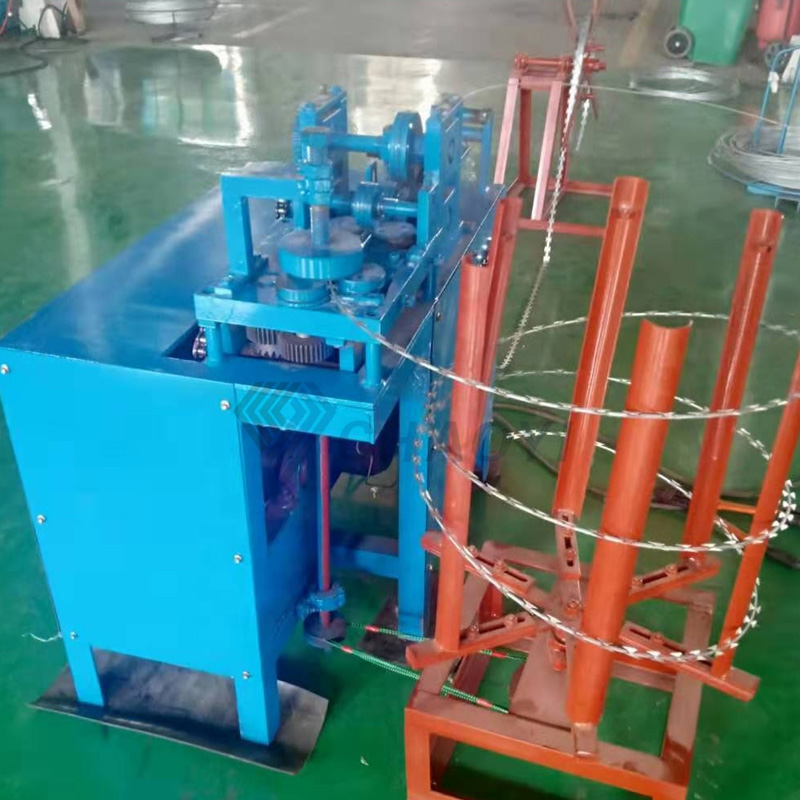

LINE 2 : wrapping forming（the coiling machine that coils the wire into the strip plate）
Coiling machine Technique Parameter

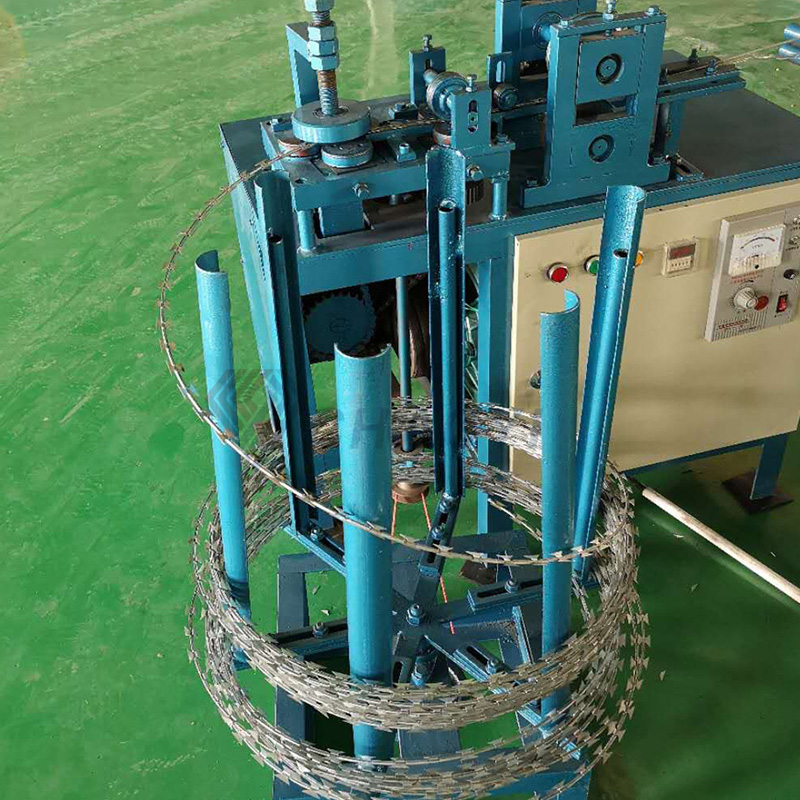

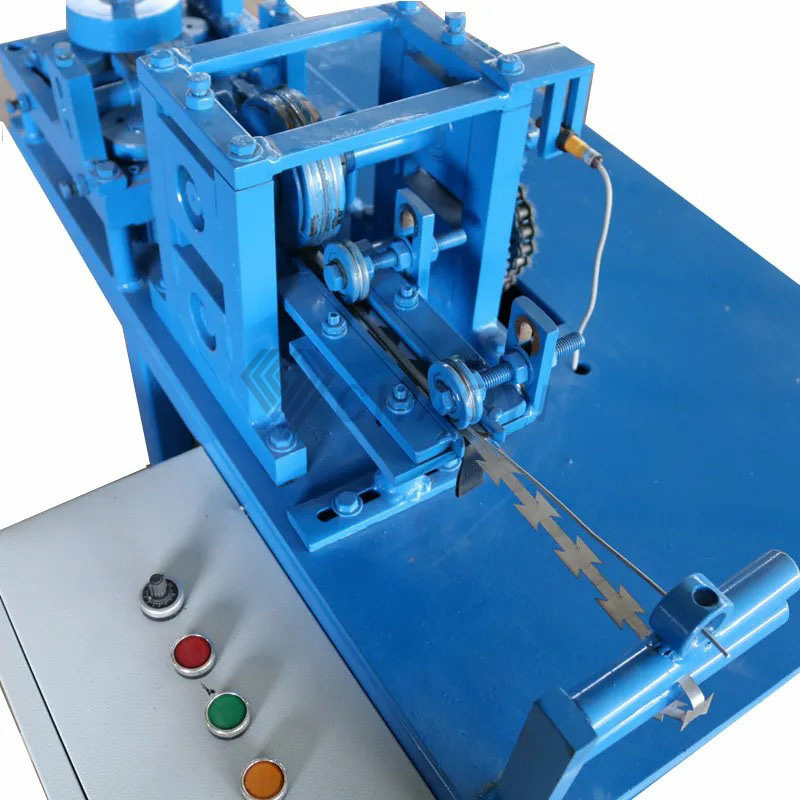

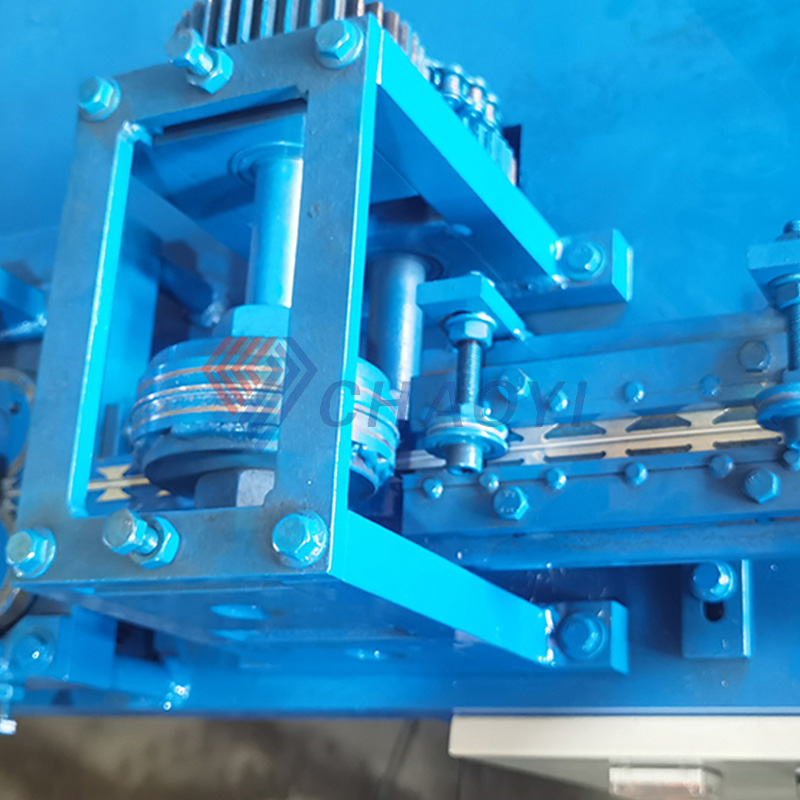

Voltage 380V, 50Hz,or client's required voltage Power 1.5kw Producing speed 80Kg/h Wire diameter 2.5mm Weight 300Kg Dimension 1100mmx750mmx1200mm Coiling machine detail
