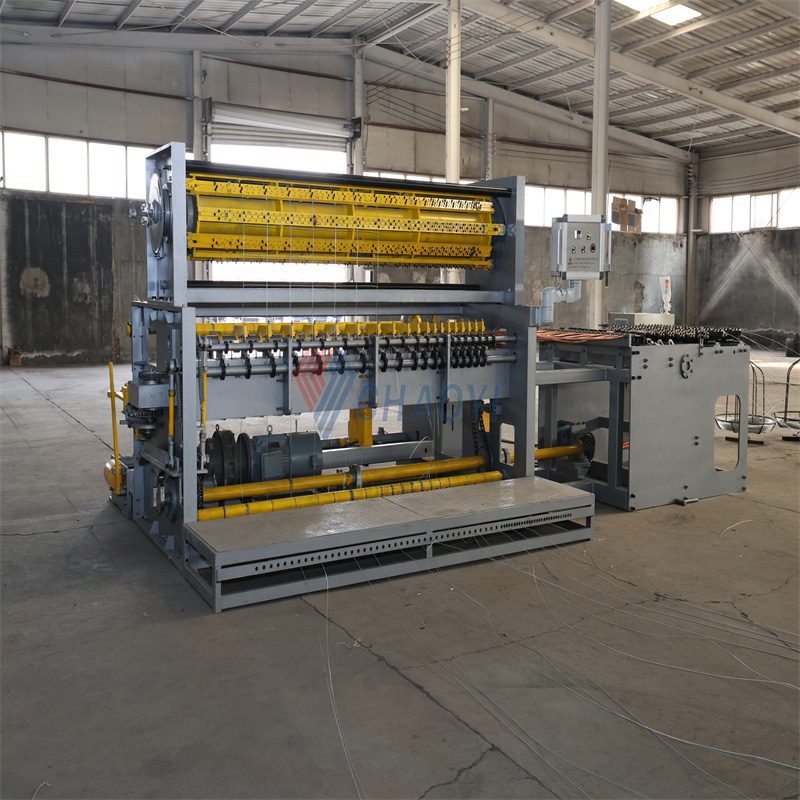

Europe Type Hinge Joint Fence Machine
Still deciding? Get samples first, Contact US !
View similar products
- Product description
-
◆ The new grassland fence mesh machine improves the ordinary machinery by introducing European technology.
◆ The main advantage of the new technology is to reduce the failure rate and increase the production efficiency. The most important thing is that it can produce 50 mm mesh size, and the mesh is flat and beautiful.◆ The grassland fence machine is also called field fence machine, cattle fence machine or farm fence machine. This machine can produce a grassland fence that is widely used for preventing environmental balance, preventing landslide and used as a livestock fence.
◆ Security Construction Wire Mesh Fence Machine adopts sophisticated computer control, advanced manufacturing techniques.It has the features of novelty, the high degree of automation, reliability and operational safety, long life and easy operation.
Technical Parameter

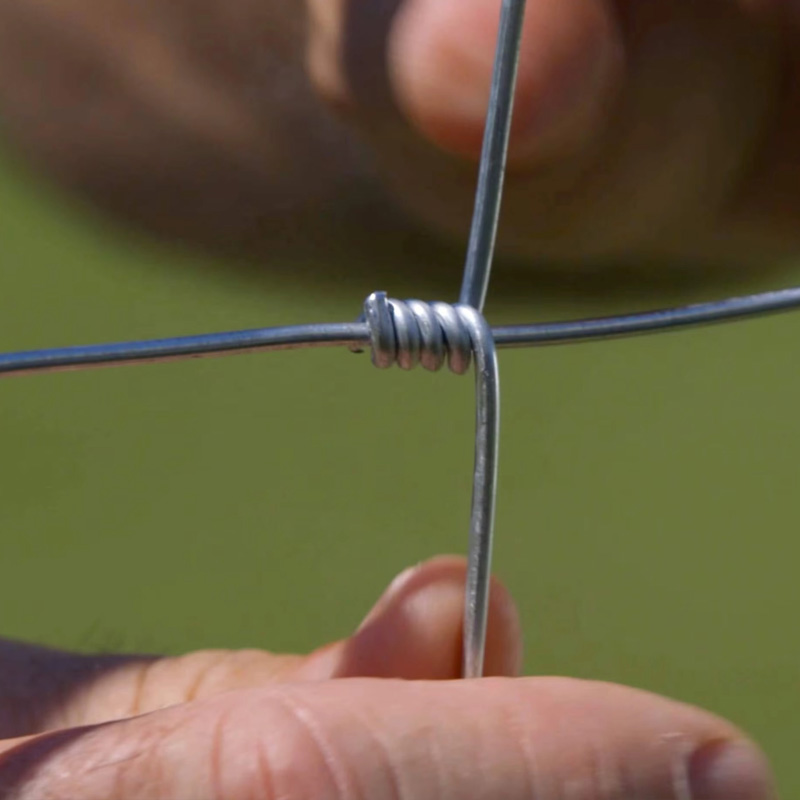

Hinge joint fence
machine ParameterCY-1422 CY-1652 CY-1880 CY-2000 CY-2400 Inner wire
diameter1.8mm-2.5mm 1.8mm-2.5mm 1.8mm-2.5mm 1.8mm-2.5mm 1.8mm-2.5mm Edge wire
diameter2.0mm-3.5mm 2.0mm-3.5mm 2.0mm-3.5mm 2.0mm-3.5mm 2.0mm-3.5mm Fence height 1422mm 1652mm 1880mm 2000mm 2400mm Efficiency 45row/min 45row/min 45row/min 45row/min 45row/min Motor 5.5KW 5.5KWV 7.5KW 7.5KW 7.5KW Voltage Can choose Can choose Can choose Can choose Can choose Distance of
weft wires(mm)5cm-60cm 5cm-60cm 5cm-60cm 5cm-60cm 5cm-60cm Distance of

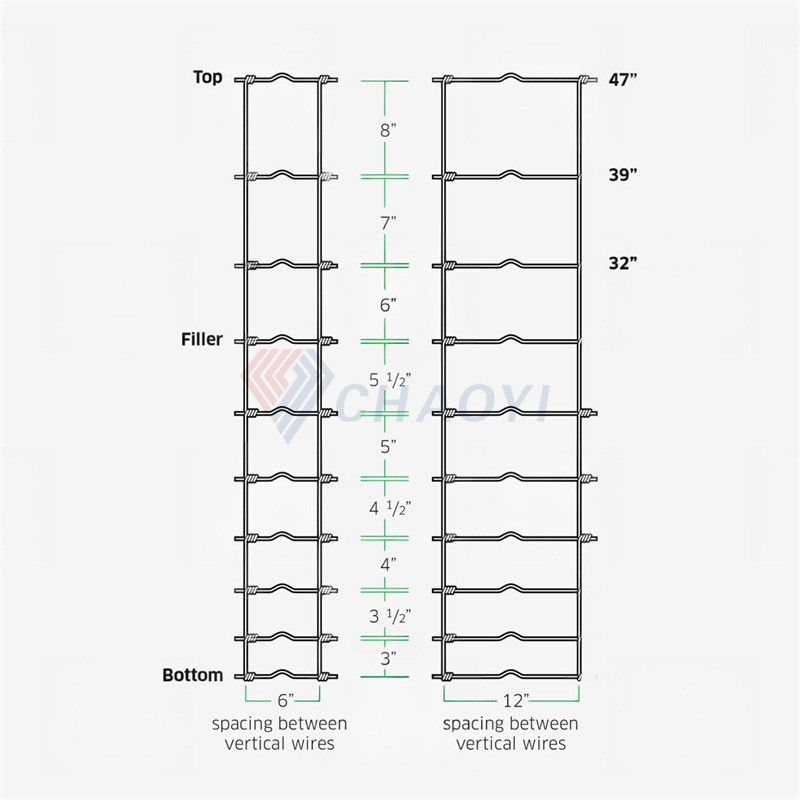

warp wires(mm)89+89+101+
114+127+140+
153+178+
203+229
89+89+101+114
+127+140+153
+178+203+
229+229
89+89+101+
114+127+140
+153+178+203
+229+229+229
13x100+2x150
+2x200
15x100+2x150
+3x200
Weight 3.2T 3.4T 3.9T 4.1T 4.9T Dimensions(m) 2.9x3.0x2.4 3.2x3.0x2.4 3.4x3.0x2.4 3.5x3.0x2.4 3.9x3.0x2.4 Machine Features
1.Hinge joint field fence machine is developed after many years our company has independentintellectual property rights, self-made.
2.lt uses sophisticated computer control, advanced production technologyNew style Technology upgrade hinge joint field fence machine grassland fence machine
3.With novelty, high degree of automation, operational safety and reliability, easy operation, long life and low prices
4.Product neat and beautiful. diverse specifications
5.The warp holes can be crimped and no crimped.
● Adopts sophisticated computer control, advanced production technology It can weave the weft and warp wire automatically together to form the field fences
● Reliable property, high efficient, simple operation, low-cost maintenance.
● The finished products enjoy innovative structure, firm and precise weaving,neat and beautiful and diverse
● Specifications:Hinge Joint:savings worth the worth the price to have.
● Material: galvanized wire, low-carbon steel wire, steel wire, iron wire.
Product Details

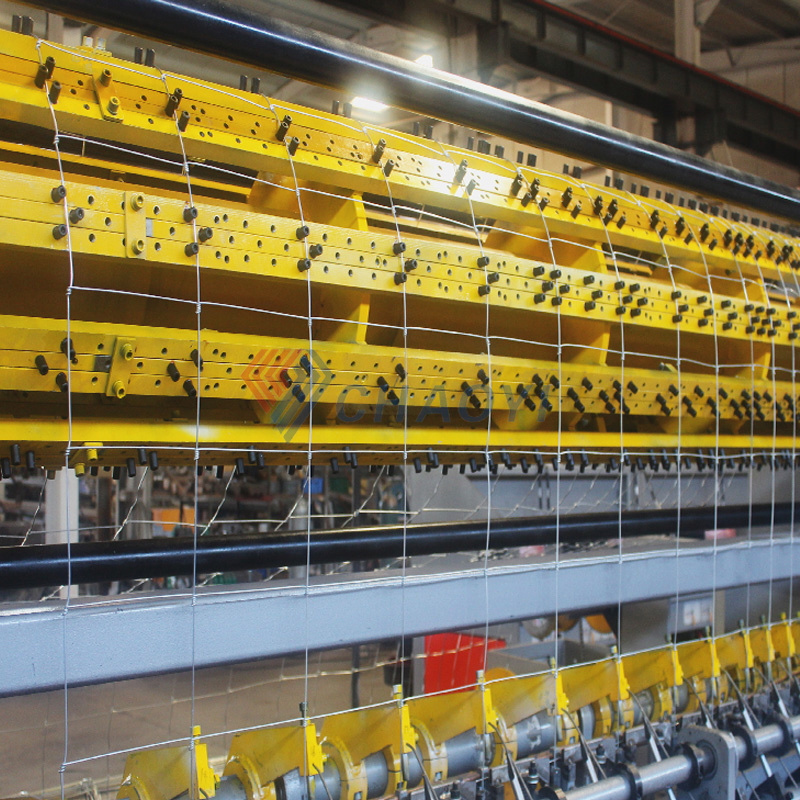

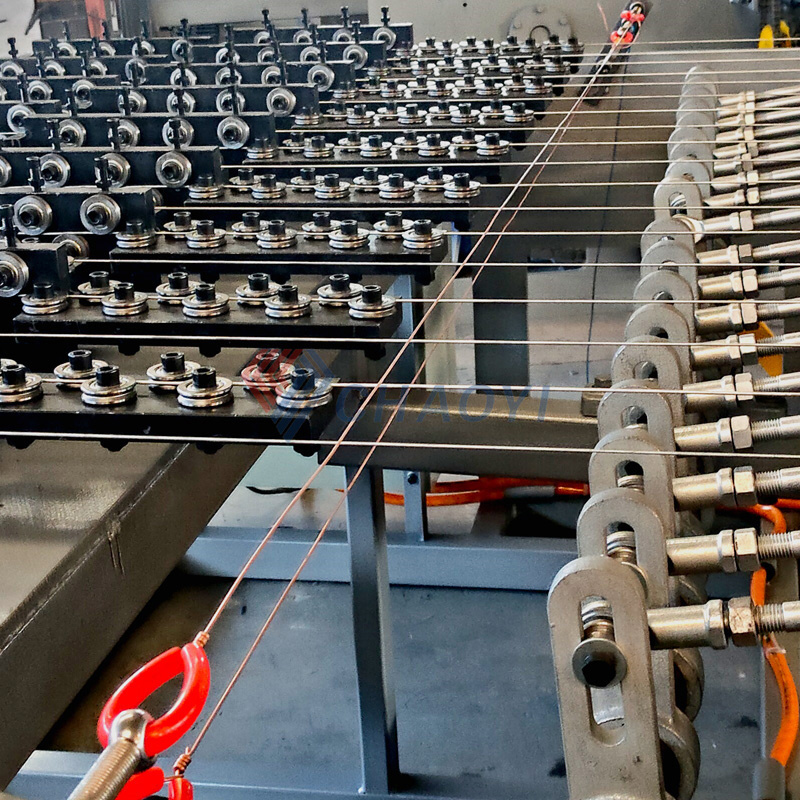

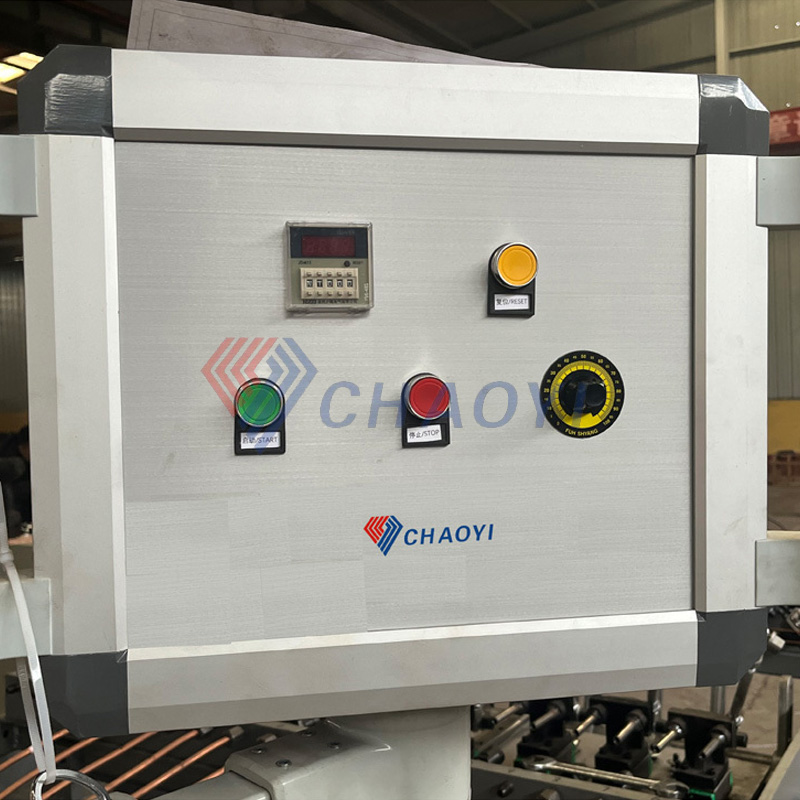

Controller Line wire straighten wheels instead of grooved rail.we adopt linear rail to push cross wire, less resistance,moving fast

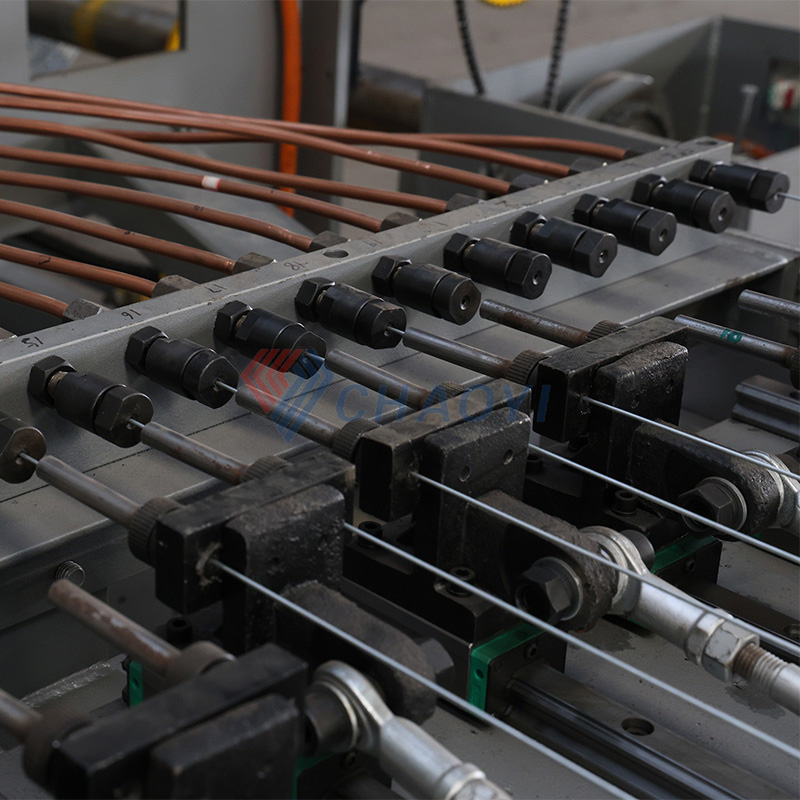

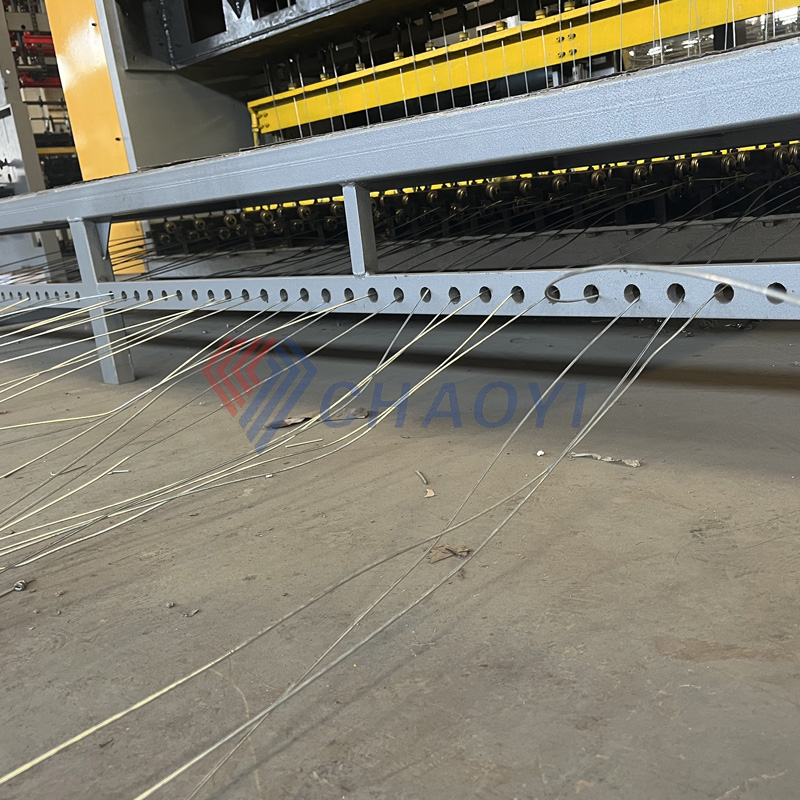

Special hole for line wire feeding, which is more tidy and flexible Special sensors to detect cross wire feeding, if wire broken, the machine will stop automatically Use the bending fence part to make the wire surface cleaner and firm

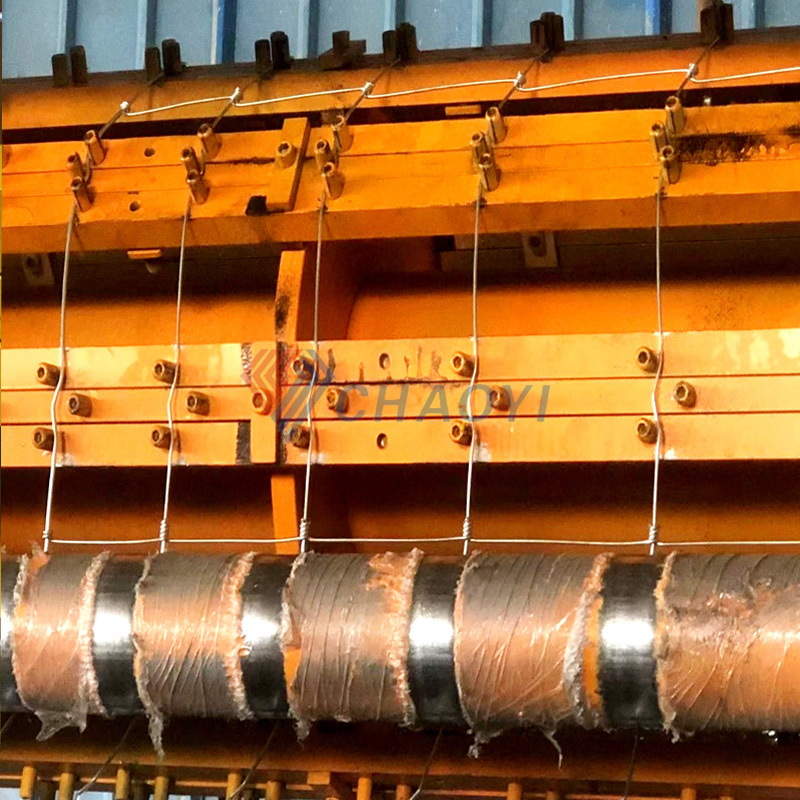

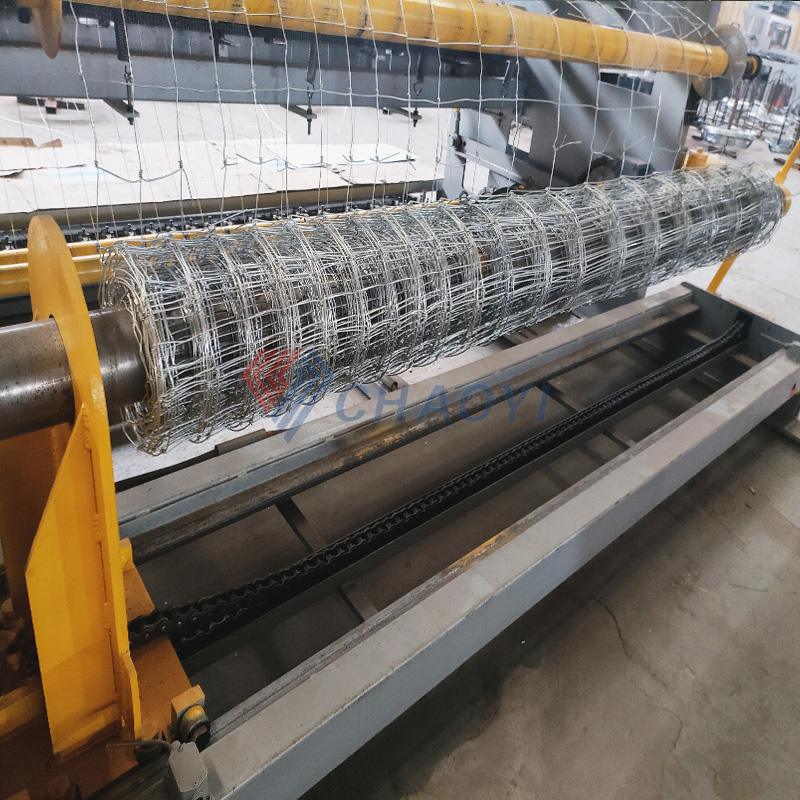

Mesh roller is easy to discharge and install can choose Bending fence detail
