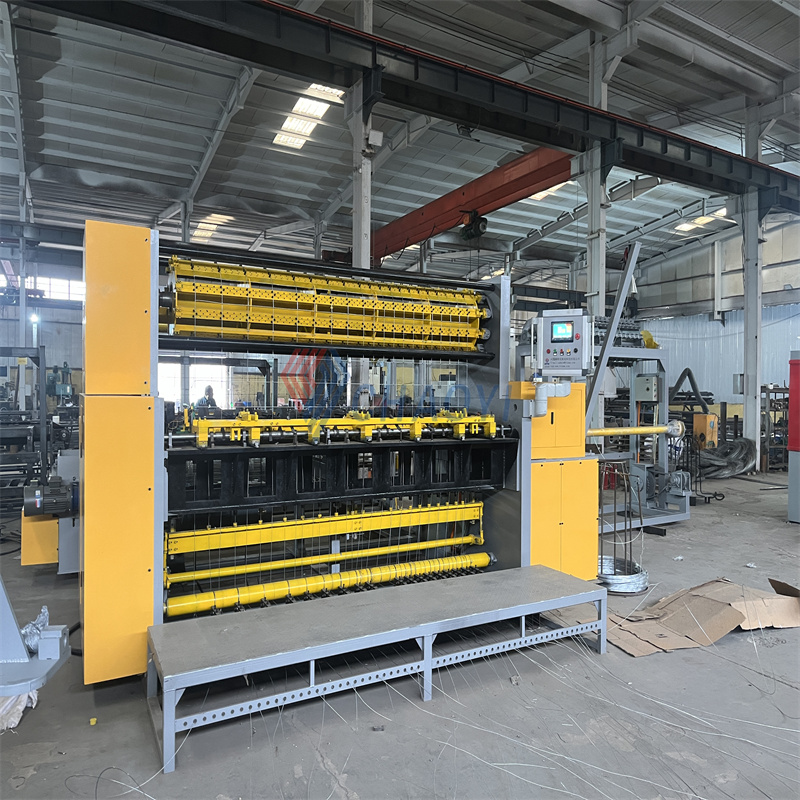

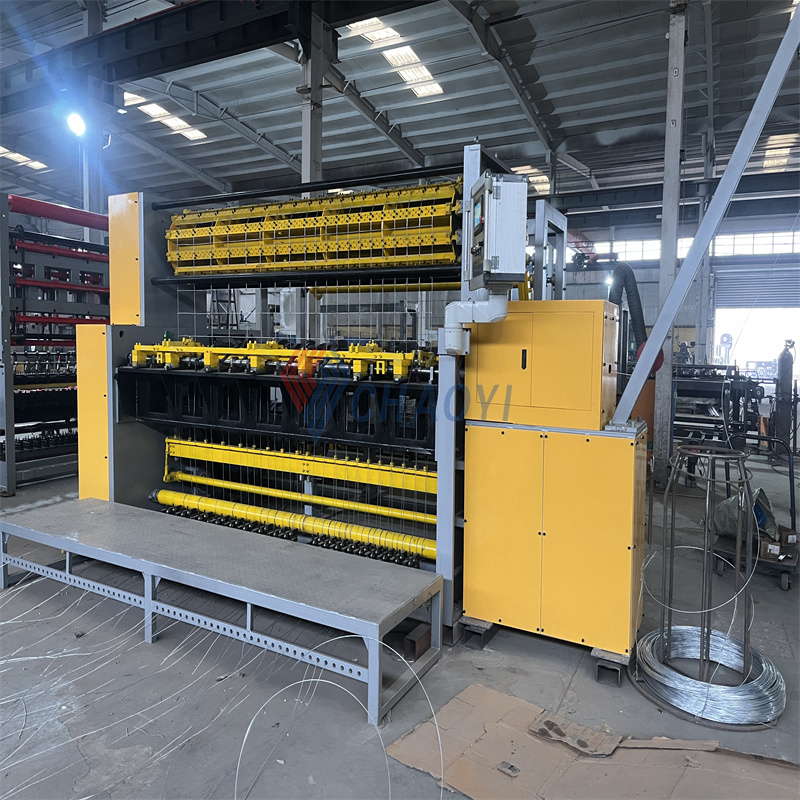

Full Automatic Stiff Stay Fence Machine
Still deciding? Get samples first, Contact US !
View similar products
- Product description
-

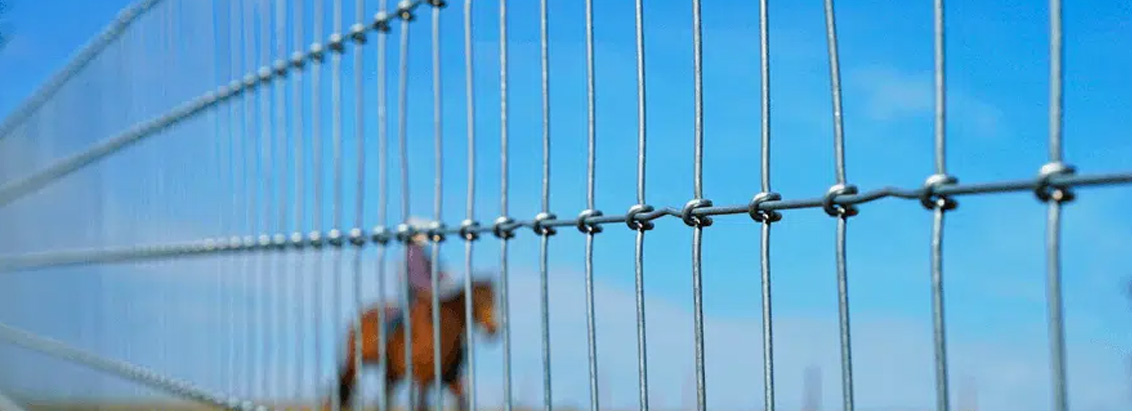

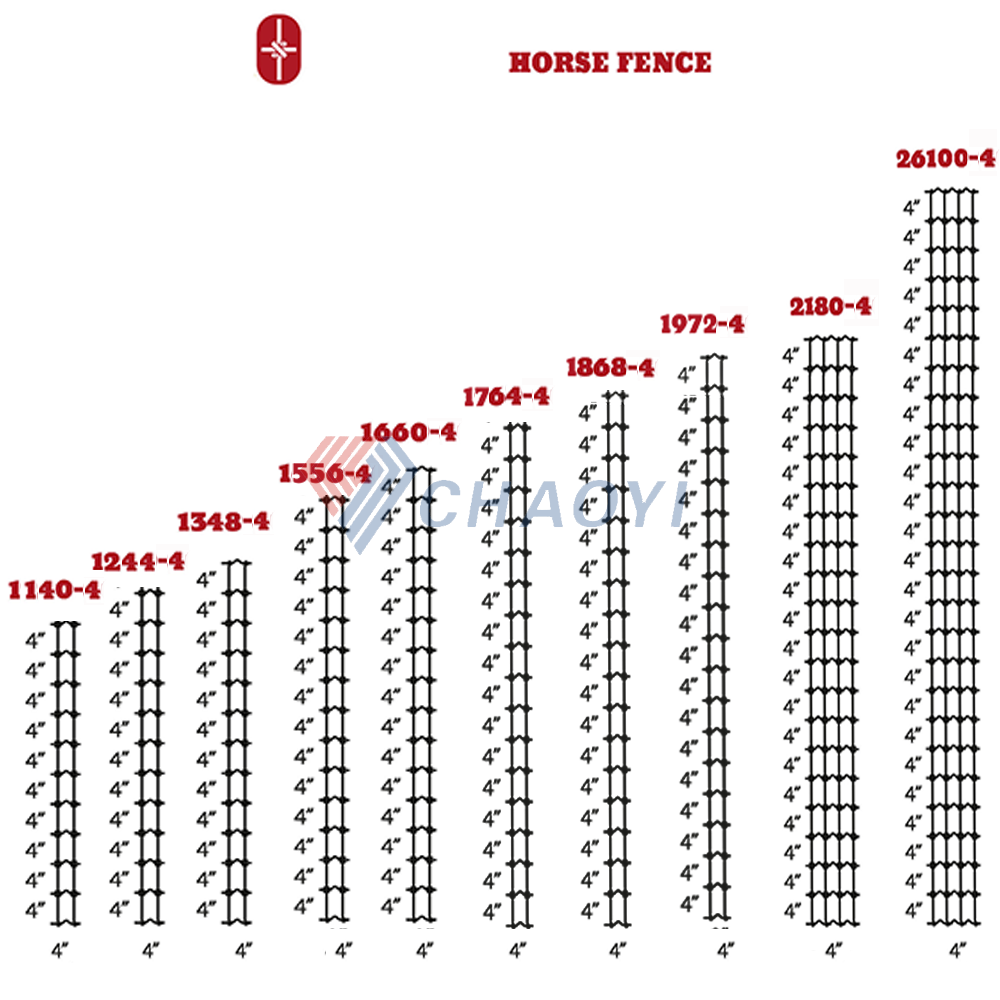

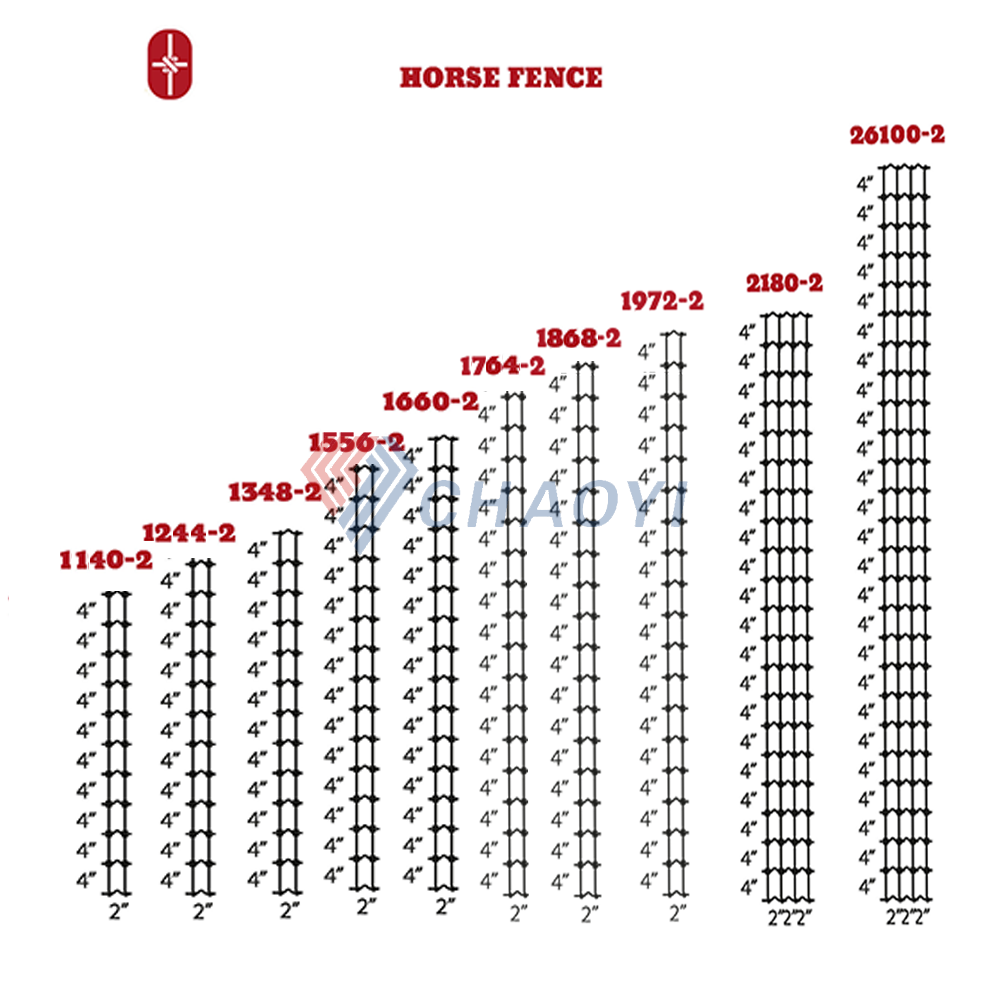

◆ The full automatic PLC Stiff Stay Knot fence machine knot was initially designed for the North American horse fence market,then known as the Square Deal or "S" knot This knot features a distinctive smooth.strong knot that utilise 75% less knot wire when compared to the Fixed Knot.
◆ This design ensures an economic and robust knot that cannot damage the animal's pelt.
Product Description

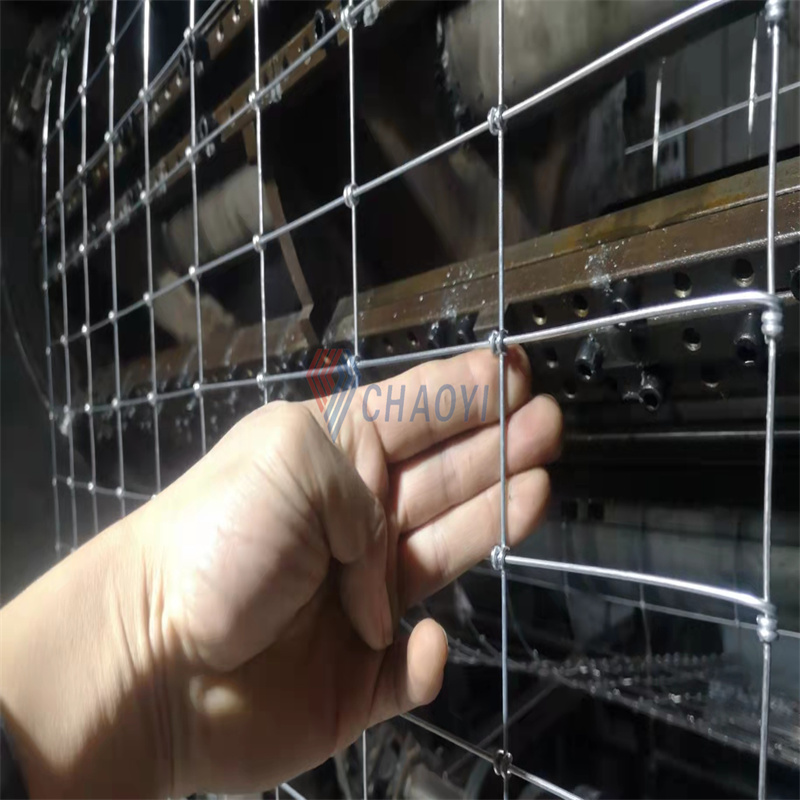

1.The forging process guarantees the knot-wire is pressed and locked into position underneath the stay-wire, hiding the ends, and ensuring no exposed sharp edges. This makes the knot especially suitable for the safe retention of valuable stock as pelts or hides cannot be damaged.
2.The Stiff Stay knot is square rather than rectangular, ensuring the line and stay-wire are evenly secured in place.
3.The Stiff Stay knot economically utilize 75% less knot-wire than its Fixed Knot counterpart.
4.The knot-wire is cut at a 45-degree angle, utilizing less knot-wire with no sharp
5.Wire coating damage is kept to a minimum during the forging process with the help of specialize engineered tooling.
Technical Parameter
Model
Parameters
18-2080
20-2438
Maximum Fence Width
2080mm (82")
2438mm(96")
Maximum number of Line Wires
18
20
Line Wire Spacing
Minimum 50mm(2") with 25mm (1") increments
Stay Wire Spacing
50mm,75mm,100mm, 150mm,225mm and 300mm
Edge Wire Size
φ2.0mm-3.0mm
Line Wire Size
φ2.0-2.5mm
Stay Wire Size
φ2.0-2.5mm
Knot Wire Size
φ2.0mm-φ2.5mm
Line Wire Tensile Range
850-1350N/mm2
Stay Wire Tensile Range
525-850N/mm2
Knot Wire Tensile Range
400-525N/mm2
Max Length of roll
100m/ roll
No. Strokes (Stay Wires) Per Minute
30row/ min
Control system
servo motor,PLC
Total Machine weight
8T
10T
Approximate Floor Area Required
10m×22m
11m×22m
Product Details

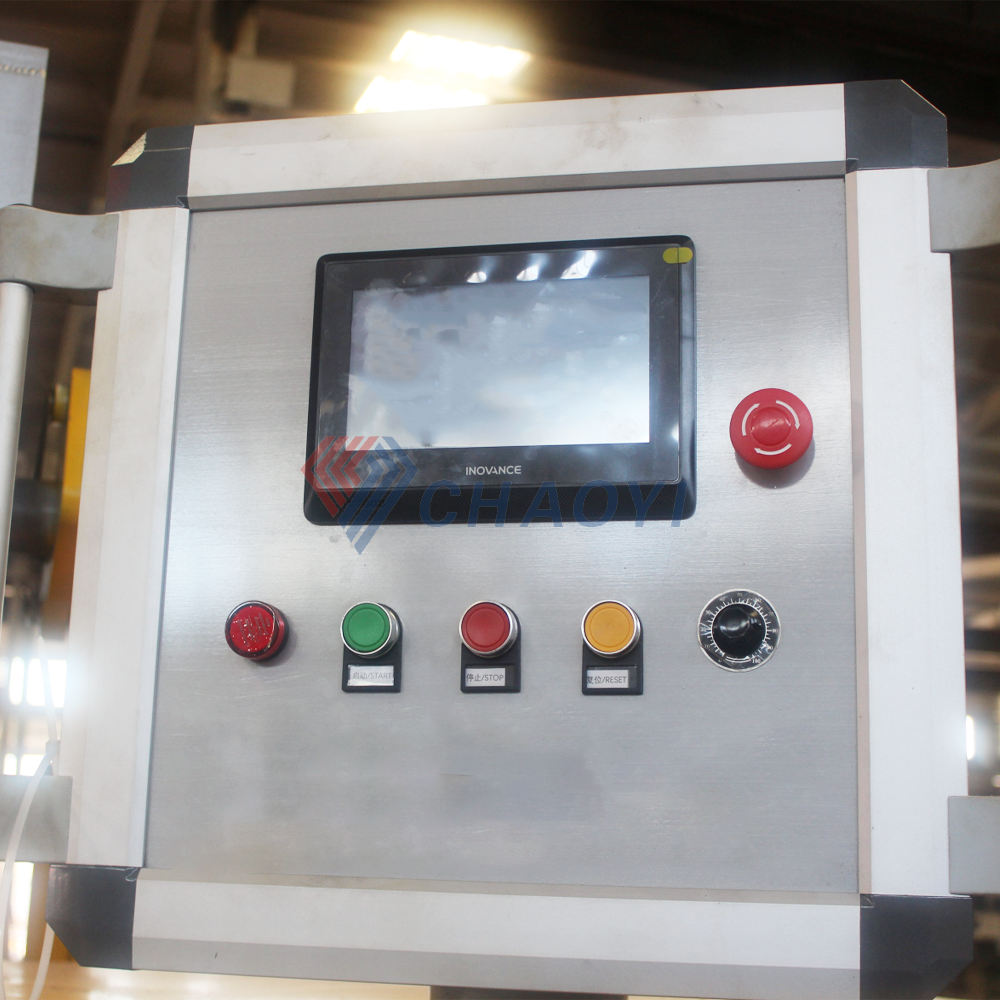

PLC Touch Screen Controller
easy setting and adjustment of the machine during operation as well as displaying real time manufacturing information and machine status.

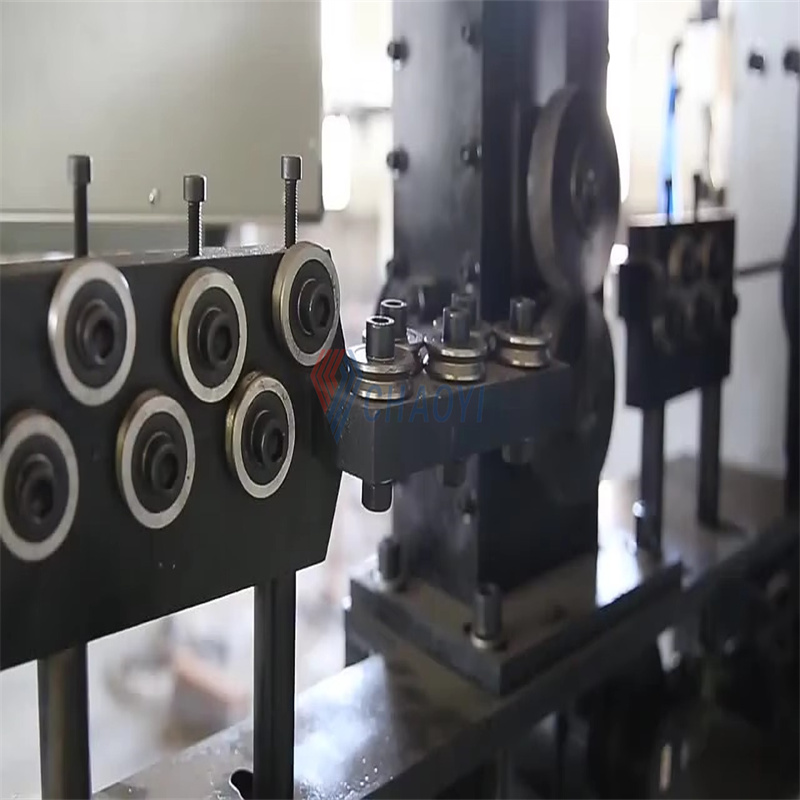

Line wire straighten wheels

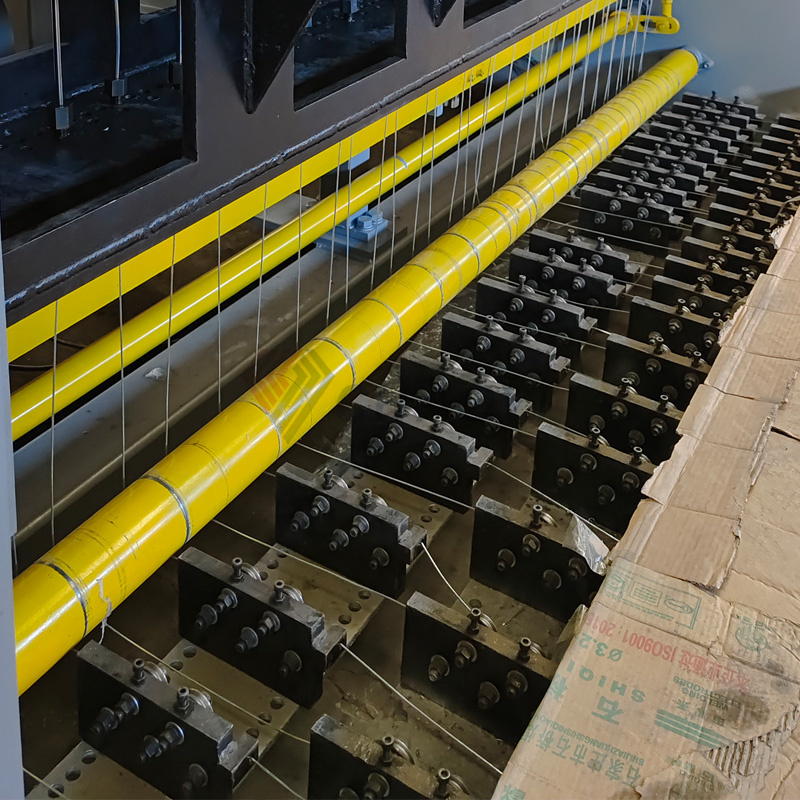

Input wire agency
Automatic Stiff Stay Fence Machine Input wire

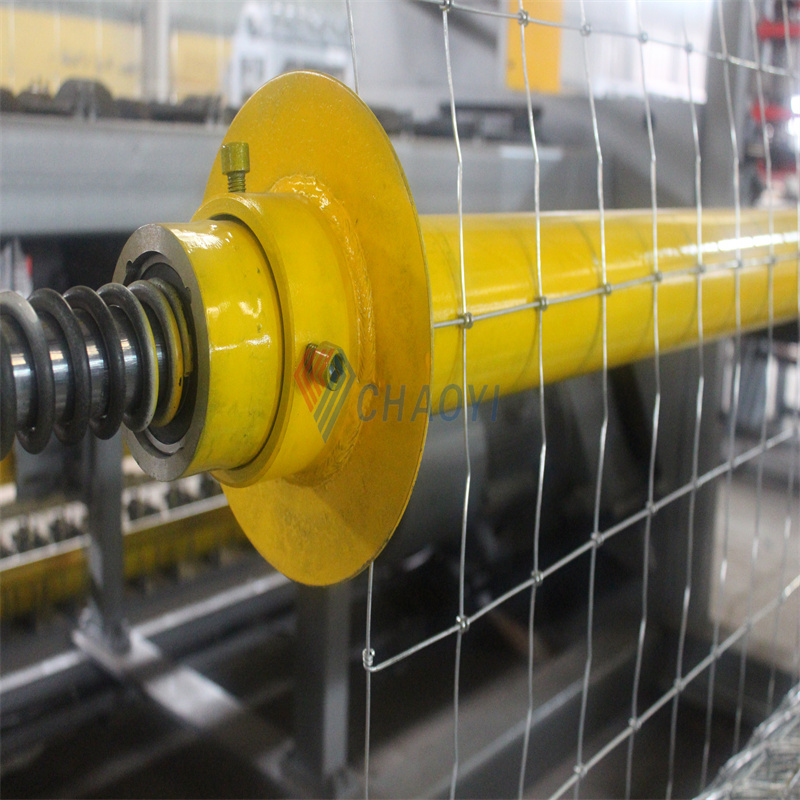

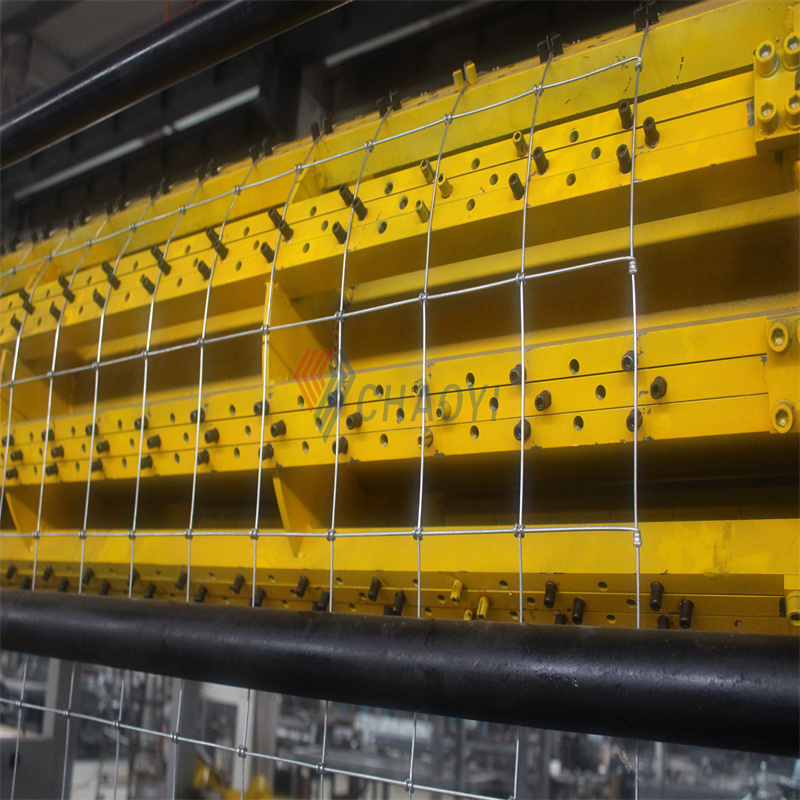

Weaing fence

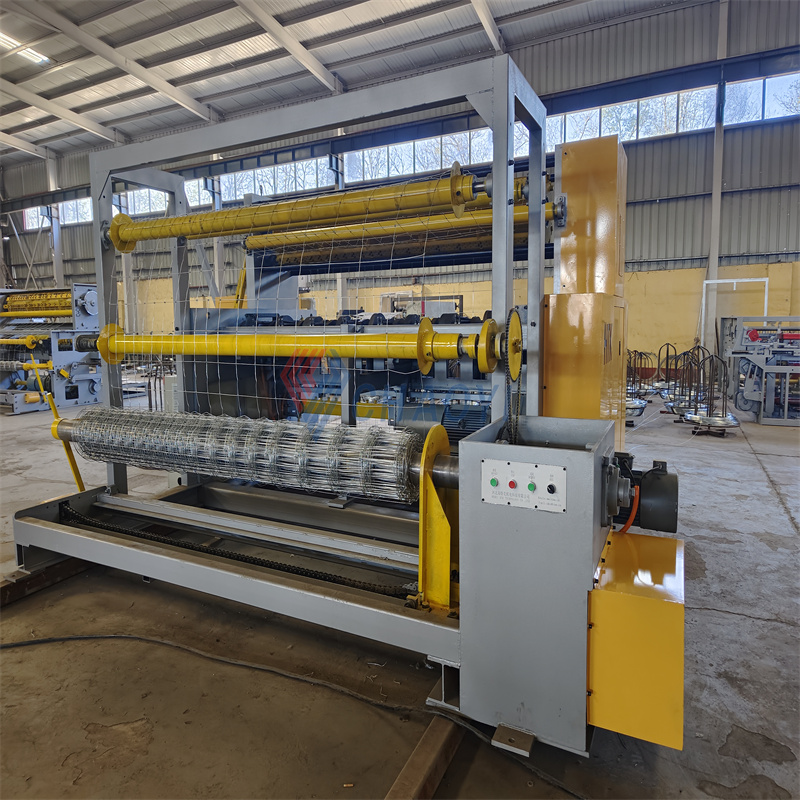

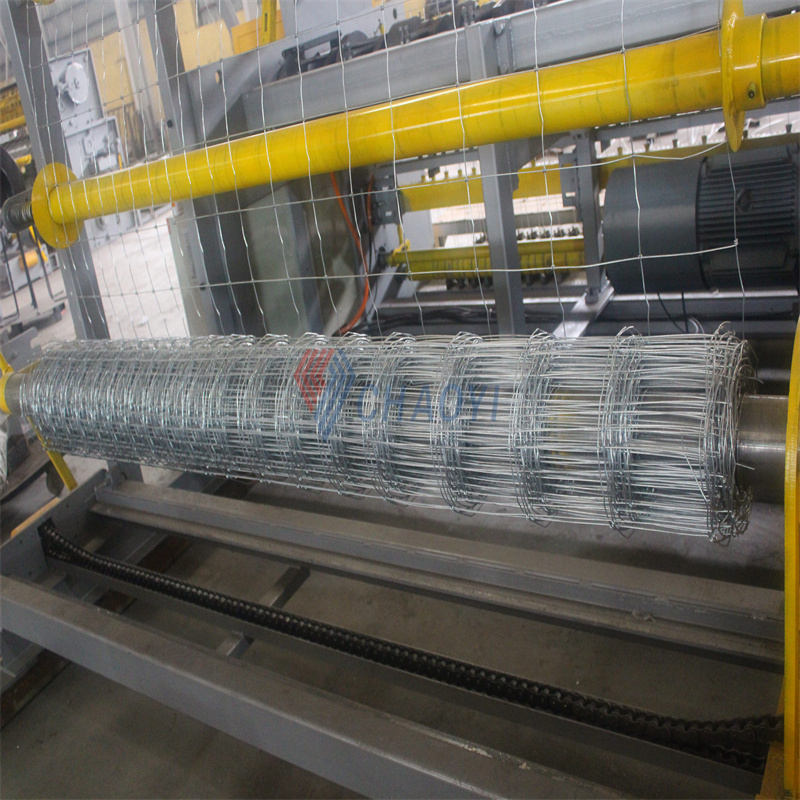

Use the bending fence part to make the wire surface cleaner and firm. Mesh roller is easy to discharge and install
