  • Product description

  • ◆ The barbed wire making machine is divided into double strand barbed wire making machine (CS-A), single strand barbed wire making machine (CS-B), Positive and negative twist barbed wire making machine （CS-C）, blade razor barbed wire machine.

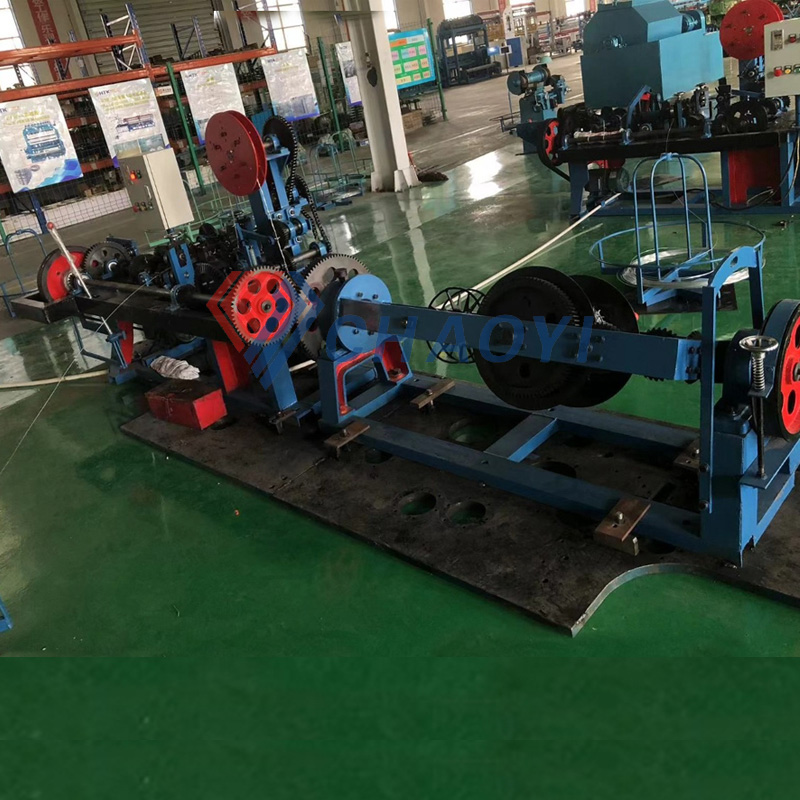

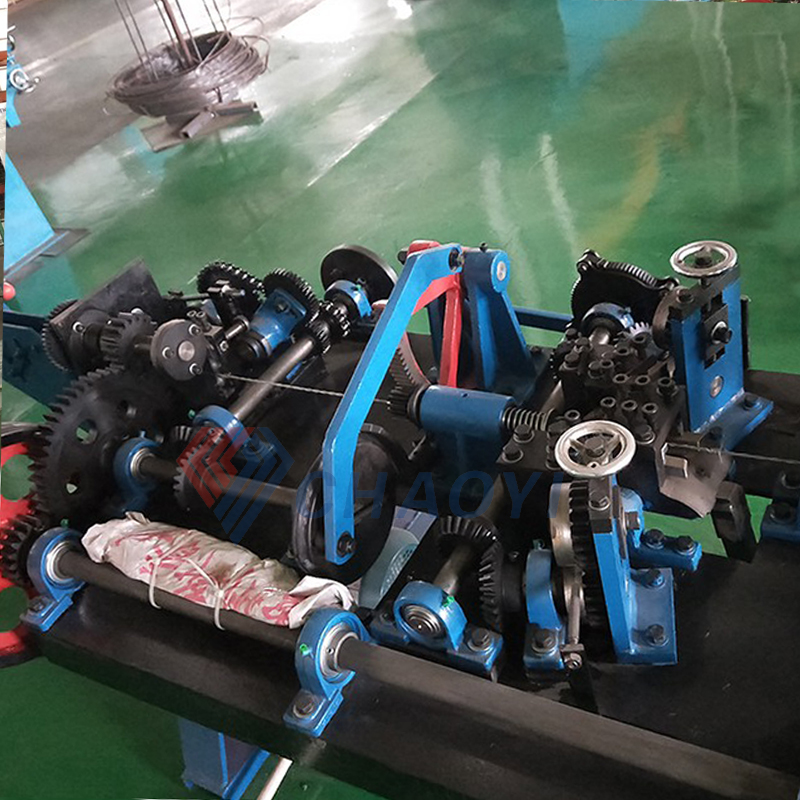

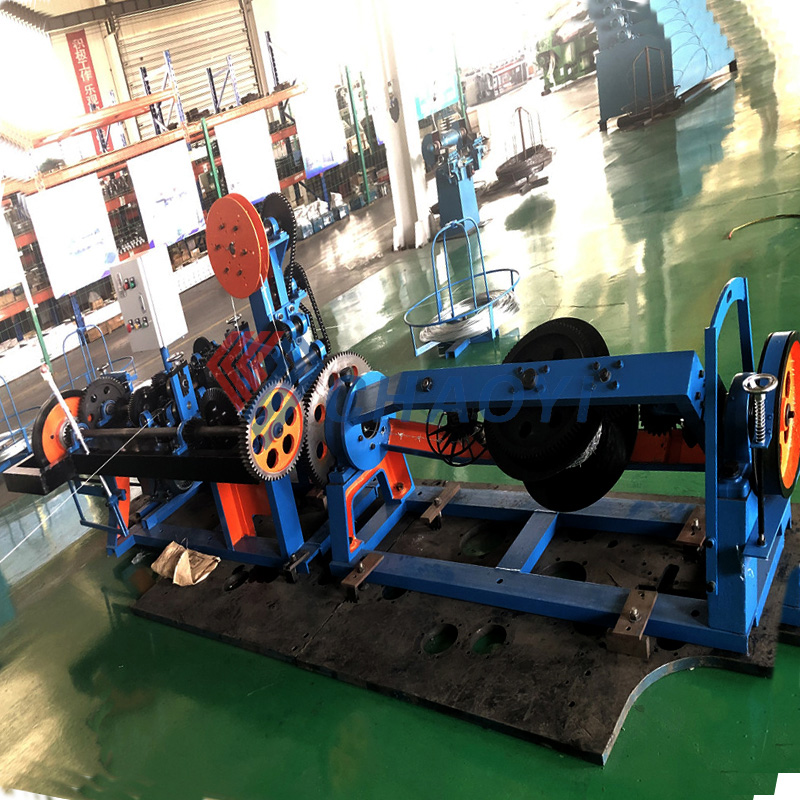

    ◆ Double strand barbed wire making machine (CS-A) is composed of two parts of winding and winding twisting, and is equipped with four wire coil. All parts of the machine work coordinately and move smoothly. The machine is mainly suitable for producing various kinds of multi strand barbed wire.
    ◆ Double strand barbed wire making machine (CS-A) has the advantages of easy operation, smooth movement, low noise and low energy consumption, and adopts advanced electronic recording and control system.
    ◆ The products produced by this machine are widely used in national defense, railways, highways, farming and animal husbandry for protection and fencing.



    Technical Parameter

    Double wire barbed wire making machine （CS-A)
    Wire diameter 1.6-3.0mm
    Barb diameter 1.6-2.8mm
    Main drive shaft speed 402 r/min
    Twist number 3--5
    Wire tensile strength 400-600N/mm²
    Barb separation distance 3'(75mm) 4'(100mm) 5'(125mm) 6'(150mm)
    Producing speed 675m/h 900m/h 1125m/h 1350m/h
    Capacity 70kg/h
    Power 3KW 380V customized
    Dimension of main part 2010*1100*1300mm

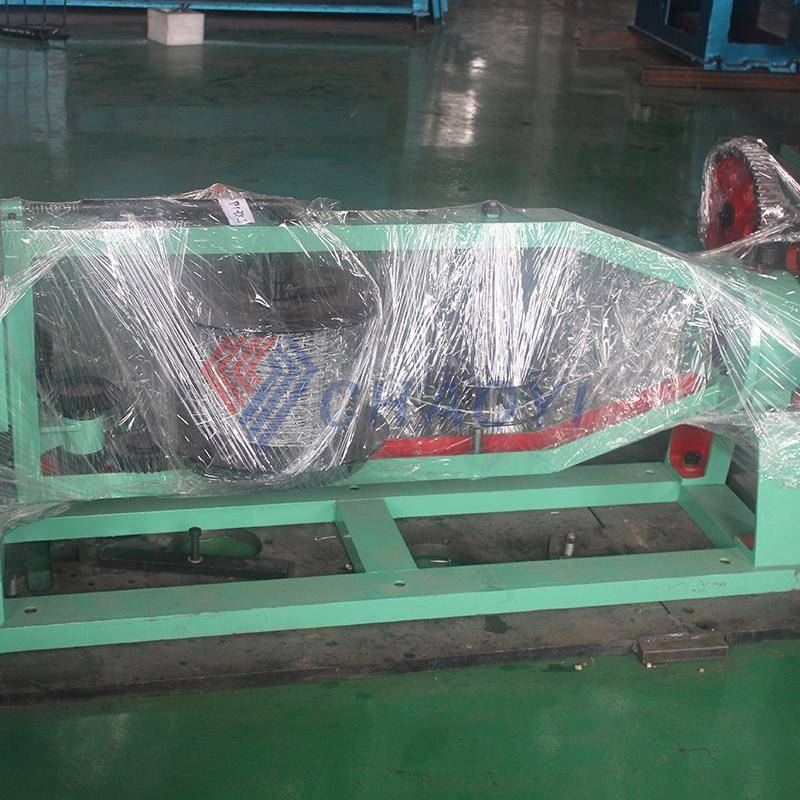

    Dimension of taking-twisting part 1760*550*760mm
    Weight 1000kg

    Features

    ● Thickened body. The machine is made of thickened materials and has a solid structure and high-quality components, which can extend the machine’s service life and resist wear and corrosion.
    ● Production monitoring. The control panel display tracks operating speed, productivity, failures, and other metrics to optimize throughput.
    ● Automatic stop. The machine is equipped with sensors that trigger an automatic stop if there is a problem, such as a broken line, to prevent waste and ensure operator safety.
    ● Easy to maintain. Modular components with quick-access panels enable routine maintenance and parts replacement, reducing downtime and extending usage.
    ● High speed production. Barbed wire machines can produce 600-1,000 feet of continuous barbed wire per minute, enabling efficient mass production.
    ● Automated operation. Programmable controllers automate wire feeding, barbing, twisting, and winding with precision and consistency.
    ● Barb spacing adjustment. The machine often adjusts the spacing between barbs, allowing the user to customize the wire to specific needs.

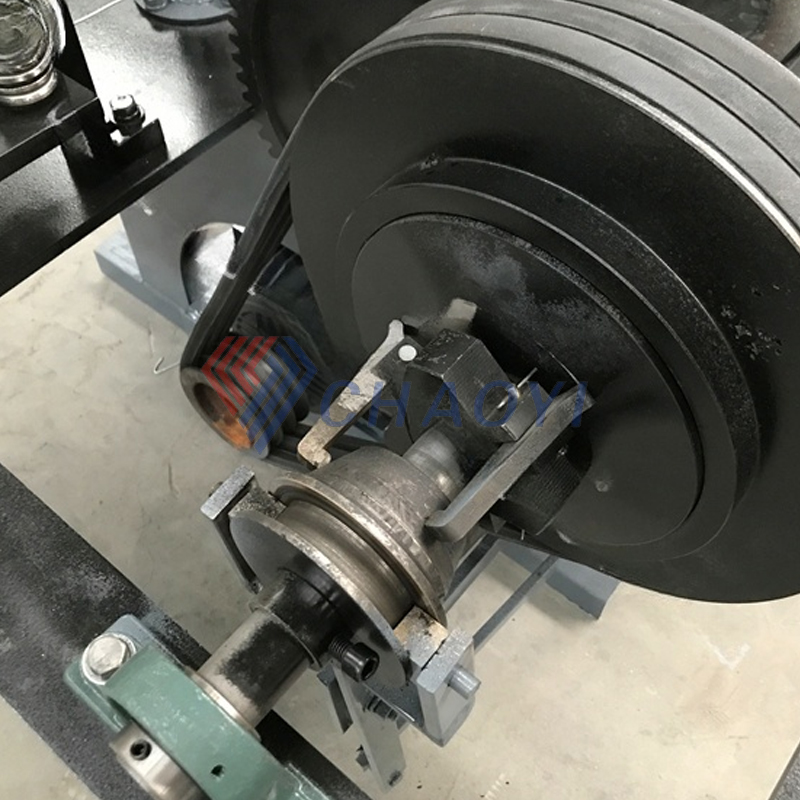

    Product Details

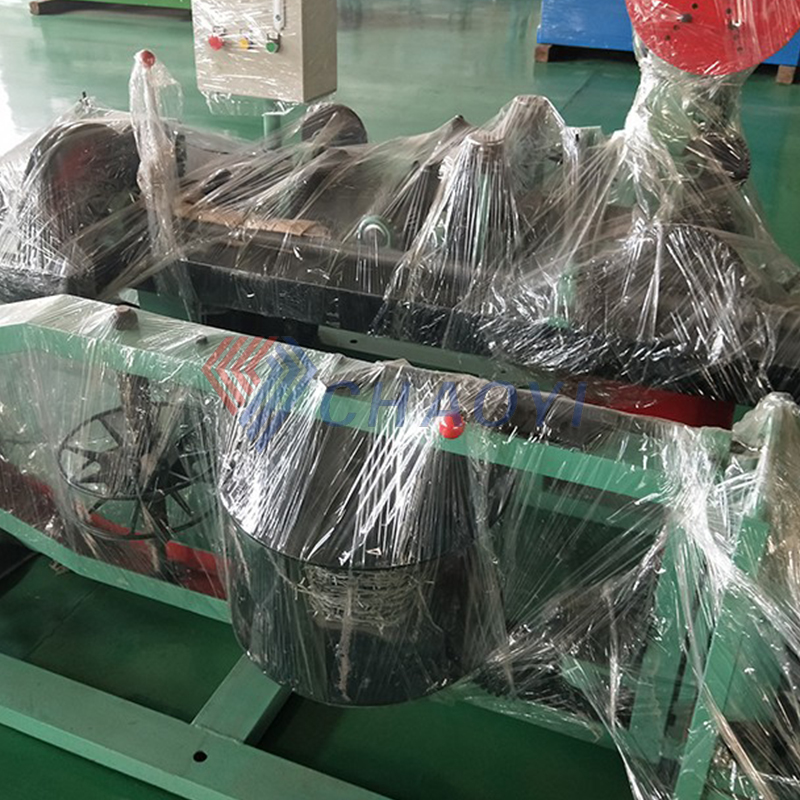

    Packing and shipping
