Full Automatic Double Wire Chain Link Fence Machine
Still deciding? Get samples first, Contact US !
View similar products
- Product description
-

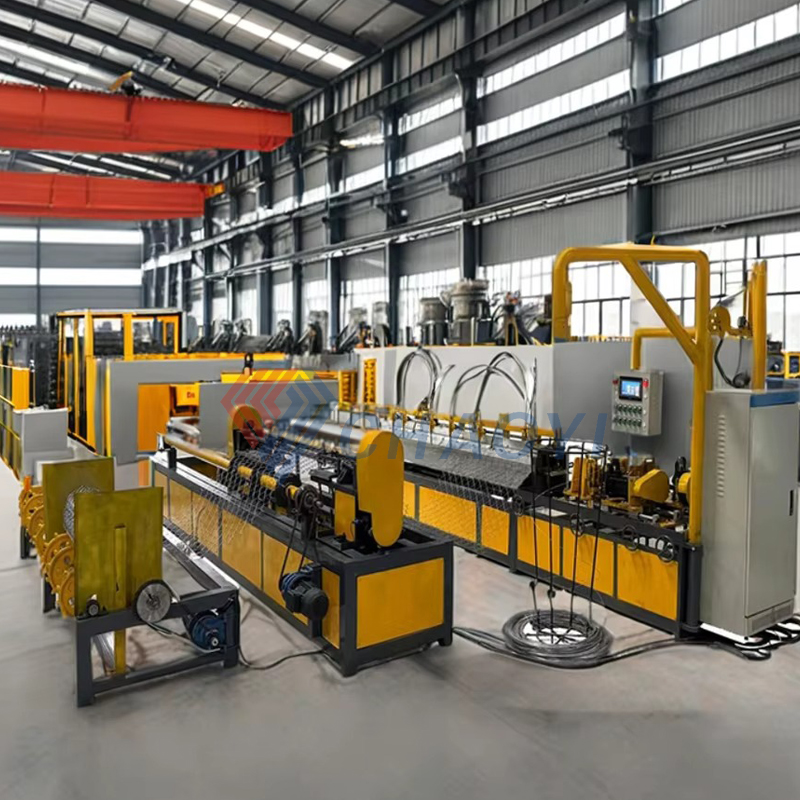

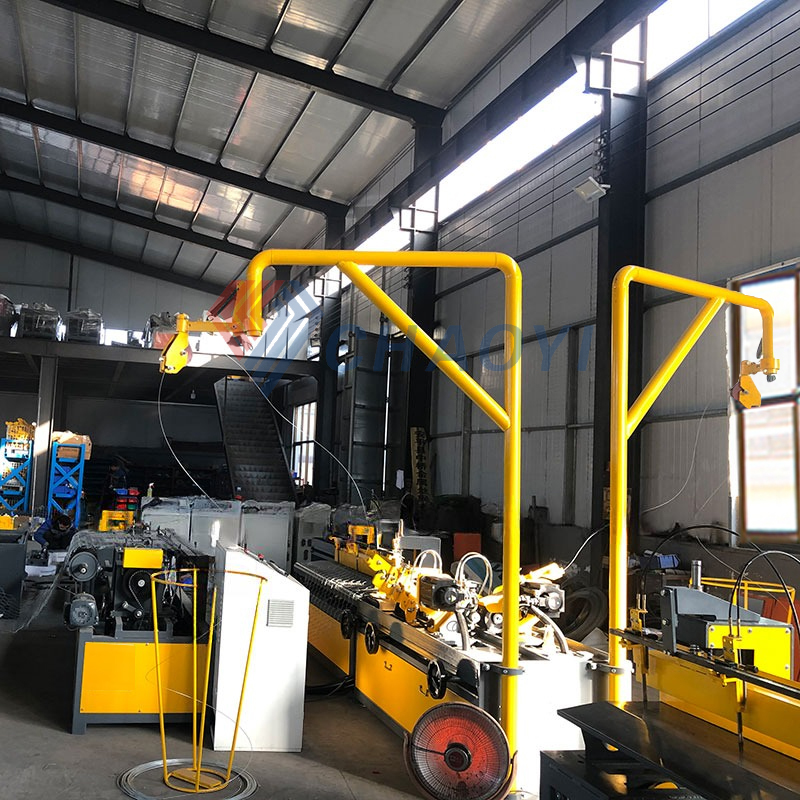

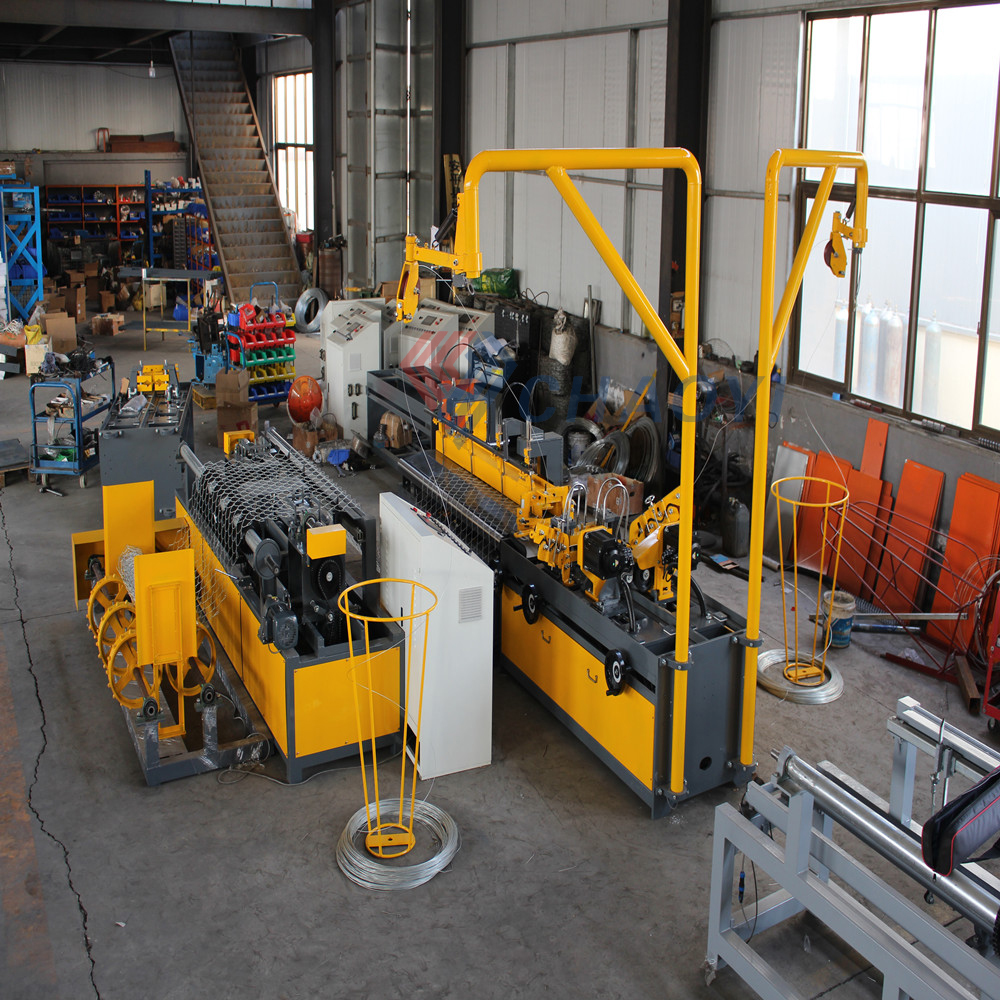

Full Automatic Double Wire Chain Link Fence Machine
◆ The ultimate tool for seamless fence production. With precise and efficient operation, this advanced machine guarantees high-quality chain link fences with ease. Elevate your fence manufacturing capabilities with this top-of-the-line equipment.
◆ The machine is reasonable designed, with double wire or single wire weaving, automatic edging,curving,cutting and rolling.
◆ It is easy to operate, with PLC control ,which is the most advanced technology.
◆ The chain link fence mainly used for minefield support, mine safeguard,railway, express way, fence and Playground.
Technical Parameter
Model
CY2000
CY2500
CY3000
Mesh opening Size
（mm）
30x30-100x100
Mesh Height
(mm)
2000
2500
3000
Wire Diameter
(mm)
G 1,50-3,20
PVC 2,80-4,50
G 1,50-3,20
PVC 2,80-4,50
G 1,50-3,20
PVC 2,80-4,50
Capacity ( ㎡/h)
40-260
40-260
40-260
Power (kw)
7.5
7.5
7.5
Bending Edge
Knuckle-knuckle (Standard)
Knuckle-twisted (Optional)
Twisted-twisted (Optional)
Knuckle-knuckle (Standard)
Knuckle-twisted (Optional)
Twisted-twisted (Optional)
Knuckle-knuckle(Standard)
Knuckle-twisted (Optional)
Twisted-twisted (Optional)
Operator
1Person
1Person
1Person
Weight (kg)
3000
3100
3200
Space L*W
（m* m）
5*5
5*5.5
5*6
Control System
Mitsubishi PLC automatic controller
Voltage
According to your need
Product Description

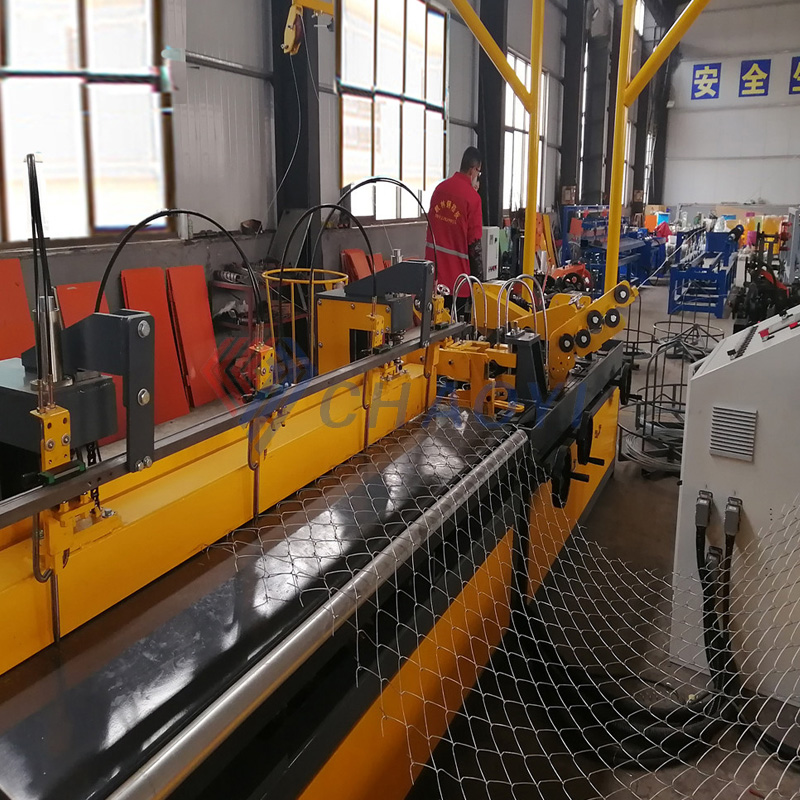

● The wire is taken in from the payoff stand and passed through the dies where the diamond size takes place. Different gap sized. After passing from the die the diamond pattern wire is automatically throw in the winding shaft and automatic weaving in chain link mesh as per your specific length. After weaving machine will cut that wire automatically and move for the next link
● The mesh will go on to the next step----Twisted or Kunckle the edge according to your requirement. (We will give you both twisted and Kunckle mold, then you can install the right one)
● The last step is roller or compact roll according to your requirement. (You can choose roller parts or compact part as your requirement; we will give you only one part)
Product Details

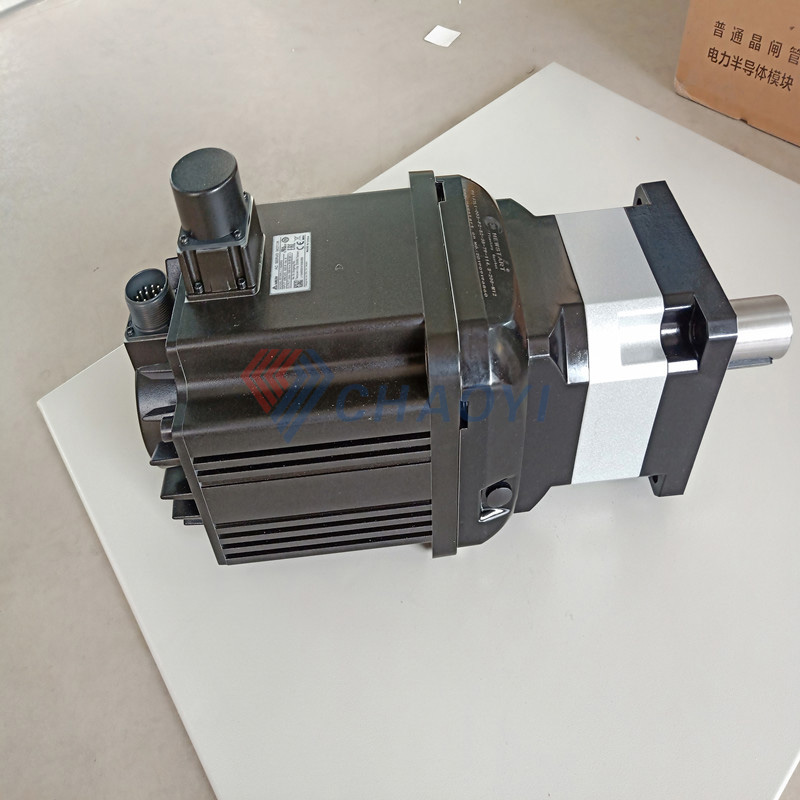

Servo motor
We have Delta, Panasonics, Housine, Siemens for your choose.

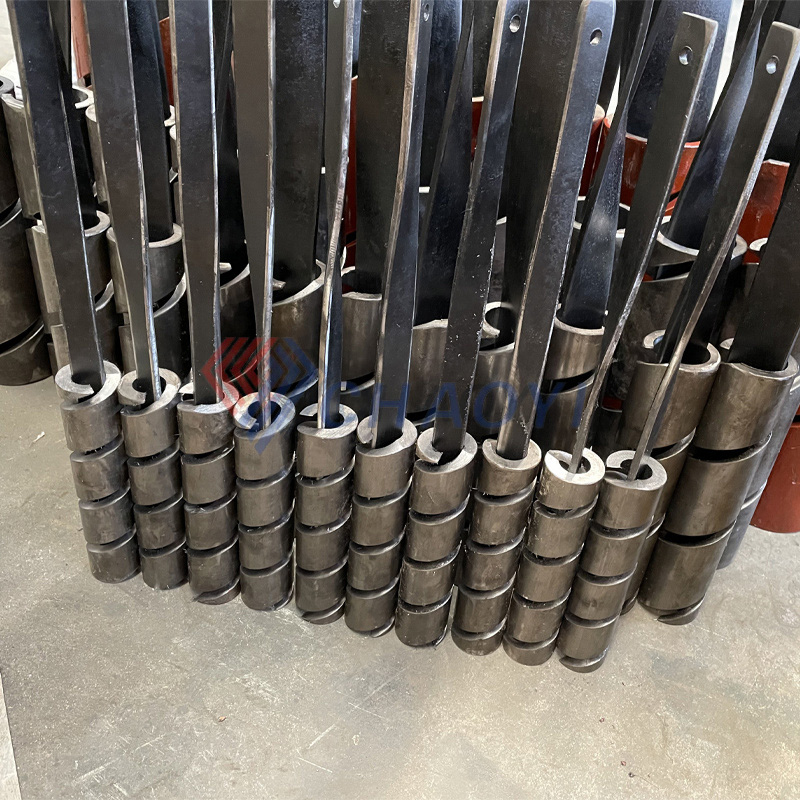

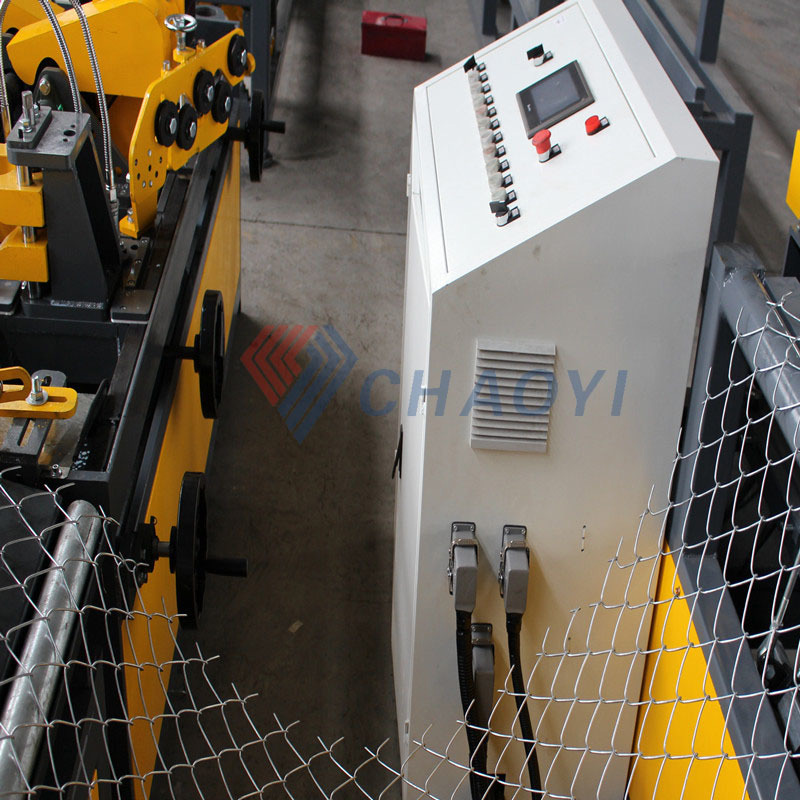

Attached with 3 sets of molds free. PLC Touch Screen Controller
The electric cabinet is equipped with remote control, which can be operated when the workers are not near.

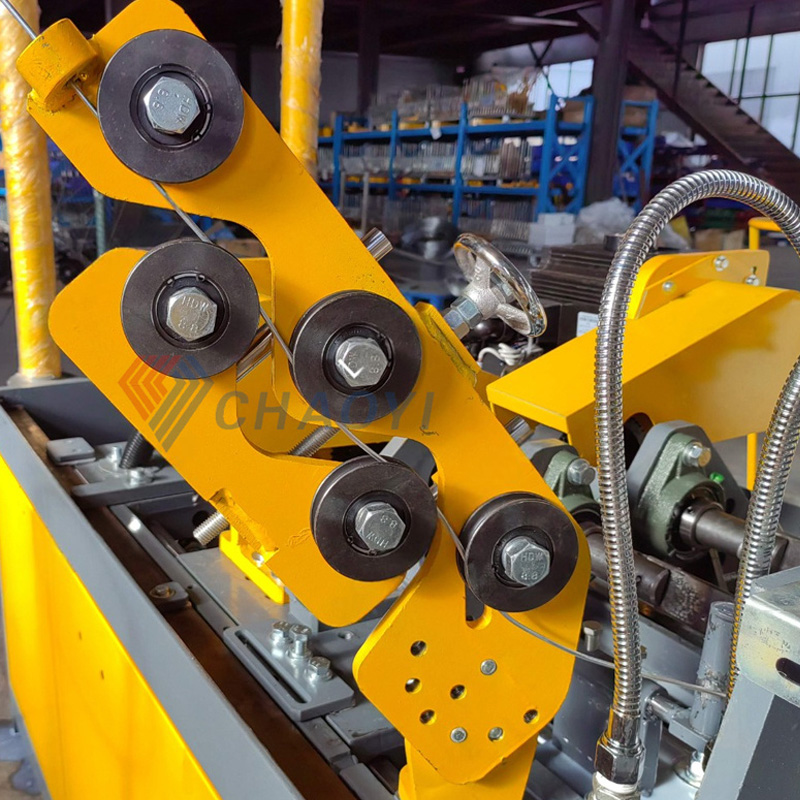

Double wire input Straighter wheel

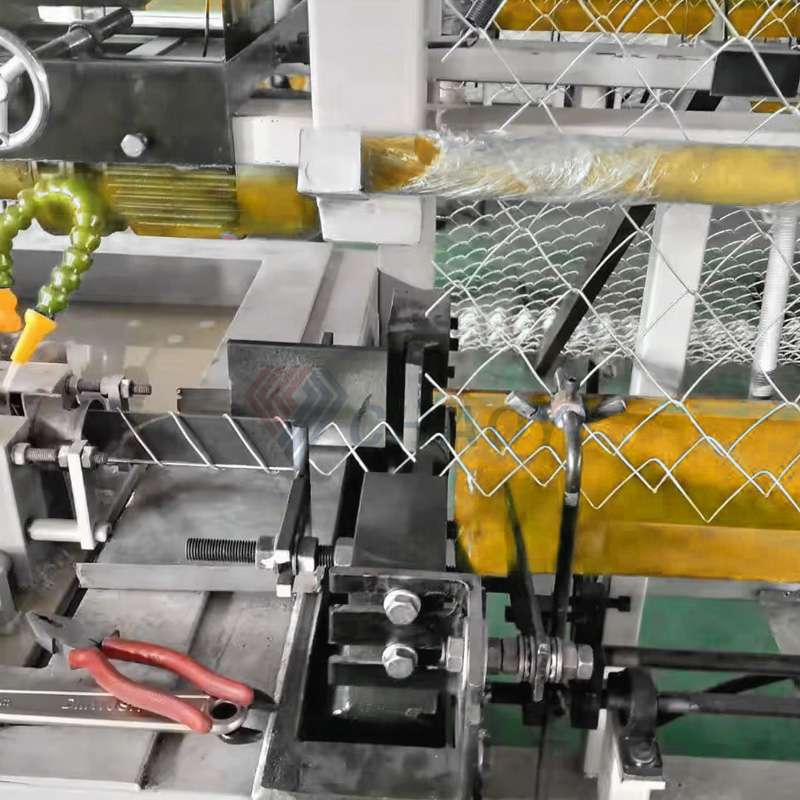

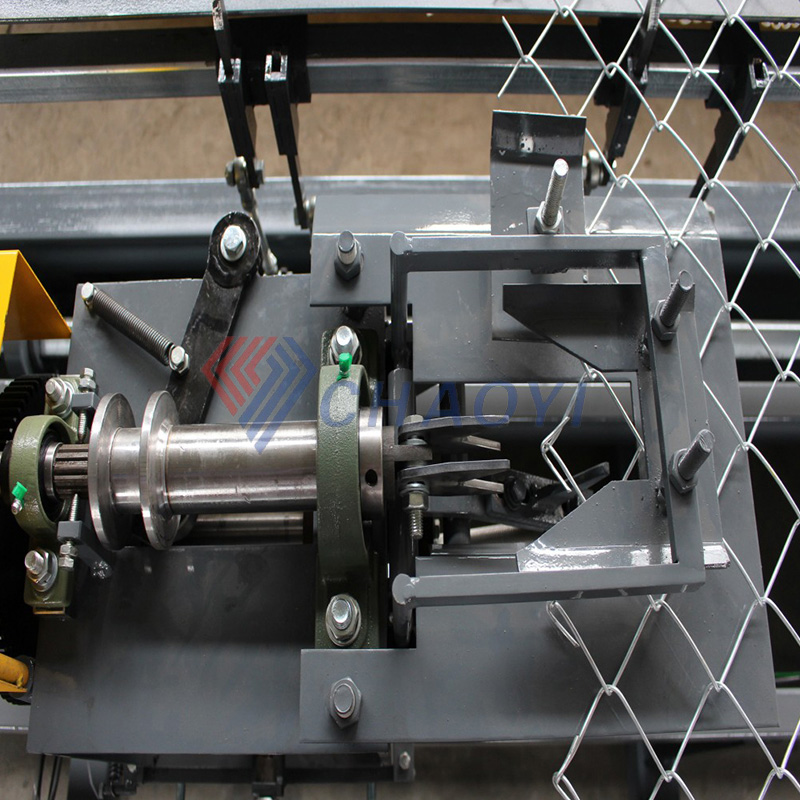

Improved straighter wheel, up and down, left and right can be adjusted arbitrarily.Weaving machine part
Better positioning,under the noise

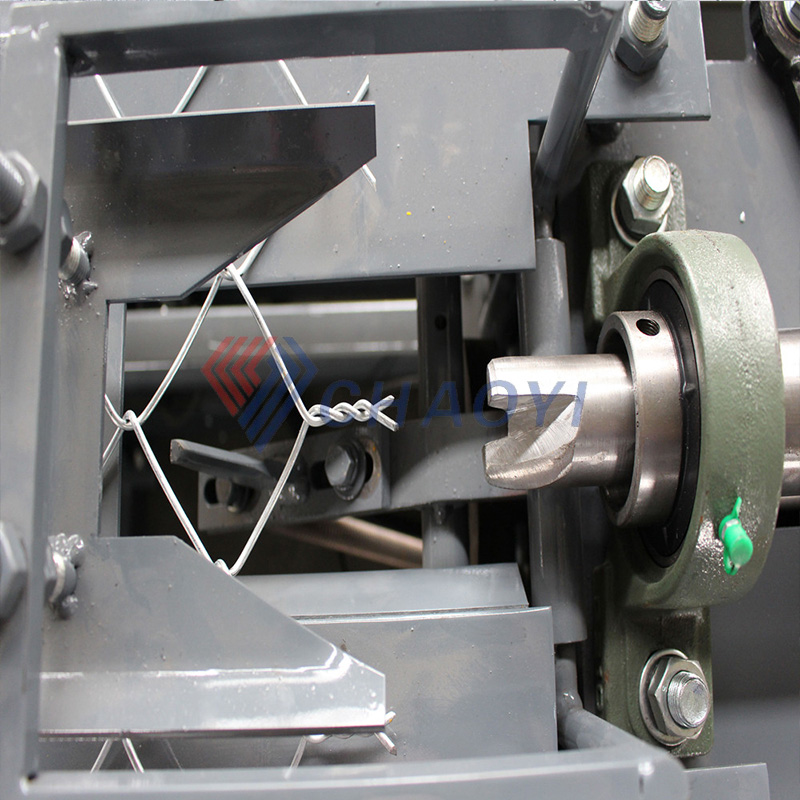

As to Edge finish ,you can bro both knuckle and Twister
three kinds of mesh roll edge
Knuckle -Knuckle
Twisted -Twisted
Twisted - Knuckle

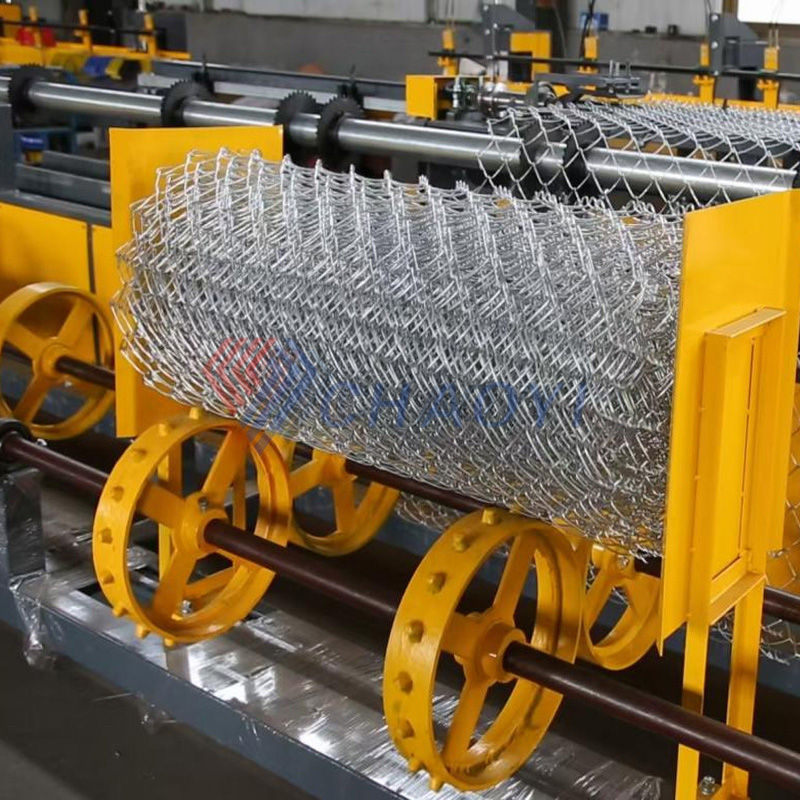

Fence Rolling Agency
Automatic fence rolling, as the picture.
